C950-52435-2 - Craftsman 22" Snow Thrower, Canada (2005) (Sears) Electric Starter Parts Diagram

22" Snow Thrower, Canada

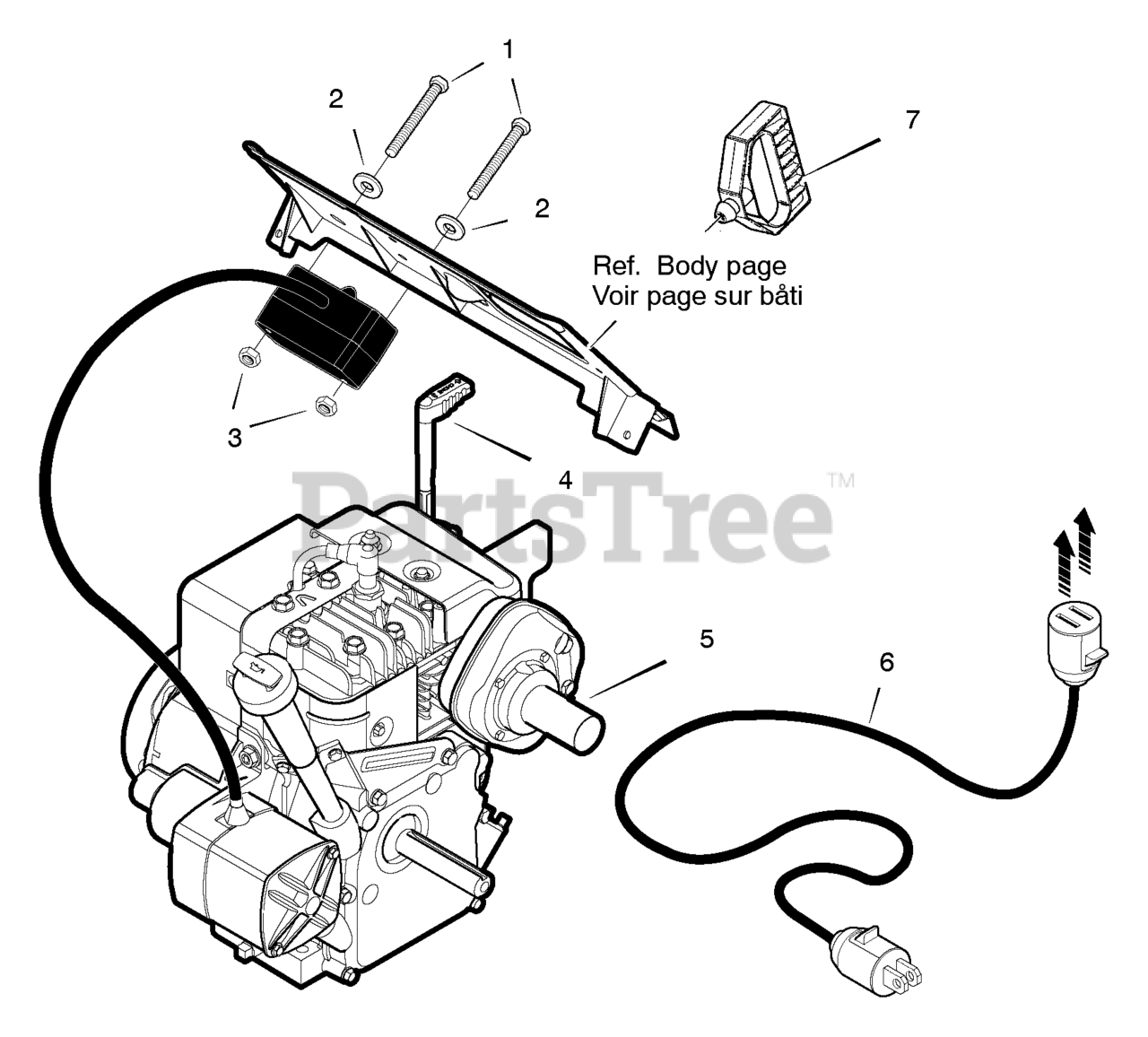

Electric Starter Parts Diagram

  • Title
1

Murray 311633MA

Screw, No. 8-32 x 3.00

$3.99

$

Usually ships in 2-12 days

0

2

Murray 414106

Washer
(Superseded to 414106MA)

$3.49

$

Usually ships in 2-12 days

0

3

Murray 271163MA

Nut, Keps No. 8

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1502179

Lever, Choke

$

$

Not available

5-1

Murray 1502002

Muffler

$

$

Not available

5-2

Murray 1502003

Gasket, Muffler

$

$

Not available

5-3

Murray 1502004

Bolt, Muffler

$

$

Not available

5-4

Murray 71060

Washer, Split Lock
(Superseded to 1501670MA)

$

$

Not available

5-5

Murray 71037

Nut, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5-6

Murray 001X81MA

Bolt, Hex 5/16-18

$3.49

$

In Stock, only 2 left!

0

6

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 3 left!

0

7

Murray 1502022

Grip, Mitten
(Superseded to 699334)

$13.99

$

In Stock, only 1 left!

0
