C950-52435-2 - Craftsman 22" Snow Thrower, Canada (2005) (Sears) Auger Housing Parts Diagram

22" Snow Thrower, Canada

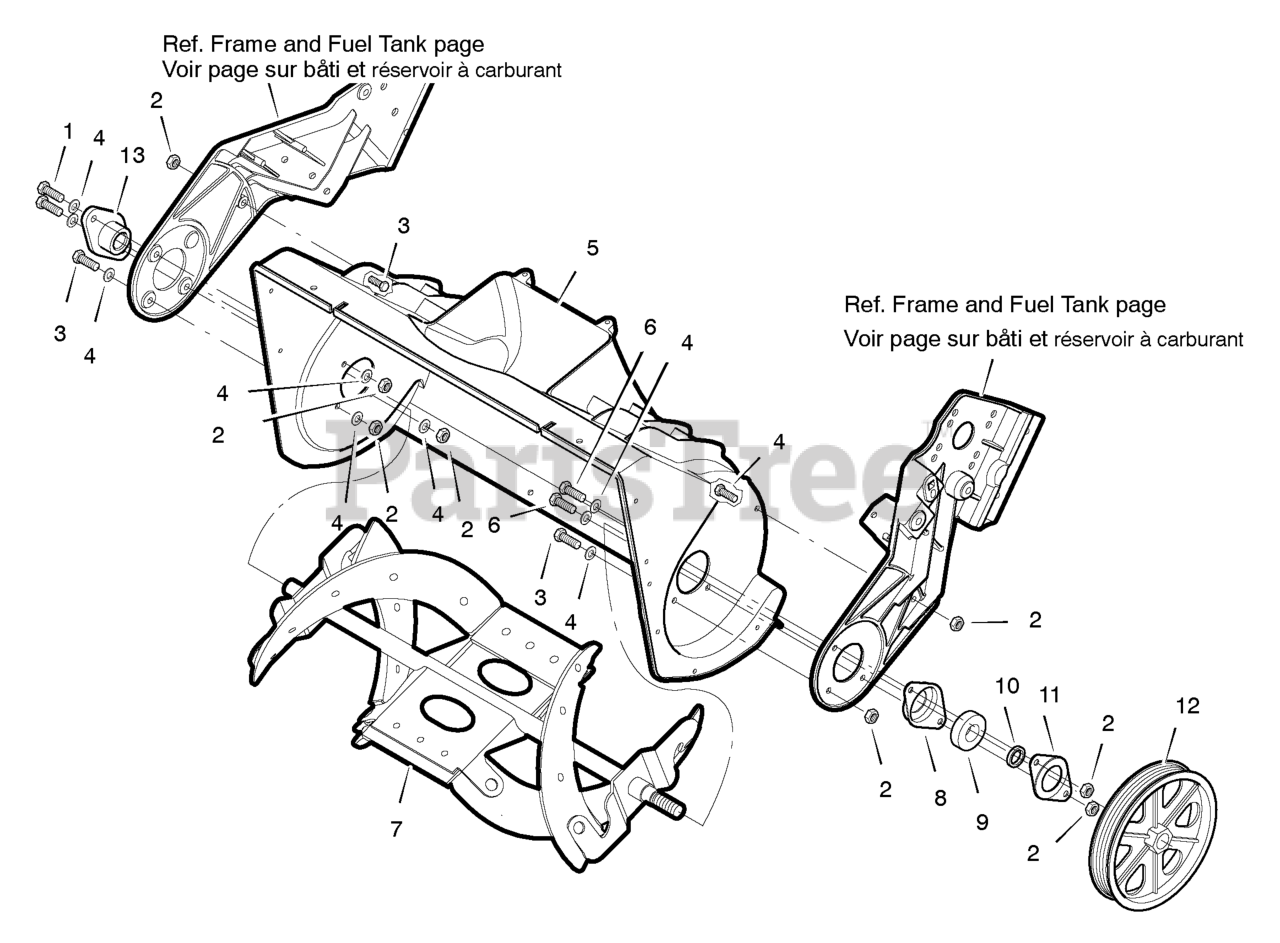

Auger Housing Parts Diagram

  • Title
1

Murray 710263

Screw, 1/4-20 x 1.00
(Superseded to 710263MA)

$3.99

$

Usually ships in 2-12 days

0

2

Murray 73826

Nut, Hex 1/4-20

$4.99

$

In Stock, Qty 20+

0

3

Murray 302628MA

Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 7

0

4

Murray 71067

Washer, Flat
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 1501852

Housing Assembly, Auger

$186.99

$

Usually ships in 2-12 days

0

6

Murray 579052

Screw, 1/4-20 x .63
(Superseded to 579052MA)

$9.99

$

In Stock, only 1 left!

0

7

Murray 1501981MA

Auger Assembly, 22"

$256.99

$

Usually ships in 2-12 days

0

8

Murray 580251MA

Retainer, Bearing

$16.99

$

Usually ships in 2-12 days

0

9

Murray 43846

Bearing
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Murray 578101MA

Sleeve, Spacer

$4.99

$

Usually ships in 2-12 days

0

11

Murray 334287MA

Plate, Bearing Retainer

$7.49

$

In Stock, only 1 left!

0

12

Murray 333446MA

Pulley, Auger Drive V6

$22.99

$

Usually ships in 2-12 days

0

13

Murray 577023MA

Bearing, Flange

$5.99

$

In Stock, only 3 left!

0
