C950-52411-0 - Craftsman 29" Snow Thrower, Canada (2004) (Sears) Discharge Chute Parts Diagram

29" Snow Thrower, Canada

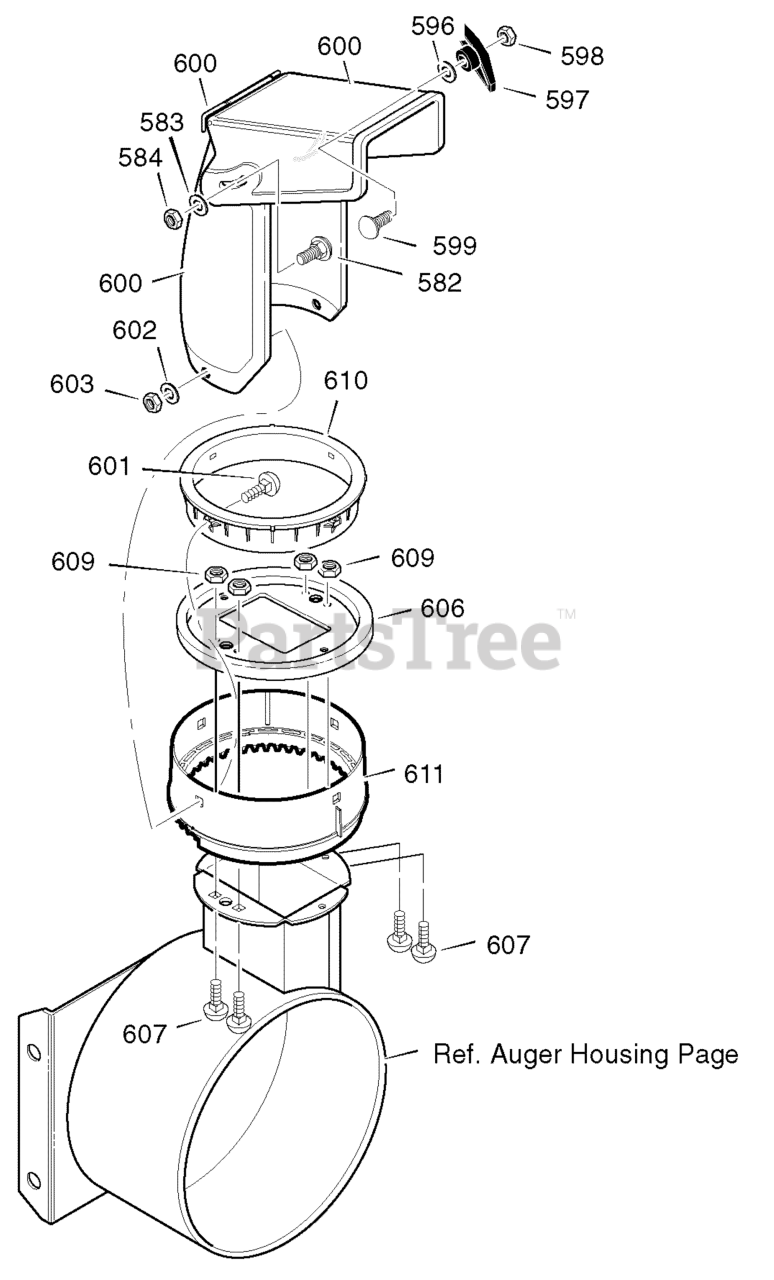

Discharge Chute Parts Diagram

  • Title
582

Murray 2X100

BOLT, 5/16-18 X1.00
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

583

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

584

Murray 71038

NUT, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

596

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

597

Murray 57171

KNOB, T 3.00
(Superseded to 1501260MA)

$7.99

$

In Stock, Qty 8

0

598

Murray 15X144

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

599

Murray 002X97

BOLT, 5/16-18 X1.50
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

600

Murray 762222

CHUTE ASSEMBLY

$51.99

$

In Stock, Qty 17

0

601

Murray 2X100

BOLT, 5/16-18X1.00
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

603

Murray 71038

NUT, 5/16-18 HEXNYL
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 1501932 YZ

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101

SCREW, 1/4-20 X 0.75

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145

NUT, 1/4-20 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227

RETAINER RING INNER
(Superseded to 337227MA)

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282

RETAINER RING OUTER
(Superseded to 1501282MA)

$26.99

$

In Stock, only 2 left!

0
