C950-52410-0 (1696556-00) - Craftsman 24" Snow Thrower, Canada (2015) Handles & Controls Group Parts Diagram

24" Snow Thrower, Canada

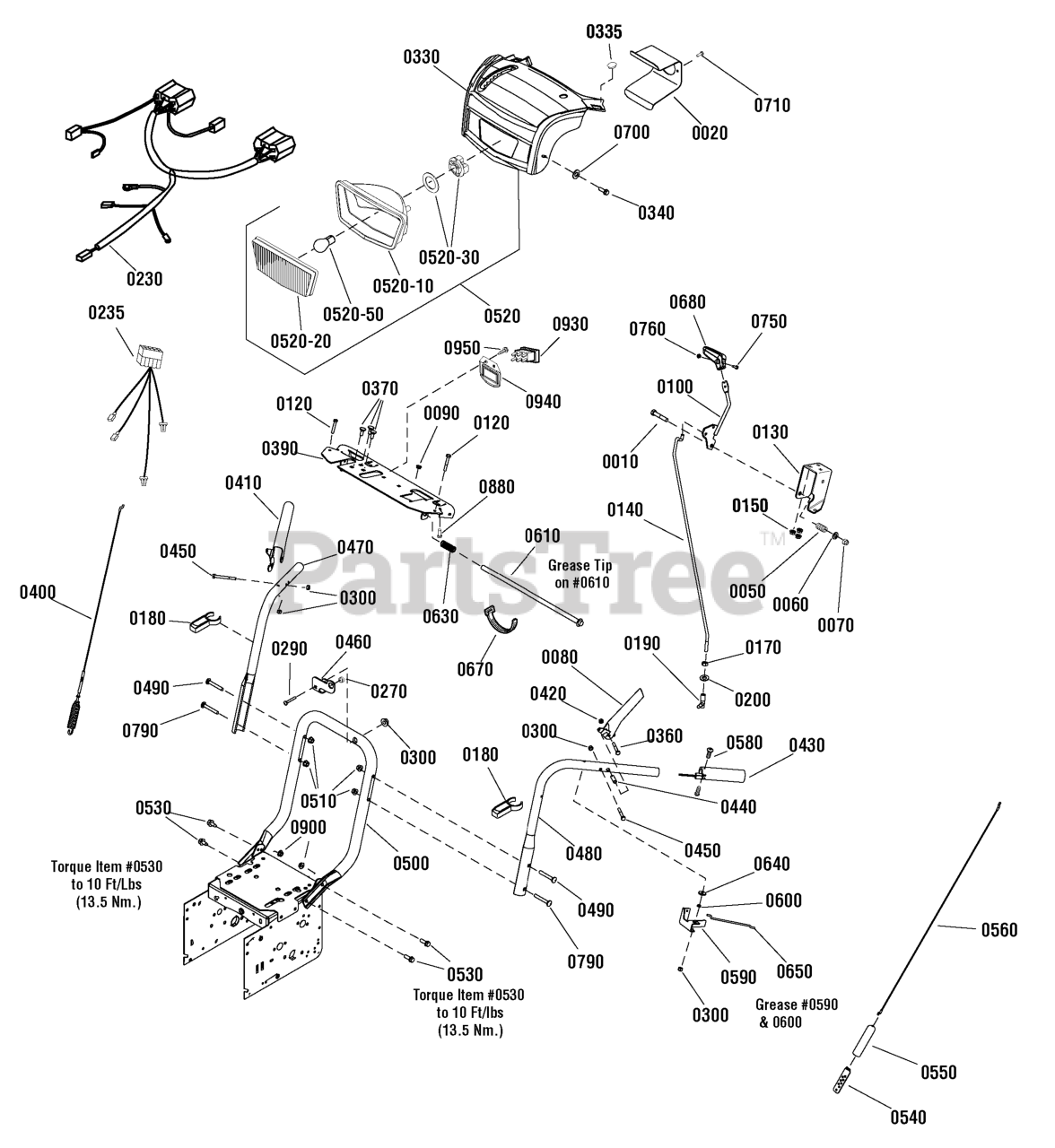

Handles & Controls Group Parts Diagram

  • Title

0010

Murray 703589

CAPSCREW, Hex Head, 3/8-16 x 2, GR5

$4.49

$

In Stock, only 1 left!

0

0020

Murray 1736305AYP

BRACKET, Light Mount

$31.99

$

Usually ships in 2-12 days

0

0050

Murray 50786MA

SPRING, 3/4"

$5.49

$

Usually ships in 2-12 days

0

0060

Murray 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

0070

Murray 703117

NUT, Hex Lock, ESNA LIGHT, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0080

Murray 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0090

Murray 1667588SM

BUSHING, 3/8 ID x 7/16 OD x 2

$5.99

$

In Stock, Qty 20+

0

0100

Murray 1736836YP

SPEED LEVER
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0120

Murray 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0130

Murray 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Murray 1734354SM

ROD, 25"
(Superseded to 704085)

$22.99

$

Usually ships in 2-12 days

0

0150

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0170

Murray 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0180

Murray 1739510YP

BRACKET, Lower Mounting

$14.99

$

Usually ships in 2-12 days

0

0190

Murray 1739290YP

BALLJOINT, Quick Release
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0200

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0230

Murray 1738286YP

WIRING HARNESS

$25.99

$

Usually ships in 2-12 days

0

0235

Murray 1752164YP

HARNESS, Heated Hand Grip, ON/OFF

$43.99

$

Usually ships in 2-12 days

0

0270

Murray 1501874MA

BUSHING, Chute Crank

$4.99

$

In Stock, only 1 left!

0

0290

Murray 1931323SM

BOLT, Carriage, Short Neck, 1/4-20 x 2, G5

$4.49

$

Usually ships in 2-12 days

0

0300

Murray 703232

NUT, Hex Lock, ESNA LIGHT, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1757541YP

DASH ASSEMBLY, Light

$153.99

$

Usually ships in 2-12 days

0

0335

Murray 1752273YP

PLUG

$3.99

$

Usually ships in 2-12 days

0

0340

Murray 1960001SM

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0360

Murray 1750554YP

BOLT, Shoulder, 1/4 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

0370

Murray 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0390

Murray 1739500AYP

SUPPORT, Dash

$51.99

$

Usually ships in 2-12 days

0

0400

Murray 1737544YP

CABLE, Auger Drive
(Superseded to 703221)

$24.99

$

In Stock, only 4 left!

0

0410

Murray 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Murray 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0430

Murray 1738124YP

HAND GRIP, Heated 1" Dia. x 5-1/4 Lg
(Superseded to 770002)

$86.99

$

Usually ships in 2-12 days

0

0440

Murray 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0450

Murray 703045

BOLT, Shoulder, 1/4-20 x 1 3/4

$3.49

$

Usually ships in 2-12 days

0

0460

Murray 1735589YP

BRACKET, Rod Support

$9.49

$

Usually ships in 2-12 days

0

0470

Murray 1734587ASM

HANDLE, Upper, RH

$51.99

$

Usually ships in 2-12 days

0

0480

Murray 1734586ASM

HANDLE, Upper, LH

$55.99

$

In Stock, only 1 left!

0

0490

Murray 1960273SM

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, GR5
(Superseded to 704421)

$5.49

$

In Stock, only 1 left!

0

0500

Murray 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0520

Murray 1736208YP

HEADLIGHT ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

0520-10

DEFLECTOR, Light

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-20

LENS

Note: (Included with Ref. No. 0520)

$

$

Not available

0520-30

Murray 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included with Ref. No. 0520)

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Light, 12V 15W, 1156

Note: (Included with Ref. No. 0520)

$

$

Not available

0530

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, GR5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0540

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0550

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

Usually ships in 2-12 days

0

0560

Murray 1501124MA

CABLE, Front Drive
(Superseded to 762259MA)

$12.99

$

In Stock, only 2 left!

0

0580

Murray 703044

SCREW, Self Driving, #6-20X0.380

$4.49

$

Usually ships in 2-12 days

0

0590

Murray 1733505ASM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Murray 1733095SM

SPACER, 1/4 ID x 3/8 OD x 1/8"

$4.49

$

Usually ships in 2-12 days

0

0610

Murray 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Murray 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0640

Murray 1960353SM

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

0650

Murray 1736360YP

ROD, Hold Down, 5-1/2"

$11.99

$

Usually ships in 2-12 days

0

0670

Murray 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0680

Murray 1733192SM

KNOB, Slot Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Murray 1921319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0710

Murray 316042MA

SCREW, Hex Washer Head, #10-HL x 5/8

$4.49

$

Usually ships in 2-12 days

0

0750

Murray 1960589SM

SCREW, Round Head Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Murray 7091290SM

NUT, Hex Lock, Nylon, #10C
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0790

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0880

Murray 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0900

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0930

Murray 1752242YP

SWITCH, Heated Hand Grip

$36.99

$

In Stock, only 1 left!

0

0940

Murray 1739861BMYP

BRACKET, Switch
(Superseded to 1739861AYP)

$19.99

$

Usually ships in 2-12 days

0

0950

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0
