C950-52313-1 - Craftsman 33" Snow Thrower, Canada (2004) (Sears) Remote Control Parts Diagram

33" Snow Thrower, Canada

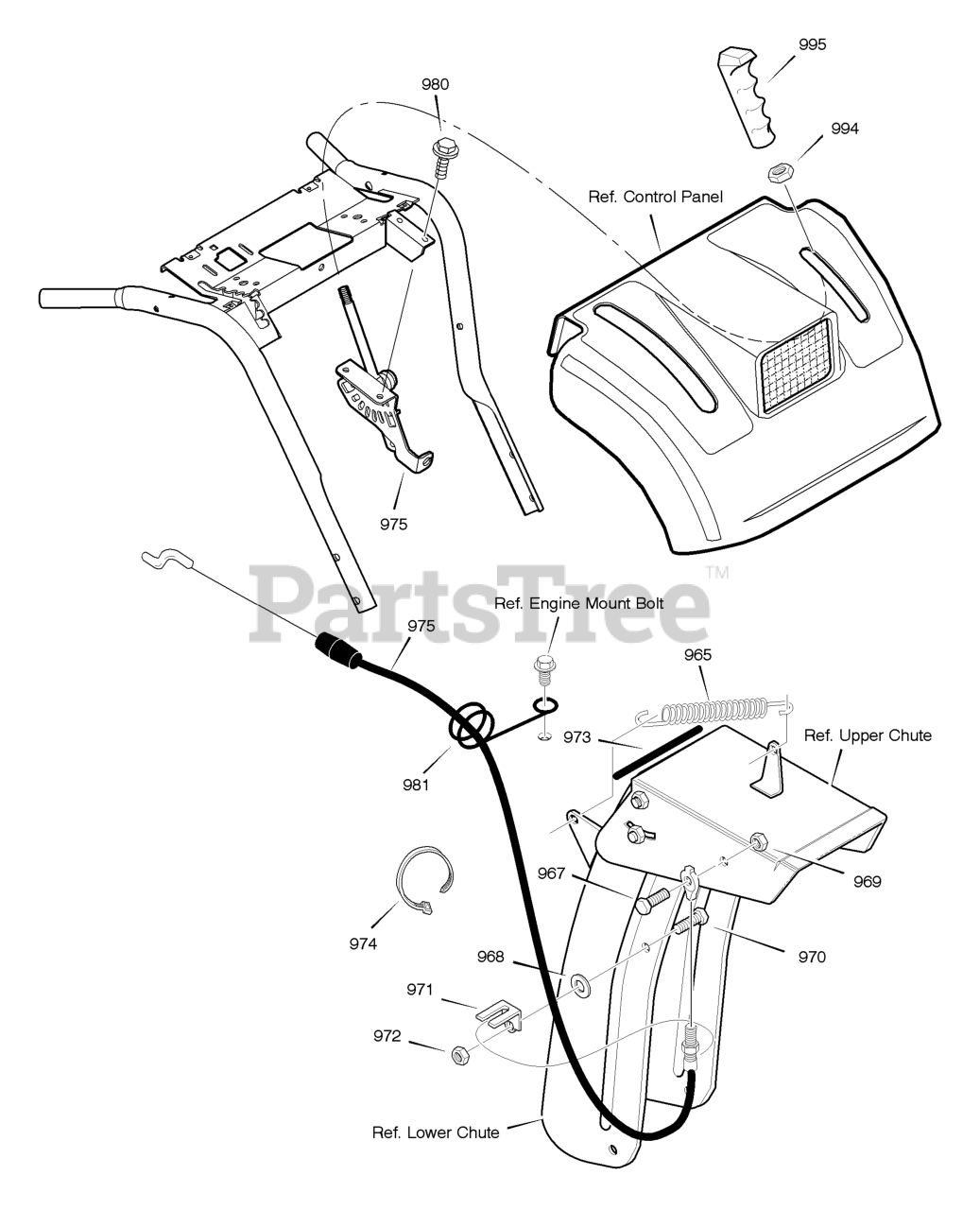

Remote Control Parts Diagram

  • Title
965

Murray 318468MA

TENSION SPRING

$8.49

$

In Stock, only 1 left!

0

967

Murray 310088MA

BOLT, SHOULDER

$4.99

$

Usually ships in 2-12 days

0

968

Murray 73787MA

FLATWASHER

$6.99

$

Usually ships in 2-12 days

0

969

$4.99

$

In Stock, Qty 13

0

970

Murray 313676

SCREW, 5/16-18 x 0.75

$1.49

$

Usually ships in 2-12 days

0

971

Murray 306447 YZ

BRACKET, CABLE CHUTE

$15.99

$

Usually ships in 2-12 days

0

972

Murray 71391

NUT, 5/16-18
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

973

Murray 1001221MA

TRIM STRIP, BLACK

$5.99

$

Usually ships in 2-12 days

0

974

Murray 760113MA

TIE, CABLE

$5.49

$

Usually ships in 2-12 days

0

975

Murray 1501393MA

CABLE, CHUTE DEFLECTOR

$

$

Not available

980

$1.49

$

Usually ships in 2-12 days

0

981

Murray 780220MA

WIRE FORM, REMOTE CHUTE CABLE

$6.99

$

Usually ships in 2-12 days

0

994

Murray 71045

NUT, 3/8-16

$

$

Not available

995

Murray 306689MA

KNOB, SHIFT

$14.99

$

Usually ships in 2-12 days

0
