C8000 (5563-0) - Generac 8,000 Watt Portable Generator Control Panel (Manual Start) Parts Diagram

8,000 Watt Portable Generator

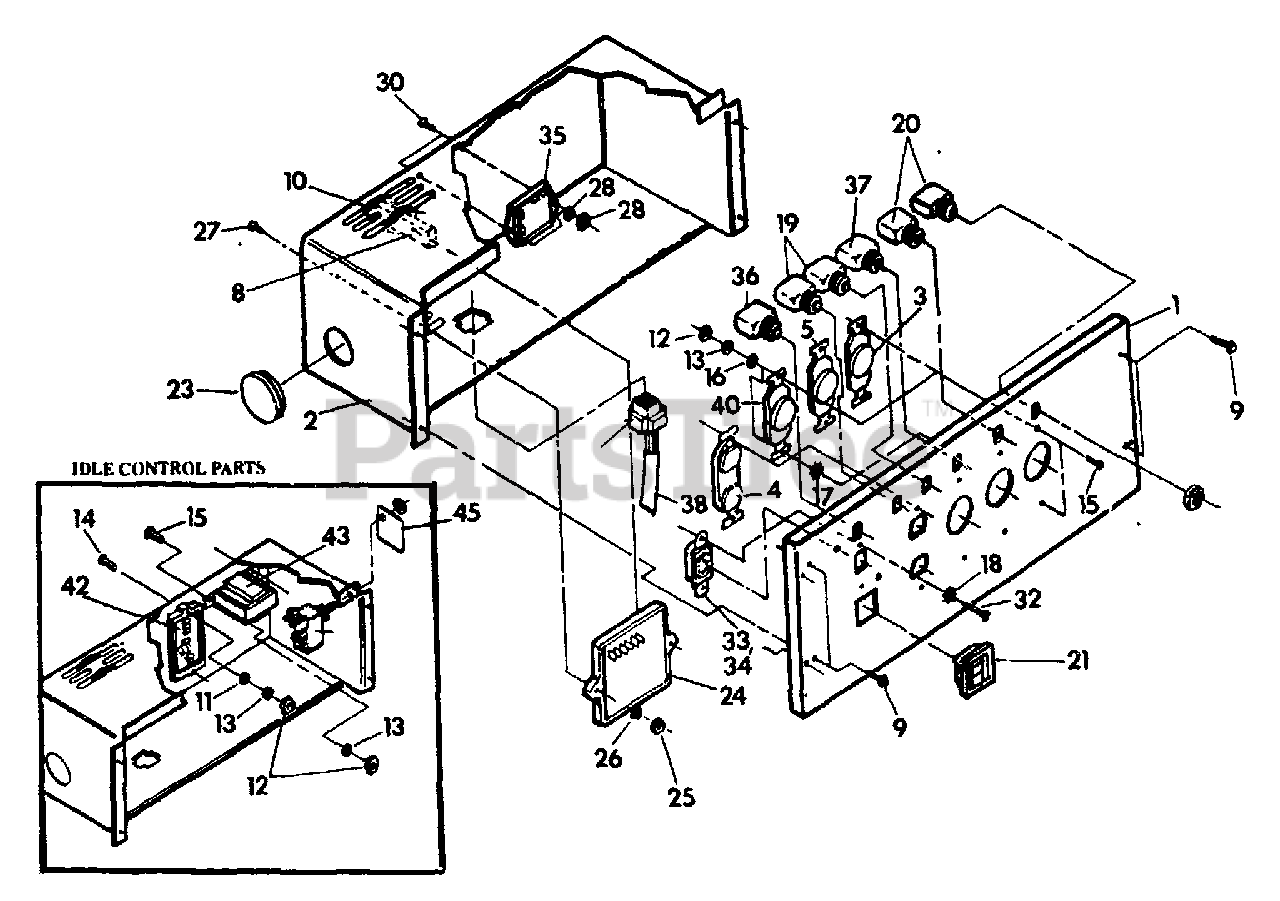

Control Panel (Manual Start) Parts Diagram

  • Title

1

Briggs & Stratton 78368

8KW Panel Silkscreen

$

$

Currently unavailable

2

Briggs & Stratton 77315

Control Panel Cover

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240 V. 30 amp Twistlock Outlet

$

$

Not available

4

Briggs & Stratton 63025

120 V., 15 amp Duplex Outlet
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

120 V., 30 amp Twistlock Outlet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

Connector

$

$

Currently unavailable

8

Briggs & Stratton 77244

Field Boost Assembly

$

$

Currently unavailable

9

Briggs & Stratton 74191

240 V., 50 amp Outlet
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 29333A

Tie-Wrap
(Superseded to 29333AGS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 43180

Flat Washer
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

13

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

14

Briggs & Stratton 80077

M4-0.7 x 20mm Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

16

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

No. 8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23364

No. 6 Shakeproof Washer
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 75207D

15 amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

30 amp Circuit Breaker

$

$

Not available

21

Briggs & Stratton 66817

Engine Control Switch
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 58221

1-3/4" dia. Hole Plug

$

$

Not available

24

Briggs & Stratton 74074

A-c Voltage Regulator

$

$

Currently unavailable

25

Briggs & Stratton 22158

No. 10-32 Hex Nut
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 22152

No. 10 Lock Washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 33534

No. 10-32 x 1-1/8" Screw

$

$

Currently unavailable

28

Briggs & Stratton 22188

No. 6-32 Hex Nut

$

$

Currently unavailable

29

Briggs & Stratton 22155

No. 6 Lock Washer
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 36902

No. 6-32 x 1/2" Screw
(Superseded to 36902GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 43181

M3-0.5 x 10mm Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 66821

Battery Charge Outlet
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 66822

Outlet Retainer
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 77314

Thermal Relay

$

$

Not available

36

Briggs & Stratton 75207B

10 amp Circuit Breaker
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 75207

20 amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 14

0

38

Briggs & Stratton 22661Y

650mm Sleeving

$

$

Currently unavailable

40

Briggs & Stratton 74190

120 V., 20 amp Twistlock Outlet

$

$

Not available

42

Briggs & Stratton 67632C

Idle Control Circuit Board

$

$

Not available

43

Briggs & Stratton 74769

Idle Control Transformer

$

$

Currently unavailable

44

Briggs & Stratton 55869

Toggle Switch

$

$

Currently unavailable

45

Briggs & Stratton 76256

Idle Control Decal
(Superseded to 76256GS)

$727.99

$

Usually ships in 2-12 days

0
