C5012 (5561-0) - Generac 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

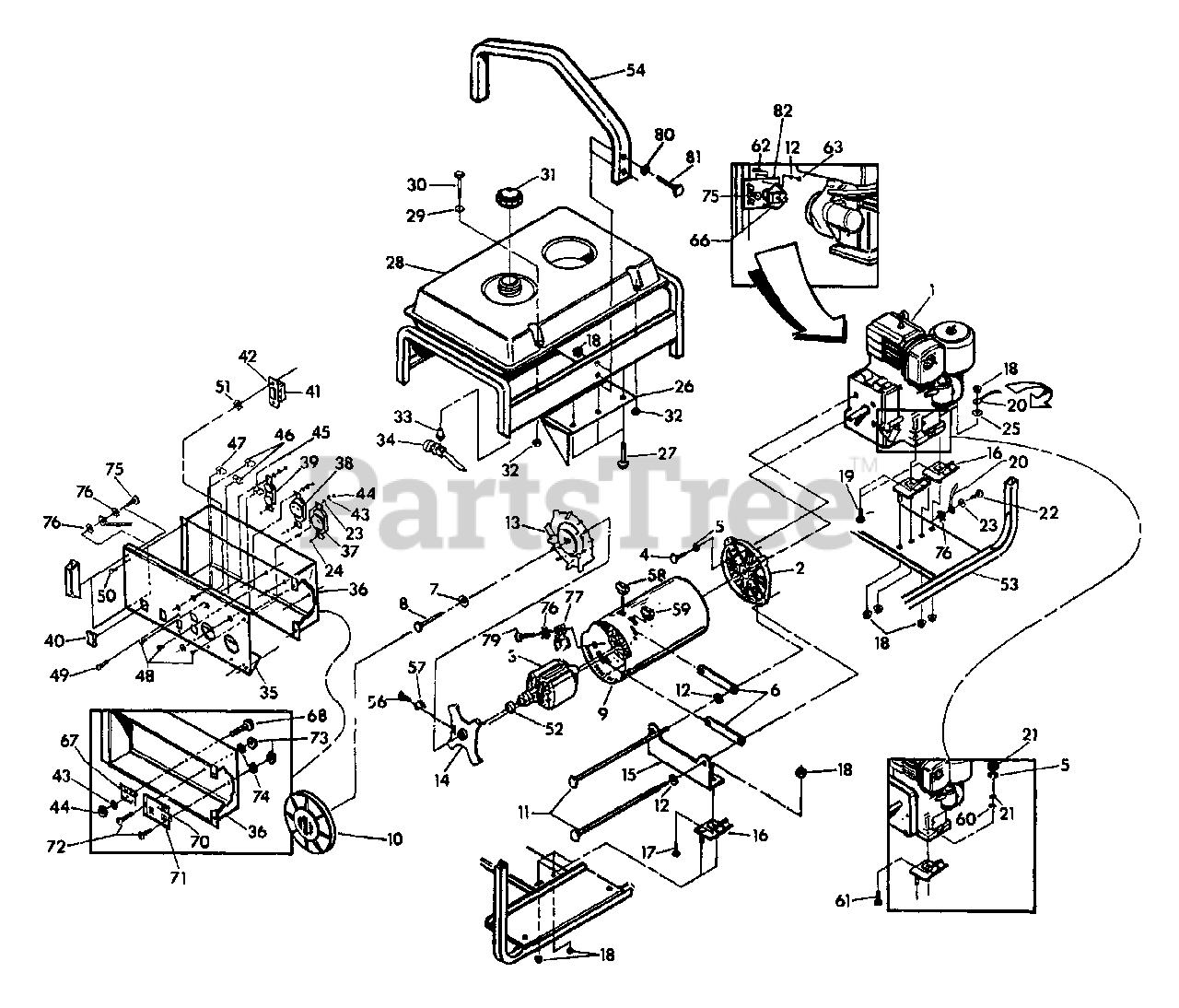

Generator Parts Diagram

  • Title

1

Briggs & Stratton 79557

ENG. BRIGGS & STRATTON 11HP.

$

$

Currently unavailable

1

Briggs & Stratton 78849

ENG. B & S 11HP. ELECT. START

$

$

Currently unavailable

2

Briggs & Stratton 43873

ADAPTOR HOUSING-LONG

$

$

Currently unavailable

3

Briggs & Stratton 68794

ROTOR ASSEMBLY

$

$

Currently unavailable

4

Briggs & Stratton 22336

SCR., HEX HD.-5/16"-24 x 3/4"

$

$

Not available

5

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 44338

STATOR BOLT BAR

$

$

Currently unavailable

7

Briggs & Stratton 50190

FLAT WASHER SPECIAL
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 25254

ROTOR BOLT-5/16-24 x 9.87
(Superseded to 5025254)

$2.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 79805

STATOR ASSEMBLY-C5000

$

$

Not available

9

Briggs & Stratton 79805A

STATOR ASSEM.-C5000 ELE. START

$

$

Currently unavailable

10

Briggs & Stratton 78246

COVER CAN END PLASTIC
(Superseded to 7078246AYP)

$139.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 44395B

STATOR BOLT 11.87 LONG

$

$

Currently unavailable

12

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 44331

ALT. FAN PLASTIC

$

$

Not available

14

Briggs & Stratton 44943

BEARING CARRING PLATE

$

$

Currently unavailable

15

Briggs & Stratton 70634A

REAR ALT. SUPPORT-2.22 LONG

$

$

Currently unavailable

16

Briggs & Stratton 70642

VIBRATION MOUNT-45ø
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 70644

PPHMS.-M8-1.25 x 20MM
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 52853

FLANGE NUT-LOCK-M8-1.25

$

$

Currently unavailable

18

Briggs & Stratton 52858

FLANGE NUT-LOCK-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 76222

PPHMS-M8-1.25 x 40MM
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 10953621

GROUND WIRE-4" LONG

$

$

Currently unavailable

21

Briggs & Stratton 22259

HEX NUT-5/16-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 24911

SCREW(TAPTITE)
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 38150

FLAT WASHER #8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

LOCK WASHER (SERRATED)-NO. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 27482

WASHER, SHAKE PROOF-5/16"
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79803

HEAT SHIELD-5KW
(Superseded to 7079803YP)

$14.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 56892

10-24 x 3/8 LONG CRIMPTITE
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 77374

GAS TANK-PLASTIC 5 GAL.

$

$

Currently unavailable

29

Briggs & Stratton 77830

WASHER, SPECIAL-BLACK

$

$

Currently unavailable

30

Briggs & Stratton 79816

CAPSCR., HEX HD.-M6 x 35MM BLACK

$

$

Not available

31

Briggs & Stratton 78824

CAP, FUEL TANK

$

$

Currently unavailable

32

Briggs & Stratton 77395

NUT, HEX LOCK-M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 78299

BUSHING, PLASTIC TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

34

Briggs & Stratton 78298

VALVE, PLASTIC TANK
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 79800

CONTROL PANEL PLAIN

$

$

Currently unavailable

35

Briggs & Stratton 79809

PANELBATTERY CHARGE

$

$

Currently unavailable

36

Briggs & Stratton 79813

CONTROL PANEL-BLACK
(Superseded to 7046555YP)

$21.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 68868

OUTLET-120VOLT 30AMP. TWIST LOCK
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

OUTLET 120/240 TWISTLOCK
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68795

OUTLET 120VOLT 20AMP. DUPLEX

$

$

Not available

40

Briggs & Stratton 77263

ENGINE RUN/STOP SWITCH

$

$

Not available

41

Briggs & Stratton 68821

OUTLET BATTERY CHARGE

$

$

Currently unavailable

42

Briggs & Stratton 68822

OUTLET, RETAINER

$

$

Currently unavailable

43

Briggs & Stratton 22264

LOCK WASHER-#8

$

$

Not available

44

Briggs & Stratton 51715

NUT, HEX-M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

75207A

CIRCUIT BREAKER-30AMP.

$

$

Not available

46

Briggs & Stratton 75207

CIRCUIT BREAKER-20AMP.
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

47

Briggs & Stratton 75207B

CIRCUIT BREAKER-10AMP.
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 75475

SCREW, PAN HEAD-M4-0.7 x 10

$

$

Not available

49

Briggs & Stratton 43181

SCREW, PAN HEAD-M3-0.5 x 10
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 63036

SCREW, CRIMPTITE #8-32 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 23364

WASHER, SHAKE PROOF-#6
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 23364

WASHER, SHAKE PROOF-#6
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 24049

BEARING, ROTOR

$

$

Not available

53

Briggs & Stratton 79623

CRADLE-5KW

$

$

Currently unavailable

53

Briggs & Stratton 79623

CRADLE-5KW ELECT. START

$

$

Currently unavailable

54

Briggs & Stratton 78509

LIFTING BAR-C5000

$

$

Currently unavailable

56

Briggs & Stratton 44723

BRUSH HOLDER ASSEMBLY

$

$

Not available

57

Briggs & Stratton 25105

SCREW NO. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 22694

RECEPTACLE HS6-WHITE
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

59

Briggs & Stratton 43994

RECEPTACLE HS6-RED

$

$

Not available

60

Briggs & Stratton 27482

WASHER, SHAKE PROOF-5/16"
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 71729

PHILLIPS PAN HD. MACH. SCR.
(Superseded to 71729GS)

$6.99

$

Usually ships in 2-12 days

0

62

UNKNOWN

$

$

Not available

63

UNKNOWN

$

$

Not available

66

Briggs & Stratton 77282

STARTER SWITCH

$

$

Not available

67

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

68

Briggs & Stratton 70439

PPHMS.-M4-0.7 x 20

$

$

Currently unavailable

69

Briggs & Stratton 68796

REGULATOR HOLD DOWN

$

$

Currently unavailable

70

Briggs & Stratton 67107

VOLTAGE REGULATOR
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 68795

REGULATOR BRACKET

$

$

Not available

72

Briggs & Stratton 36901

PHILLIPS PAN HD. MACH. SCR. #6-32 x 3/8" LONG

$

$

Currently unavailable

73

Briggs & Stratton 22188

HEX NUT-#6-23

$

$

Currently unavailable

74

UNKNOWN

$

$

Not available

75

Briggs & Stratton 75494

SCREW, SELF DRILL #10 x 5/8

$

$

Not available

75

Briggs & Stratton 75494

SCREW, SELF DRILL #10 x 5/8"

$

$

Not available

76

Briggs & Stratton 22769

WASHER, SHAKE PROOF #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 25433

GROUND LUG

$

$

Not available

79

Briggs & Stratton 66849

SCREW, M5-0.8 x 15
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 22145

FLAT WASHER-5/16"-M8

$

$

Not available

81

Briggs & Stratton 39287

M8-1.25 x 45, HEX HD. CAPSCR.
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

82

Briggs & Stratton 78289

BRACKET, STARTER SWITCH
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0
