C5000 (9477-0) - Generac 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

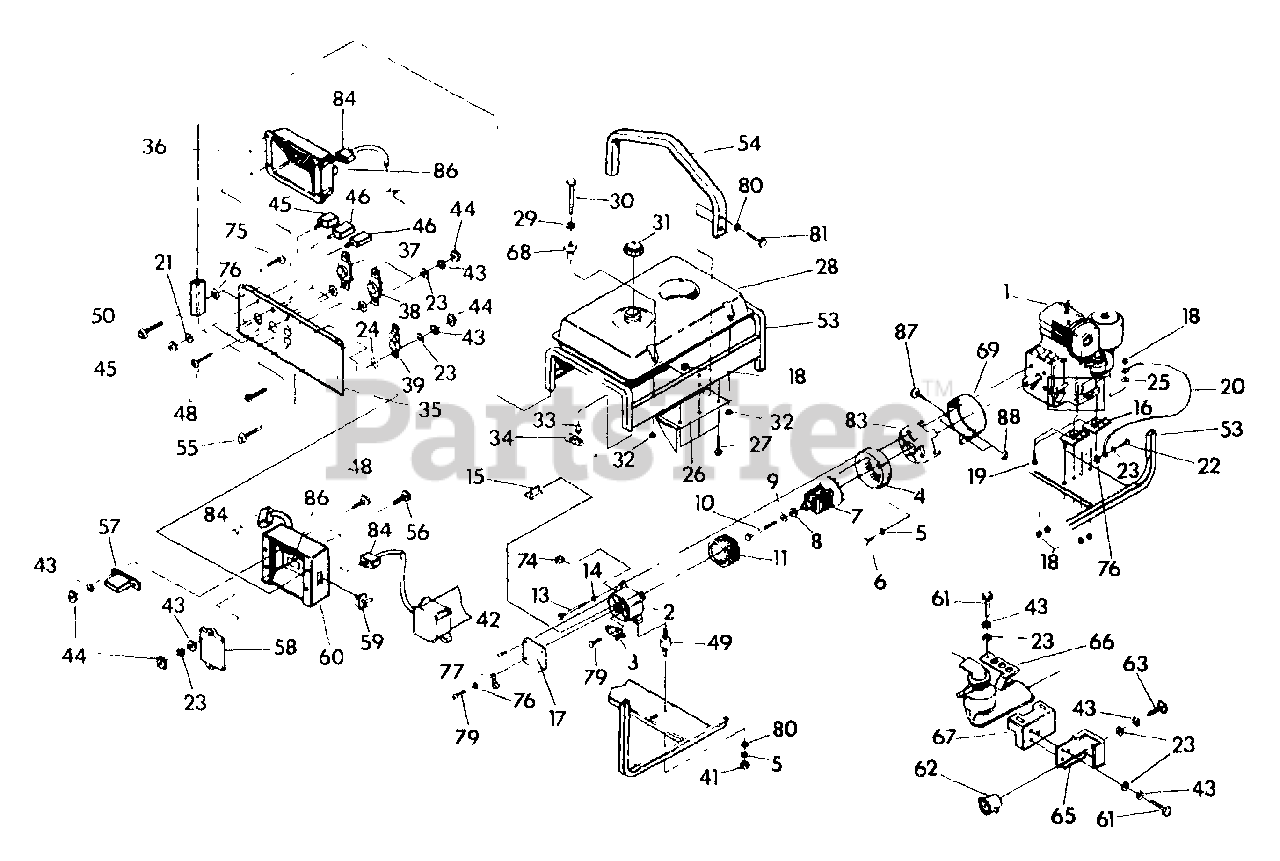

Generator Parts Diagram

  • Title

1

Briggs & Stratton 79557

Briggs & Stratton 11hp Eng.

$

$

Currently unavailable

2

Briggs & Stratton 66825A

Rear Bearing Carrier

$

$

Currently unavailable

3

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 66365D

Housing Adaptor
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 23541

5/16"-24 x 2-1/2" Screw

$

$

Currently unavailable

7

Briggs & Stratton 74716

Rotor Assembly

$

$

Not available

8

Briggs & Stratton 65791

Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 67451

Special Washer

$

$

Currently unavailable

10

Briggs & Stratton 75431

5/16"-24 x 8-1/2" Bolt
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 79636

Stator Assembly

$

$

Currently unavailable

13

Briggs & Stratton 66449D

M6-1.0 x 130mm Bolt

$

$

Currently unavailable

14

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66850

Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 70642

45-degree Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

18

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 76222

M8-1.25 x 40mm Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 10953621

4" Ground Wire

$

$

Currently unavailable

21

Briggs & Stratton 82881

Internal Lock Washer
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 24911

Screw (Taptite)
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 23365

No. 8 Lock Washer (serrated)
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 27482

5/16" Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84459

Heat Shield

$

$

Currently unavailable

27

Briggs & Stratton 56892

No. 10-24 x 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 77374

5 gal. Plastic Gas Tank

$

$

Currently unavailable

29

Briggs & Stratton 78830

Special Black Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 79816

M6 x 35mm Black Capscrew

$

$

Not available

31

Briggs & Stratton 78824

Fuel Tank Cap

$

$

Currently unavailable

32

Briggs & Stratton 77395

M6 Hex Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 80269

Plastic Tank Bushing

$

$

Currently unavailable

34

Briggs & Stratton 80270

Plastic Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 81897

Control Panel

$

$

Currently unavailable

36

Briggs & Stratton 81919

Control Panel Back (plastic)
(Superseded to 81919GS)

$136.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 68868

120 Volts, 30 amp Twistlock Receptacle
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

120/240 Volts, 20 amp Twistlock Receptacle
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 68795

120 Volts, 20 amp Duplex Receptacle

$

$

Not available

41

Briggs & Stratton 25244

5/16-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 74908

M5-0.8 x 10mm Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

44

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

45

75207A

30 amp Circuit Breaker

$

$

Not available

46

Briggs & Stratton 75207

20 amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

48

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

49

Briggs & Stratton 82857

Rubber Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 82308

Self-tapping Screw
(Superseded to 82308GS)

$2.99

$

In Stock, only 2 left!

0

53

Briggs & Stratton 84456

Cradle

$

$

Currently unavailable

54

Briggs & Stratton 84453

Lifting Bar

$

$

Currently unavailable

55

Briggs & Stratton 63036

No. 8-32 x 1/4 Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 80077

M4-0.7 x 20mm Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 77278E

Idle Transformer Assembly

$

$

Currently unavailable

58

Briggs & Stratton 67632D

Idle Control Board Assembly
(Superseded to 67632DGS)

$179.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 55869

On/Off Toggle Switch

$

$

Currently unavailable

60

Briggs & Stratton 82856

Idle Control Back Box

$

$

Currently unavailable

61

Briggs & Stratton 23965

No. 8-32 x 3/8" Screw
(Superseded to 23965GS)

$3.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 76220

Idle Control Coil

$

$

Not available

63

Briggs & Stratton 22153

No. 8-32 x 1/2 Screw
(Superseded to 5022153)

$5.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 78502A

Adjustment Bracket

$

$

Currently unavailable

66

Briggs & Stratton 78503A

Throttle Plate

$

$

Not available

67

Briggs & Stratton 84539

Mounting Bracket

$

$

Currently unavailable

68

Briggs & Stratton 83465

Mounting Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

69

Briggs & Stratton 83888

Finger Guard Wrap

$

$

Currently unavailable

74

Briggs & Stratton 67022

Rubber Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 75494

No. 10 x 5/8" Screw

$

$

Not available

76

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 25433

Ground Lug

$

$

Not available

79

Briggs & Stratton 66849

M5-0.8 x 15mm Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 22145

5/16" (M8) Flat Washer

$

$

Not available

81

Briggs & Stratton 39287

M8-1.25 x 45mm Capscrew
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

83

Briggs & Stratton 68342

Engine Spacer

$

$

Currently unavailable

84

Briggs & Stratton 22695

6-pin Male Connector
(Superseded to 22695GS)

$6.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 22694

6-pin Connector
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

87

Briggs & Stratton 52618

M5-0.8 x 12mm Screw
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 52856

M5-0.8 Lock Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0
