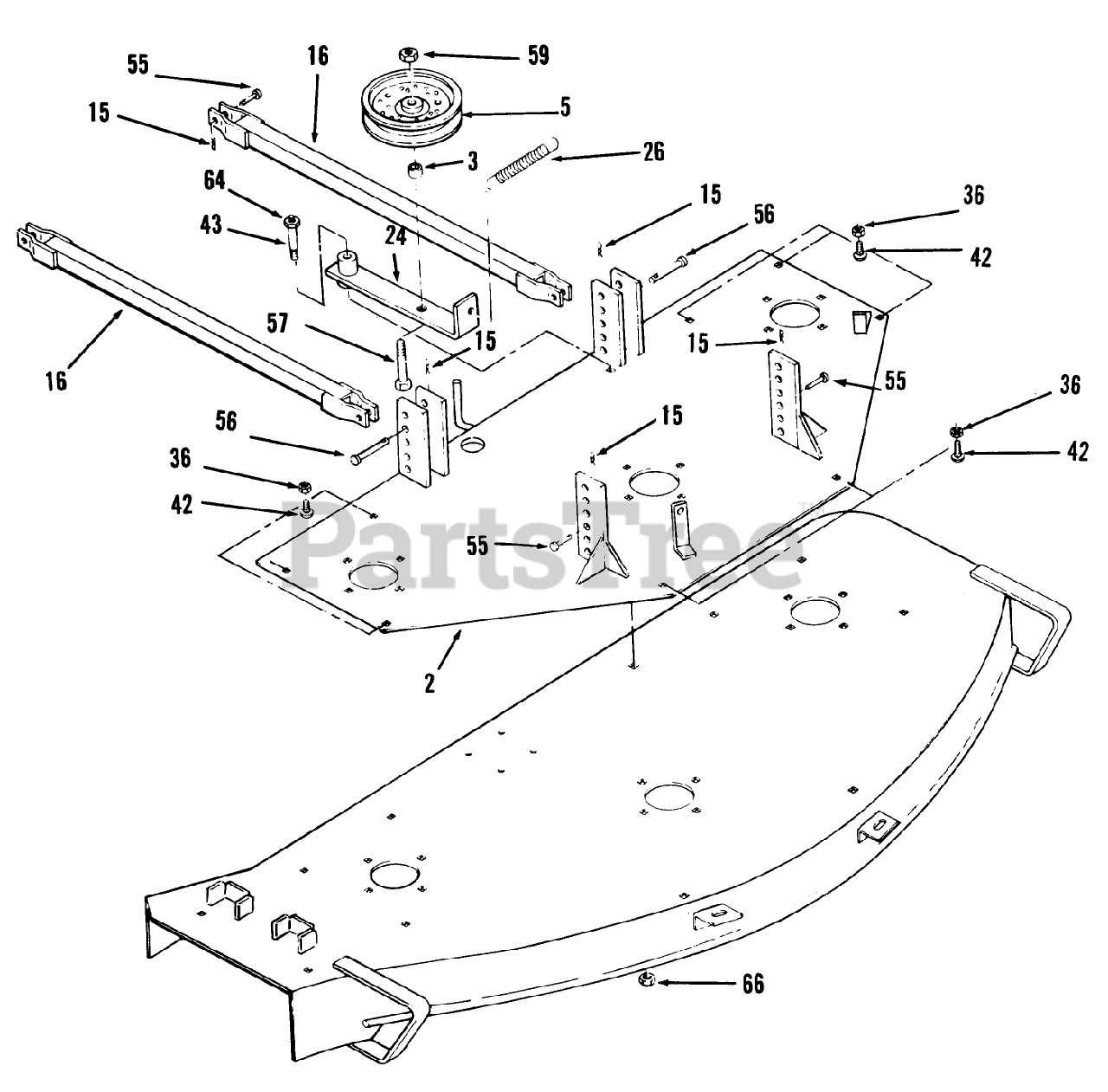

C5-60ZS03 - Toro 60" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) SIDE DISCHARGE MOWERS-50 & 60 IN. (127 & 152 CM) Parts Diagram

60" Side-Discharge Mower Deck

SIDE DISCHARGE MOWERS-50 & 60 IN. (127 & 152 CM) Parts Diagram

  • Title

2

Toro 78-1960

ASS'Y-MWR DECK PL R

$

$

Not available

Toro 78-1970

Plate-60" Deck
(Superseded to 78-1970-01)

$

$

Not available

3

Toro 9118

SPACER

$

$

Not available

5

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$134.99

$

Usually ships in 3-6 days

0

15

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

16

Toro 113635

Bar-Stabilizer
(Superseded to 113635-03)

$

$

Not available

24

Toro 113626

ASS'Y-IDLER ARM R

$

$

Not available

Toro 114835

Arm-Belt Idler, 60" Deck
(Superseded to 99-5856)

Note: Not illustrated

$

$

Not available

26

Toro 100071

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

42

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

42

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 16

0

43

Toro 120060

BOLT-SHOULDER

$

$

Not available

55

Toro 932964

Clevis Pin 3/8 x 1 1/4
(Superseded to 9329644)

$

$

Not available

56

Toro 932967

Clevis Pin 3/8 x 2-1/4
(Superseded to 9329674)

$5.99

$

Usually ships in 3-6 days

0

57

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

59

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

64

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

66

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
