C5-60ZS01 - Toro 60" Side-Discharge Mower Deck (1988) SIDE DISCHARGE MOWERS-50 & 60 IN. (127 & 152 CM) VEHICLE IDENTIFICATION NUMBERS C5-50ZS01 & C5-60ZS01 Parts Diagram

60" Side-Discharge Mower Deck

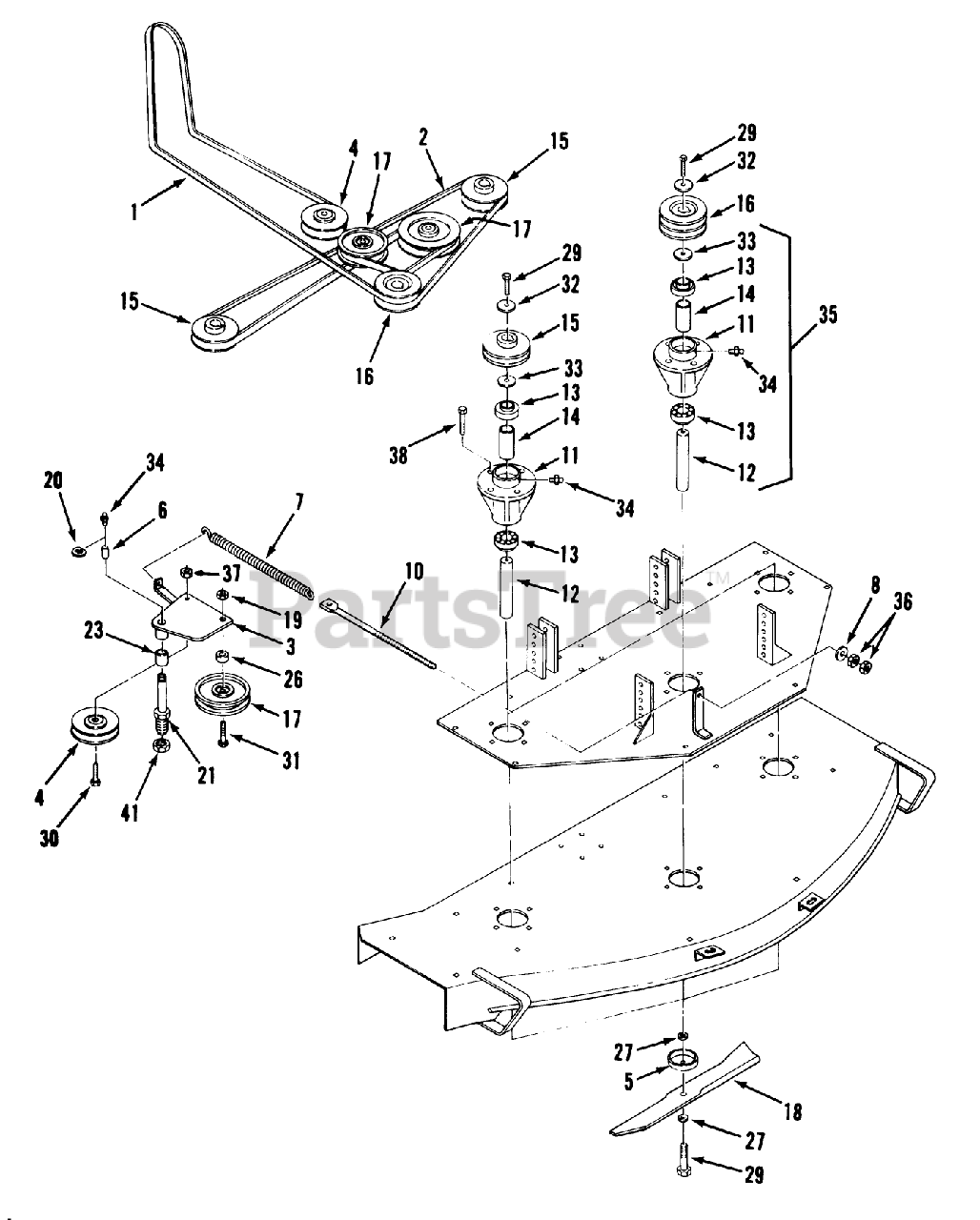

SIDE DISCHARGE MOWERS-50 & 60 IN. (127 & 152 CM) VEHICLE IDENTIFICATION NUMBERS C5-50ZS01 & C5-60ZS01 Parts Diagram

  • Title

1

Toro 114200

BELT-50" MOW DR 724Z

$96.99

$

Usually ships in 3-6 days

0

Toro 114202

BELT-60" MOW DR 724Z

$112.99

$

Usually ships in 3-6 days

0

2

Toro 113625

BELT-V

$100.99

$

Usually ships in 3-6 days

0

Toro 112449

BELT-V

$224.99

$

In Stock, only 3 left!

0

3

Toro 114869

Belt Tensioning Swing Arm
(Superseded to 79-3090-01)

$

$

Not available

4

Toro 111170

PULLEY-IDLER

$125.99

$

Usually ships in 3-6 days

0

5

Toro 113512

CUP-SPINDLE

$

$

Not available

6

Toro 113597

BUSHING

$8.49

$

Usually ships in 3-6 days

0

7

Toro 114868

Spring-Idler
(Superseded to 114868-01)

$

$

Not available

8

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

10

Toro 114885

Spade Eyebolt
(Superseded to 79-3120)

$53.99

$

Usually ships in 3-6 days

0

11

Toro 113516

HOUSING-SPINDLE

$

$

Not available

12

Toro 113513

SHAFT-SPINDLE

$

$

Not available

13

Toro 113514

BEARING-BALL

$19.99

$

In Stock, only 3 left!

0

14

Toro 113511

TUBE

$43.99

$

Usually ships in 3-6 days

0

15

Toro 113523

PULLEY-OUTER

$163.99

$

In Stock, only 1 left!

0

Toro 113525

PULLEY-OUTER SPIND

$

$

Not available

16

Toro 113524

PULLEY-CENTER

$253.99

$

In Stock, only 1 left!

0

Toro 113526

PULLEY-CENTER

$

$

Not available

17

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$118.99

$

Usually ships in 3-6 days

0

18

Toro 113579

MOWER BLADE 17"

$30.99

$

In Stock, only 3 left!

0

Toro 112947

BLADE

$35.99

$

In Stock, only 1 left!

0

19

Toro 915665

Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

20

Toro 105005

RETAINING RING

$

$

Not available

21

Toro 114911

SHAFT-BELT TEN PI

$120.99

$

Usually ships in 3-6 days

0

23

Toro 113588

SLEEVE R

$

$

Not available

26

Toro 9118

SPACER

$

$

Not available

27

Toro 920260

WASHER-SPECIAL

$2.49

$

In Stock, only 4 left!

0

29

Toro 908088

Bolt
(Superseded to 327-6)

$13.99

$

In Stock, only 1 left!

0

30

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

31

Toro 908061

Bolt 1/2-13 X 2
(Superseded to 325-8)

$5.49

$

In Stock, Qty 5

0

32

Toro 114810

WASHER-SPECIAL

$

$

Not available

33

Toro 110047

SPACER

$

$

Not available

34

Toro 1030

Zerk

$

$

Not available

35

Toro 111013

Spindle Complete (includes items 11, 12, 13, 14, 29, 32, 33 & 34)

$

$

Not available

36

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

37

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

38

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

41

Toro 915696

Elast Nut 3/4-16
(Superseded to 32-9650)

$0.99

$

In Stock, Qty 20+

0
