C5-60SC04 - Toro 60" Side-Discharge Mower Deck (SN: 020000001 - 029999999) (1992) SIDE DISCHARGE MOWER-60 IN. (152 CM) VEHICLE IDENTIFICATION NUMBER C5-60SC04 Parts Diagram

60" Side-Discharge Mower Deck

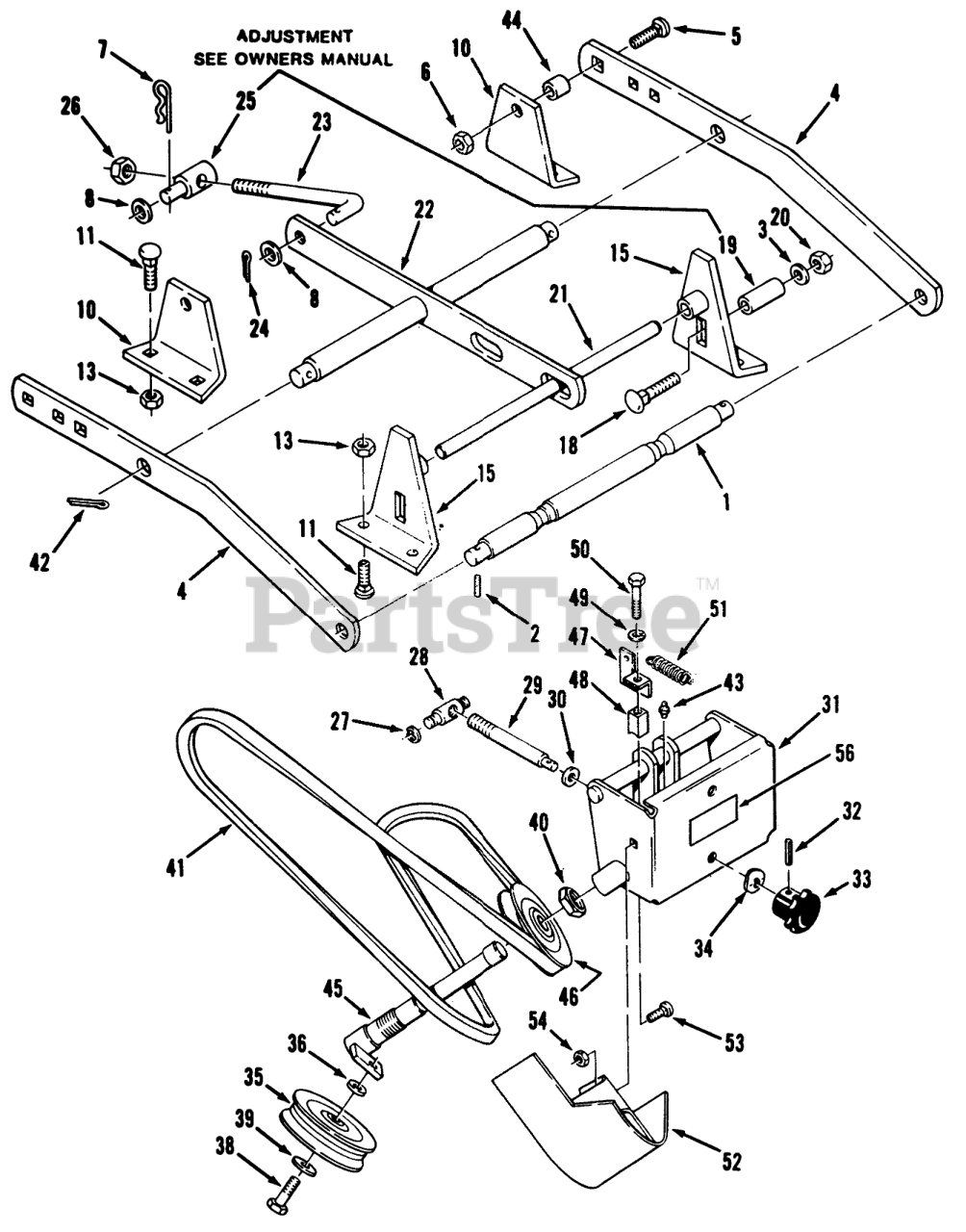

SIDE DISCHARGE MOWER-60 IN. (152 CM) VEHICLE IDENTIFICATION NUMBER C5-60SC04 Parts Diagram

  • Title

1

Toro 113069

Shaft
(Superseded to 113069-01)

$

$

Not available

2

Toro 933270

PIN

$6.49

$

In Stock, Qty 6

0

3

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 5

0

4

Toro 115350

Bar-Draft
(Superseded to 115350-01)

$117.99

$

Usually ships in 3-6 days

0

5

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

6

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

7

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

8

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 113055

Rear Deck Bracket
(Superseded to 113055-01)

$

$

Not available

11

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

15

Toro 113064

Front Deck Bracket
(Superseded to 113064-01)

$84.99

$

Usually ships in 3-6 days

0

18

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

19

Toro 7361

SPACER

$

$

Not available

20

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

21

Toro 102570

Front Shaft
(Superseded to 102570-03)

$128.99

$

Usually ships in 3-6 days

0

22

Toro 113061

Leveler
(Superseded to 113061-01)

$

$

Not available

23

Toro 113070

ROD LEVELER

$

$

Not available

24

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

25

Toro 102213

TRUNION

$78.99

$

Usually ships in 3-6 days

0

26

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

28

Toro 101708

TRUNNION-DOUBLE

$31.99

$

Usually ships in 3-6 days

0

29

Toro 101842

ROD ADJ

$62.99

$

Usually ships in 3-6 days

0

30

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

31

Toro 113076

Front Idler Support
(Superseded to 113076-01)

$329.99

$

Usually ships in 3-6 days

0

32

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 7

0

33

Toro 101851

KNOB-ADJUSTMENT

$25.99

$

In Stock, only 3 left!

0

34

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

35

Toro 104975

PULLEY-FLAT IDLER

$56.99

$

In Stock, only 2 left!

0

36

Toro 113100

SPACER

$

$

Not available

38

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

39

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

40

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

41

Toro 113072

BELT-103" A SECTION

$51.99

$

In Stock, only 4 left!

0

42

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

43

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

44

Toro 114127

SPACER

$8.99

$

In Stock, only 2 left!

0

45

Toro 113097

ASS'Y-IDLER ARM

$

$

Not available

46

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 3 left!

0

47

Toro 113102

Bracket
(Superseded to 113102-03)

$

$

Not available

48

Toro 113101

BLOCK-GUIDE

$

$

Not available

49

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

50

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 107677

SPRING-BRAKE

$16.99

$

In Stock, Qty 10

0

52

Toro 113073

Cover
(Superseded to 113073-01)

$179.99

$

In Stock, only 1 left!

0

53

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

54

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

56

Toro 115197

Decal-Attac-O-Matic
(Superseded to 94-6330)

$

$

Not available

Toro 115441

Pulley Box Assembly

Note: Illustrated

$

$

Not available
