C5-60SC01 - Toro 60" Side-Discharge Mower Deck for Tractors (1988) SIDE DISCHARGE MOWER-60 IN. (152 CM) Parts Diagram

60" Side-Discharge Mower Deck for Tractors

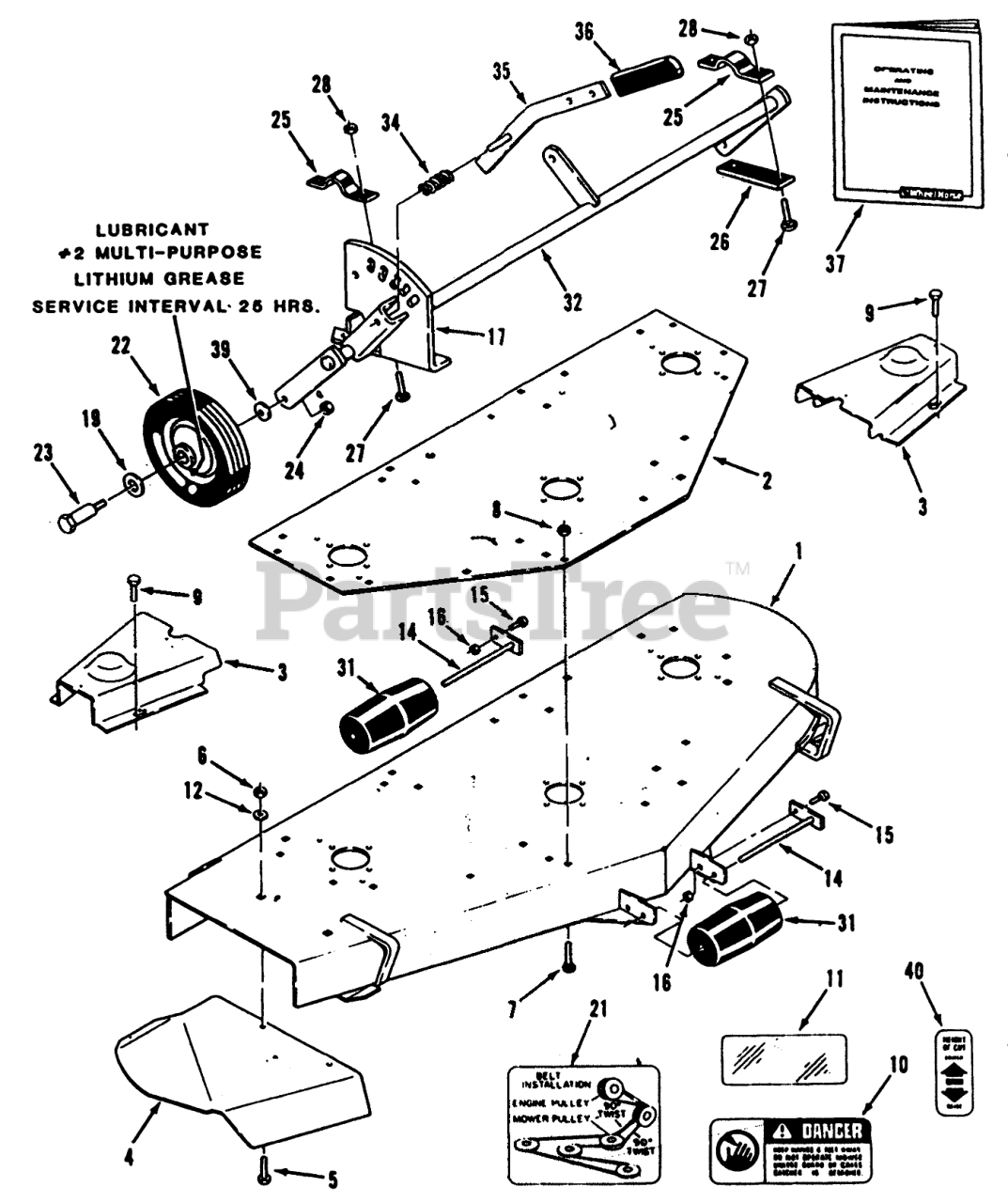

SIDE DISCHARGE MOWER-60 IN. (152 CM) Parts Diagram

  • Title

1

Toro 113609

ASS'Y-MOWER DECK R

$

$

Not available

2

Toro 113053

PLATE-TOP REINFOR R

$

$

Not available

3

Toro 115346

Belt Cover
(Superseded to 115346-01)

$275.99

$

Usually ships in 3-6 days

0

4

Toro 113639

CHUTE-DISCHARGE 6 R

$464.99

$

Usually ships in 3-6 days

0

5

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

6

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

7

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

9

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

10

Toro 111188

Danger Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

11

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

12

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

14

Toro 113603

ROLLER-SHAFT

$46.99

$

Usually ships in 3-6 days

0

15

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

16

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

17

Toro 113060

QUADRANT R

$

$

Not available

19

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

21

Toro 115223

DECAL-BELT INSTALL

$

$

Not available

22

Toro 114275

ASSY-GAUGE WHEEL

$

$

Not available

23

Toro 908138

Bolt 3/8-16 x 3 1/4
(Superseded to 323-20)

$3.49

$

In Stock, only 2 left!

0

24

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

25

Toro 113057

Clamp
(Superseded to 113057-03)

$

$

Not available

26

Toro 113056

BAR

$

$

Not available

27

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

31

Toro 113349

ROLLER-ANTI SCALP

$78.99

$

In Stock, only 2 left!

0

32

Toro 113058

Gage Wheel Support
(Superseded to 113058-01)

$566.99

$

Usually ships in 3-6 days

0

34

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

35

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

36

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

37

Toro 810484R1

Owner-s and Maintenance Instructions

$

$

Currently unavailable

39

Toro 109901

SPACER

$28.99

$

Usually ships in 3-6 days

0

40

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

55

Toro 115441

Pulley Box Assembly

$

$

Not available
