C3-12K502 (112-C) - Toro Rear-Engine Riding Mower (1988) KAWASAKI FB460V TYPE BS-15 ENGINE Parts Diagram

Rear-Engine Riding Mower

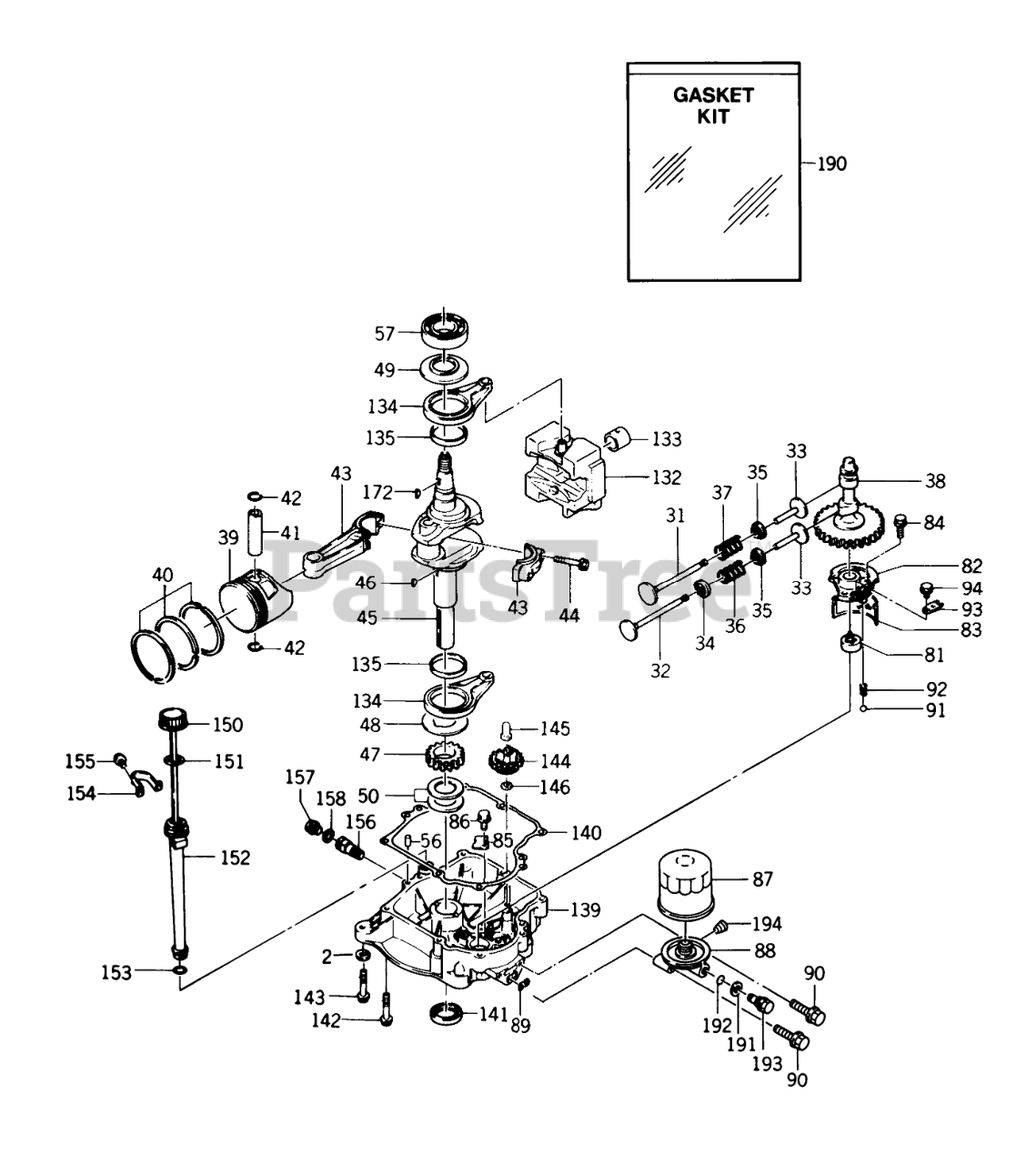

KAWASAKI FB460V TYPE BS-15 ENGINE Parts Diagram

  • Title

2

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

31

Toro KW10021

VALVE-INTAKE

$

$

Not available

32

Toro KW10022

VALVE-EXHAUST

$152.99

$

Usually ships in 3-6 days

0

33

Toro KW10023

TAPPET-VALVE

$

$

Not available

34

Toro KW10024

ROTATOR-VALVE

$

$

Not available

35

Toro KW10136

RETAINER-VALVE

$

$

Not available

36

Toro KW10150

SPRING-VALVE

$

$

Not available

37

Toro KW10151

SPRING-VALVE

$

$

Not available

38

Toro KW10262

SHAFT-CAM

$

$

Not available

39

Toro KW10263

PISTON-(STD)

$

$

Not available

Toro KW10310

PISTON-.010 OVER

$

$

Not available

Toro KW10311

PISTON-.020 OVER

$

$

Not available

Toro KW10312

PISTON-.030 OVER

$

$

Not available

40

Toro KW10268

RING (STD)

$

$

Not available

Toro KW10269

RING (.010 OVER)

$

$

Not available

Toro KW10270

RING (.020 OVER)

$

$

Not available

Toro KW10271

RING (.030 OVER)

$

$

Not available

41

Toro KW10038

PIN-PISTON

$

$

Not available

42

Toro KW10218

RING-SNAP

$

$

Not available

43

Toro KW10054

Connecting Rod Assty - Standard (includes item 44)

$

$

Not available

Toro KW10055

Connecting Rod Ass-y - .025mm Under Size (Includes item 44)

$

$

Not available

44

Toro KW10123

BOLT-CON ROD

$

$

Not available

45

Toro KW10159

Crankshaft Complete

$

$

Not available

46

Toro KW10163

KEY-WOODRUFF

$4.99

$

Usually ships in 3-6 days

0

47

Toro KW10272

GEAR-HELICAL

$

$

Not available

48

Toro KW10213

SPACER

$

$

Not available

49

Toro KW10214

SPACER

$

$

Not available

50

Toro KW10203

SHIM-T=1.18

$

$

Not available

Toro KW10204

SHIM-T=1.25

$

$

Not available

Toro KW10205

SHIM-T=1.32

$

$

Not available

Toro KW10206

SHIM-T=1.39

$

$

Not available

Toro KW10207

SHIM-T=1.46

$

$

Not available

Toro KW10208

SHIM-T=1.53

$

$

Not available

Toro KW10209

SHIM-T=1.60

$

$

Not available

Toro KW10210

SHIM-T=1.67

$

$

Not available

Toro KW10211

SHIM-T=1.74

$

$

Not available

56

Toro KW10224

PIN

$

$

Not available

57

Toro KW10183

BEARING-BALL #6207

$

$

Not available

81

Toro KW10074

PUMP OIL

$

$

Not available

82

Toro KW10076

COVER-PUMP

$

$

Not available

83

Toro KW10148

FILTER-INTERNAL OIL

$

$

Not available

84

Toro KW10034

BOLT, FLANGED 8X25

$

$

Not available

85

Toro KW10052

PLATE

$

$

Not available

86

Toro KW10026

Bolt
(Superseded to 93-8680)

$

$

Not available

87

Toro KW10149

OIL-FILTER KMC

$

$

Not available

88

Toro KW10283

Bracket (includes item 194)

$

$

Not available

89

Toro KW10228

RING O

$

$

Not available

90

Toro KW10035

BOLT-FLANGED

$

$

Not available

91

Toro KW10182

BALL-STEEL 5/16

$

$

Not available

92

Toro KW10239

SPRING

$

$

Not available

93

Toro KW10053

PLATE

$

$

Not available

94

Kw10029

BOLT-FLANGED

$

$

Not available

132

Toro KW10046

Weight Complete (includes item 133)

$

$

Not available

133

Toro KW10305

BEARING-PLAIN

$

$

Not available

134

Toro KW10144

Rod Assy (includes item 135)

$

$

Not available

135

Toro KW10244

BEARING PLAIN

$

$

Not available

139

Toro KW10147

COVER-CRANKCASE

$638.99

$

Usually ships in 3-6 days

0

140

Toro KW10004

GASKET

$41.99

$

Usually ships in 3-6 days

0

141

Toro KW10225

SEAL OIL

$

$

Not available

142

Toro KW10035

BOLT-FLANGED

$

$

Not available

143

Toro KW10034

BOLT, FLANGED 8X25

$

$

Not available

144

Toro KW10157

GOVERNON

$34.99

$

Usually ships in 3-6 days

0

145

Toro KW10140

SLEEVE-GOVERNOR

$

$

Not available

146

Toro KW10112

WASHER

$

$

Not available

150

Toro KW10164

GAUGE-OIL

$40.99

$

Usually ships in 3-6 days

0

151

Toro KW10010

GASKET

$

$

Not available

152

Toro KW10181

FILLER

$

$

Not available

153

Toro KW10184

O-RING

$

$

Not available

154

Toro KW10223

CLAMP

$

$

Not available

155

Toro KW10026

Bolt
(Superseded to 93-8680)

$

$

Not available

156

Toro KW10177

JOINT

$

$

Not available

157

Toro KW10232

PLUG DRAIN

$

$

Not available

158

Toro KW10128

GASKET

$

$

Not available

172

Toro KW10163

KEY-WOODRUFF

$4.99

$

Usually ships in 3-6 days

0

190

Toro KW10018

GASKET SET-OVERHAUL

$

$

Not available

191

Toro KW10128

GASKET

$

$

Not available

192

Toro KW10285

O'RING

$

$

Not available

193

Toro KW10286

PLUG

$

$

Not available

194

Toro KW10284

PLUG

$

$

Not available
