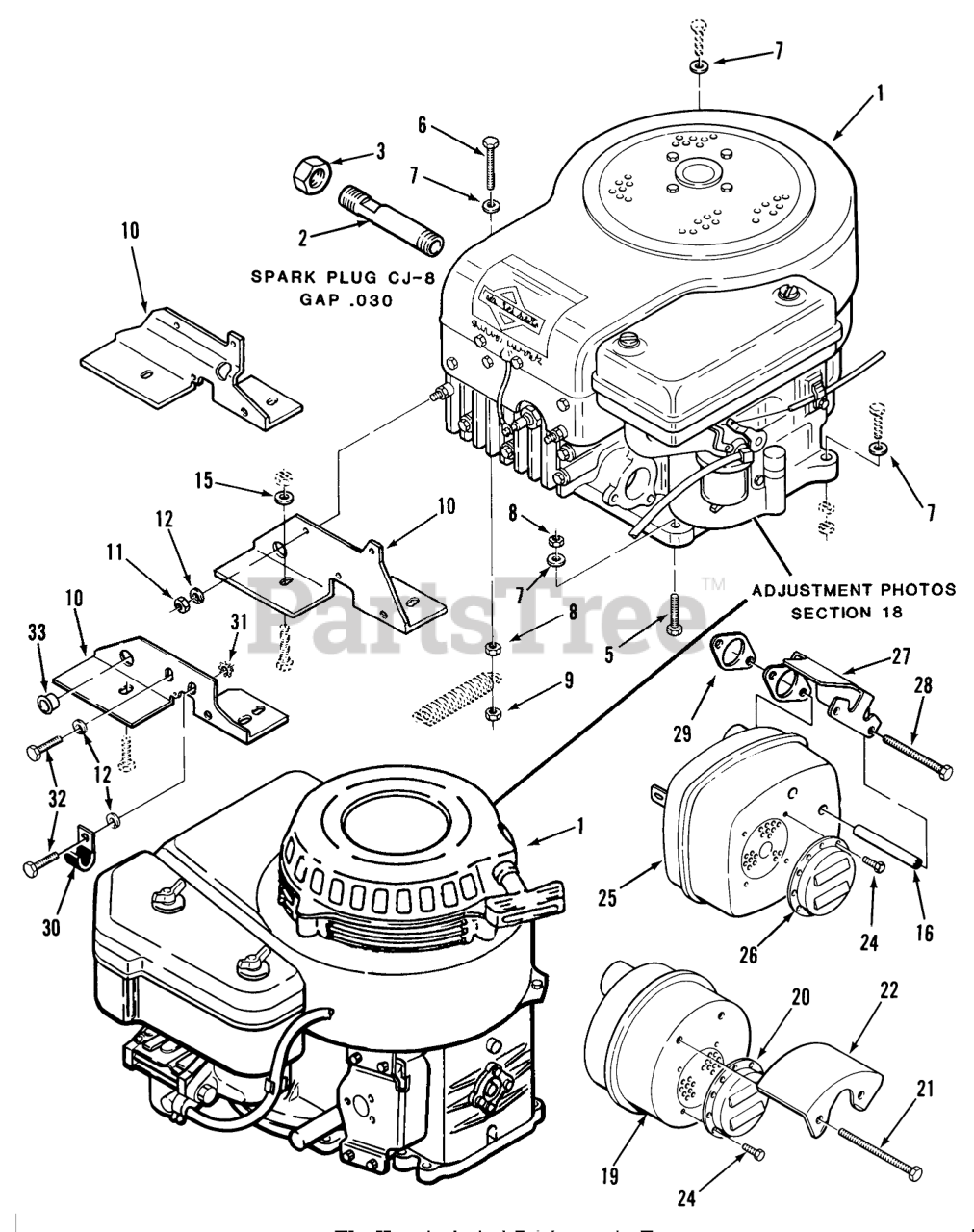

C3-12K502 (112-C) - Toro Rear-Engine Riding Mower (1988) ENGINES Parts Diagram

Rear-Engine Riding Mower

ENGINES Parts Diagram

  • Title

1

Toro 110877

Rim

$

$

Currently unavailable

Toro 111326

Engine-8 HP B&S Model 193707 Type 0148-01 108-5 Only

$

$

Not available

Toro 112906

Engine-11 HP B&S Model 253707 Type 0253-01 111-6 Only

$

$

Currently unavailable

Toro 112688

Engine-12.5 HP Kawasaki Model FB460V Type AS 15 112-C Only (see Sections 9-2 thru 9-8 for complete service info)

$

$

Currently unavailable

2

Toro 112676

PIPE-DRAIN B

$

$

Not available

3

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

5

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

6

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 5

0

7

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

8

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

10

Toro 113138

Engine Head Bracket 8 H.P. Models

$

$

Not available

Toro 113366

Engine Head Bracket 11 H.P. Models

$

$

Not available

Toro 114019

Engine Head Bracket 12.5 H.P. Model

$

$

Not available

11

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

12

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

15

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

16

Toro 113175

SPACER

$7.49

$

Usually ships in 3-6 days

0

19

Toro 110771

Muffler-Chrome-211-A Only
(Superseded to 110774)

$

$

Not available

21

Toro 908146

Bolt, 5/16-18 x 1/4
(Superseded to 322-20)

$1.99

$

Usually ships in 3-6 days

0

20

Toro 110772

Deflector 45 111-5 Only
(Superseded to 110775)

$

$

Not available

22

Toro 110794

Deflector-Chrome

$

$

Not available

24

Toro 913406

SCRW-HX S.T.#8 X 3/8

$

$

Not available

Toro 110773

Screw 8-32 x 3/8 111-6

$

$

Not available

25

Toro 113173

MUFFLER

$

$

Not available

26

Toro 113306

Muffler Deflector 112-C Only

$

$

Not available

27

Toro 113174

HEAT-SHIELD

$

$

Not available

28

Toro 113176

Bolt 8M x 1.25 x 110 112-C Only

$

$

Not available

29

Toro KW10011

GASKET

$

$

Not available

30

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

31

Toro 920123

Washer-Lock
(Superseded to 3255-8)

$0.99

$

In Stock, Qty 5

0

32

Toro 112988

Bolt 8M x 1.25 x 16 112-C Only

$

$

Not available

33

Toro 938031

BUSHING-NYLON 1.093

$

$

Not available
