C3-12K501 (112-C) - Toro Rear-Engine Riding Mower (1987) WHEELS AND TIRES Parts Diagram

Rear-Engine Riding Mower

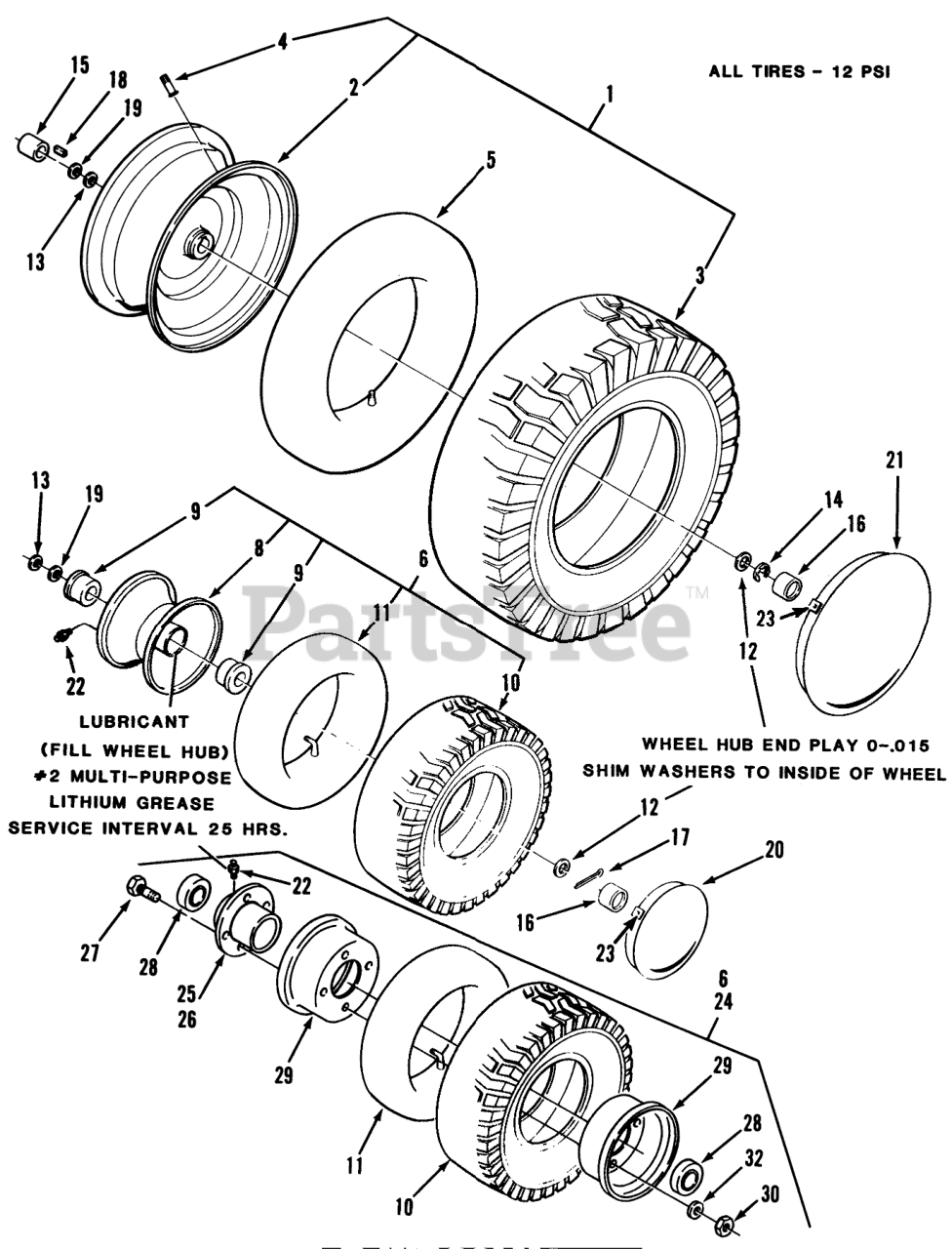

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 110879

Rear Wheel and Tire 108-3 Only

$

$

Not available

Toro 110880

Rear Wheel and Tire 108-4 Only

$

$

Not available

Toro 112195

ASSY WHEEL & TIRE

$

$

Not available

Toro 112551

Rear Wheel and Tire 112-C

$

$

Not available

2

Toro 110881

Rear Wheel 108-4 Only

$

$

Not available

Toro 112196

ASSY WHEEL

$

$

Not available

Toro 110897

ASSY WHEEL

$

$

Not available

3

Toro 110883

Rear Tire 4.80 x 4.00-8 108-3 Only

$

$

Not available

Toro 110882

Rear Tire 16 x 6.50-8 108-3 Only

$

$

Not available

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

Toro 112552

TIRE-16X6.50 4 PLY

$

$

Not available

4

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

5

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

6

Toro 110884

Front Wheel and Tire 108-3 Only

$

$

Not available

Toro 110885

ASSY WHEEL & TIRE

$

$

Not available

Toro 110898

Front Wheel and Tire 11 1-5, 111-6 Only

$

$

Not available

Toro 112544

Front Wheel and Tire 112-C Only

$

$

Not available

8

Toro 110886

Frt Wheel w/Bushings & Grease Fitting 108-4

$

$

Not available

Toro 110899

ASSY WHEEL

$195.99

$

Usually ships in 3-6 days

0

9

Toro 110391

BEARING-WHEEL

$7.99

$

In Stock, only 4 left!

0

Toro 100166

FLANGE BEARING

$34.99

$

Usually ships in 3-6 days

0

10

Toro 110888

Tire 4.10 x 3.50-4 108-3 Only
(Superseded to 110885)

$

$

Not available

Toro 108444

Tire-Front 4-10 X 3.50-4
(Superseded to 100030)

$

$

Not available

Toro 112550

TIRE-4.10/3.50 4 PLY

$

$

Not available

11

Toro 100041

TUBE

$

$

Not available

12

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

Toro 111952

WASHER WHEEL

$7.49

$

In Stock, Qty 5

0

13

Toro 920250

WASHER

$

$

Not available

14

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

15

Toro 110387

LH AXLE SPACER

$

$

Not available

16

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

Toro 109261

HUB CAP

$

$

Not available

Toro 111951

HUBCAP

$16.99

$

In Stock, only 2 left!

0

17

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

18

Toro 1120

SQ KEY

$3.49

$

Usually ships in 3-6 days

0

19

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

20

Toro 112121

4IN HUBCAP W/LOGO

$

$

Not available

21

Toro 112123

8" HUB CAP WITH LOGO
(Superseded to 114427)

$

$

Not available

22

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

23

Toro 111938

SPRING CLIP

$

$

Not available

24

Toro 112545

Front Wheel Complete (Silver) 112-C Only (includes items 22, 25, 29, 30, 31 & 32) 112-C

$

$

Not available

25

Toro 112546

Inner Hub (includes items 22, 26, 27 & 28) 112-C

$

$

Not available

26

Toro 112547

HUB-INNER

$

$

Not available

27

Toro 112548

Stud 112-C Only

$

$

Not available

28

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 2 left!

0

29

Toro 112549

RIM

$

$

Not available

30

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

31

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0
