C3-12K501 (112-C) - Toro Rear-Engine Riding Mower (1987) KAWASAKI FB460V TYPE AS-15 ENGINE Parts Diagram

Rear-Engine Riding Mower

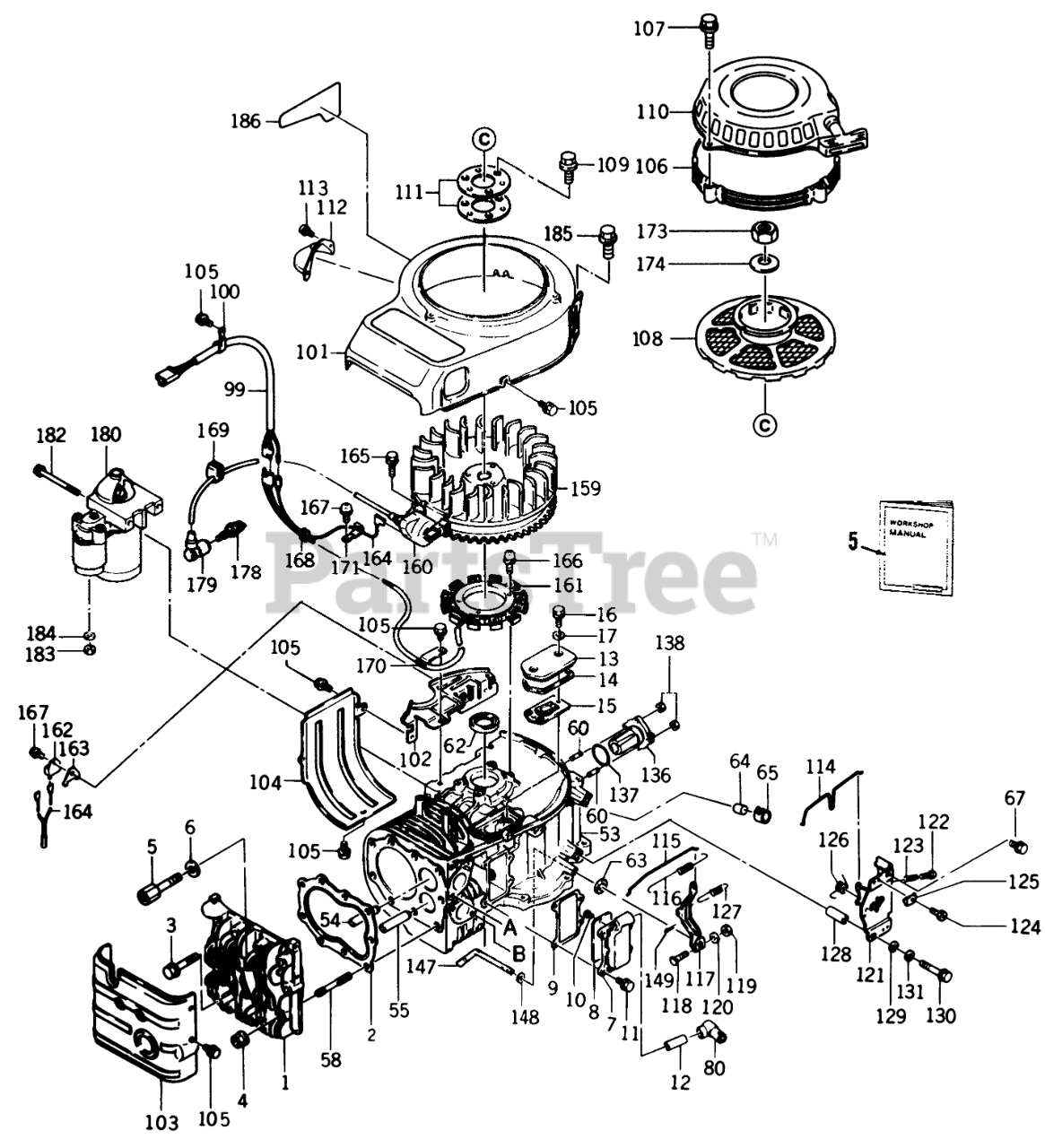

KAWASAKI FB460V TYPE AS-15 ENGINE Parts Diagram

  • Title

1

Kawasaki 11001-2102

Cylinder Head
(Superseded to 11001-2151)

$

$

Not available

2

Kawasaki 11004-2091

Gasket-Head
(Superseded to 11004-2079)

$16.99

$

In Stock, only 4 left!

0

3

Kawasaki 130G1055

Bolt
(Superseded to 130BA1055)

$

$

Not available

4

Toro 92015-2115

Nut

$

$

Currently unavailable

5

Toro 99924-2011

Kawasaki FB460V Workshop Manual

$

$

Currently unavailable

7

Toro 49108-2011

Cover-Valve Chamber

$

$

Currently unavailable

8

Toro 14025-2143

Cover

$

$

Currently unavailable

9

Toro 11009-2502

Gasket

$

$

Currently unavailable

10

Toro 314405-3092A

Screw

$

$

Currently unavailable

11

Toro 130G0616

Bolt-Flanged (6X16)

$

$

Currently unavailable

12

Kawasaki 92059-2142

Tube

$

$

Not available

13

Kawasaki 14025-2040

Cover

$

$

Not available

14

Toro 11009-2339

Gasket

$

$

Currently unavailable

15

Kawasaki 14069-2062

Breather

$

$

Not available

16

Kawasaki 315501-5381A

Bolt
(Superseded to 92002-2087)

$0.99

$

In Stock, only 4 left!

0

17

Toro 312200-7415-02

Gasket

$

$

Currently unavailable

53

Kawasaki 49120-6024

Crankcase Complete (includes items 54 & 55).
(Superseded to 49120-6051)

$

$

Not available

54

Kawasaki 49002-2070

Guide-Intake Valve
(Superseded to 49002-2012)

$

$

Not available

55

Toro 49002-2071

Guide-Exhaust Valve

$

$

Currently unavailable

58

Toro 92004-2082

Stud

$

$

Currently unavailable

60

Kawasaki 92004-2083

Stud

$1.99

$

Usually ships in 2-5 days

0

62

Kawasaki 92049-2096

Oil Seal

$8.99

$

In Stock, Qty 9

0

63

Kawasaki 92049-2097

SEAL-OIL (VC6X10X2.6)

$2.49

$

In Stock, Qty 20+

0

64

Kawasaki 92066-2096

Plug

$1.99

$

In Stock, only 2 left!

0

65

Toro 317196-6812-00

Clip

$

$

Currently unavailable

67

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

80

Toro 59071-2062

Joint

$

$

Currently unavailable

99

Kawasaki 26001-2113

Harness

$

$

Not available

100

Toro 313646-8192-00

Clamp

$

$

Currently unavailable

101

Toro 59066-2368-9H

Fan Housing

$

$

Currently unavailable

102

Toro 59066-2295-9H

Fan Housing

$

$

Currently unavailable

103

Toro 49089-2181-9H

Shroud

$

$

Currently unavailable

104

Toro 49089-2199-9H

Shroud

$

$

Currently unavailable

105

Kawasaki 130B0610

BOLT-FLANGED (6X10)
(Superseded to 130AA0610)

$0.99

$

In Stock, Qty 20+

0

106

Toro 55020-2054

Guard

$

$

Currently unavailable

107

Kawasaki 130B0635

Bolt-Flanged (6X35)
(Superseded to 130AA0635)

$1.99

$

In Stock, Qty 12

0

108

Kawasaki 49080-2123-YK

Pulley

$

$

Not available

109

Toro 130G0812

Bolt-Flanged (8X12)

$

$

Currently unavailable

110

Kawasaki 49088-2212-YK

Recoil Starter ASM

$175.99

$

In Stock, only 4 left!

0

111

Kawasaki 92025-2161

Shim

$2.49

$

Usually ships in 2-5 days

0

112

Kawasaki 14024-2028-9H

Cover

$10.99

$

Usually ships in 2-5 days

0

113

Toro 234b0408

Screw

$

$

Currently unavailable

114

Kawasaki 16169-2074

LINK-Choke
(Superseded to 16169-2126)

$

$

Not available

115

Kawasaki 16171-2001

Link
(Superseded to 16171-2083)

$

$

Not available

116

Toro 92081-2213

Spring

$

$

Currently unavailable

117

Kawasaki 21187-2052

Arm ASM
(Superseded to 21187-2001)

$

$

Not available

118

Kawasaki 92002-2269

Bolt (6X28)

$1.99

$

In Stock, Qty 5

0

119

Toro 311B0600

NUT-HEX (6mm)

$

$

Currently unavailable

120

Kawasaki 411B0600

Washer-Plain (6mm)
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

121

Toro 49113-2071

Control Panel Assy (includes items 122, 123,124, 125 & 126)

$

$

Currently unavailable

122

Kawasaki 220B0425

Screw 4 x 25
(Superseded to 220AA0425)

$

$

Not available

123

Toro 314401-5321B

Spring

$

$

Currently unavailable

124

Kawasaki 310701-1225A

Bolt
(Superseded to 92150-2182)

$0.99

$

In Stock, Qty 20+

0

125

Kawasaki 92037-2020

Clamp

$1.99

$

Usually ships in 2-5 days

0

126

Kawasaki 92081-2316

Spring

$

$

Not available

127

Kawasaki 92144-2008

Spring

$

$

Not available

128

Kawasaki 92027-2071

Collar

$2.49

$

Usually ships in 2-5 days

0

129

Toro 311509-3595-00

Washer

$

$

Currently unavailable

130

Kawasaki 112B0650

Bolt

$0.99

$

Usually ships in 2-5 days

0

131

Toro 461F0600A

Lockwasher

$

$

Currently unavailable

136

Kawasaki 13107-2091

Shaft
(Superseded to 13107-2232)

$

$

Not available

137

Kawasaki 92055-2072

O-Ring

$1.49

$

In Stock, Qty 20+

0

138

Kawasaki 92015-1193

Nut
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

147

Toro 39003-2062

Arm-Pivot

$

$

Currently unavailable

148

Toro 41OB0600

Washer

$

$

Currently unavailable

149

Kawasaki 554A0600

Pin-Snap (1.2 X 21.2)
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0

159

Toro 21193-2001

Flywheel Complete

$

$

Currently unavailable

160

Kawasaki 21121-2008

Coil
(Superseded to AM101065)

$

$

Not available

161

Kawasaki 59031-2003

Charging Coil
(Superseded to AM101067)

$

$

Not available

162

Toro 21119-2095

Igniter

$

$

Currently unavailable

163

Toro 310702-8137A

Bracket

$

$

Currently unavailable

164

Toro 26011-2119

Lead Wire

$

$

Currently unavailable

165

Kawasaki 130B0525

Bolt
(Superseded to 130AA0525)

$0.99

$

In Stock, only 1 left!

0

166

Toro 224b0620

Screw

$

$

Currently unavailable

167

Toro 234b0408

Screw

$

$

Currently unavailable

168

Kawasaki 92071-2099

Grommet

$

$

Not available

169

Kawasaki 92071-2100

Grommet

$1.99

$

In Stock, only 1 left!

0

170

Toro 92037-2158

Clamp

$

$

Currently unavailable

171

Kawasaki 311901-8161A

Clamp
(Superseded to 92170-2029)

$6.49

$

Usually ships in 2-5 days

0

173

Kawasaki 314G1800

Nut

$2.49

$

In Stock, only 2 left!

0

174

Kawasaki 92022-2178

Washer

$2.99

$

Usually ships in 2-5 days

0

178

Kawasaki 92070-2072

Spark Plug
(Superseded to BMR4A)

$3.99

$

In Stock, Qty 11

0

180

Toro 21163-2070

Electric Starter Assy-see section 9-7 for parts breakdown

$

$

Currently unavailable

182

Kawasaki 92002-2278

Bolt

$1.99

$

In Stock, only 1 left!

0

183

Toro 317B0800

Nut-Hex, Small (8mm)

$

$

Currently unavailable

184

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

185

Kawasaki 130B0614

Bolt 6 x 14
(Superseded to 130AA0614)

$0.99

$

In Stock, Qty 10

0
