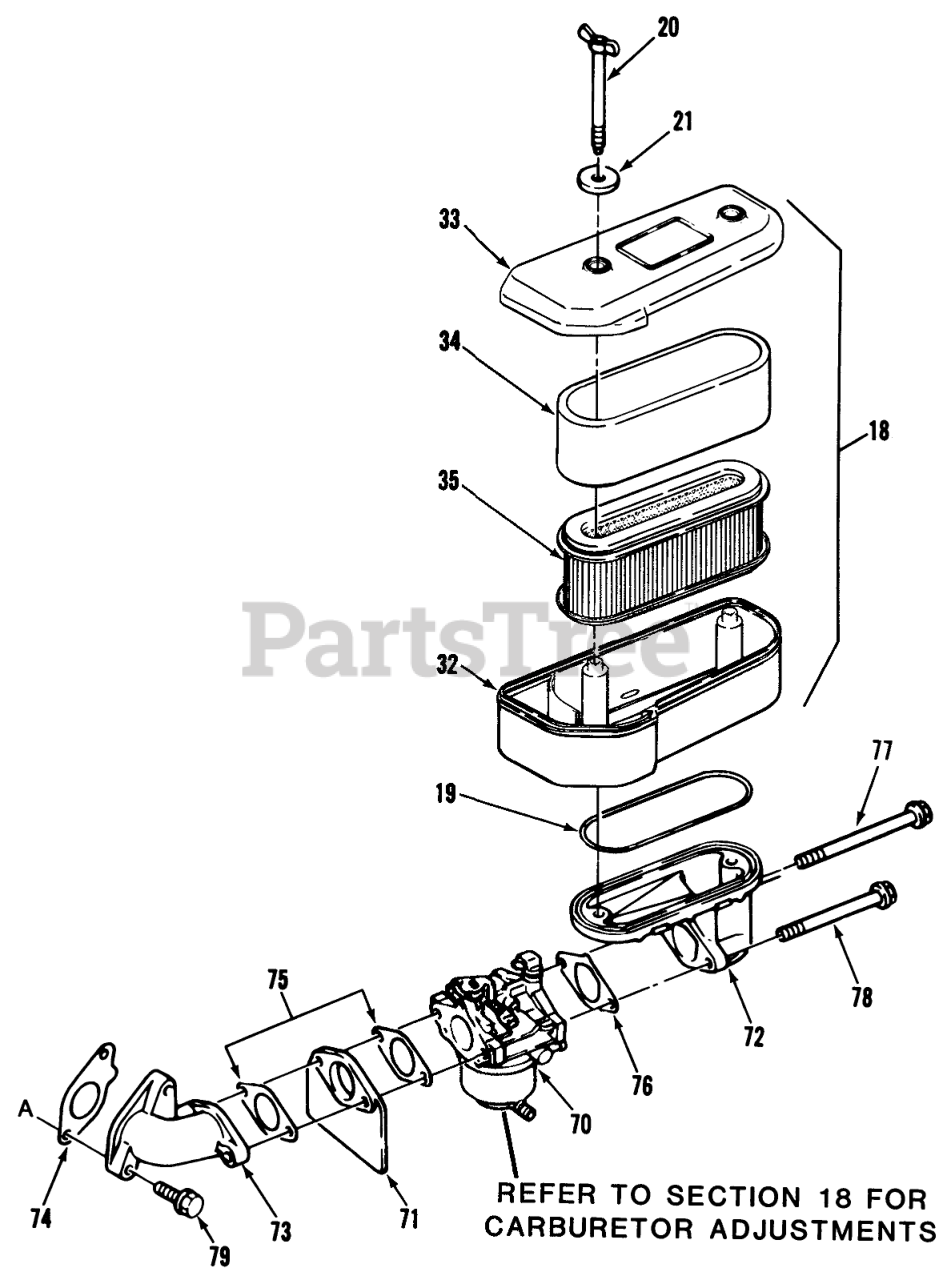

C3-12K501 (112-C) - Toro Rear-Engine Riding Mower (1987) AIR FILTER & CARBURETOR Parts Diagram

Rear-Engine Riding Mower

AIR FILTER & CARBURETOR Parts Diagram

  • Title

18

Toro 11010-2291

Air Filter Assy (includes items 32, 33, 34 & 35)

$

$

Currently unavailable

19

Kawasaki 11009-2443

Gasket
(Superseded to 11009-2340)

$2.99

$

In Stock, only 1 left!

0

20

Kawasaki 92002-2230

Bolt

$3.99

$

In Stock, only 2 left!

0

21

Kawasaki 92022-2220

Washer
(Superseded to 92200-0423)

$

$

Not available

32

Toro 11011-2174

CASE-Air Filter

$

$

Currently unavailable

33

Kawasaki 11012-2192

CAP-Air Filter

$

$

Not available

34

Kawasaki 11013-2020

Element

$3.99

$

In Stock, Qty 12

0

35

Kawasaki 11013-2021

Element

$20.99

$

In Stock, Qty 11

0

70

Toro 15001-2676

Carburetor Assy-see section 9-6 for parts breakdown

$

$

Currently unavailable

71

Kawasaki 16073-2091

Insulator

$

$

Not available

72

Kawasaki 16060-2108

Pipe-Intake

$

$

Not available

73

Kawasaki 16060-2109

Pipe-Intake
(Superseded to M88502)

$

$

Not available

74

Kawasaki 11009-2342

Gasket
(Superseded to 11060-2337)

$

$

Not available

75

Kawasaki 11009-2343

Gasket
(Superseded to 11060-2339)

$1.49

$

In Stock, Qty 20+

0

76

Kawasaki 11009-2344

Gasket
(Superseded to 11060-2338)

$0.99

$

In Stock, only 4 left!

0

77

Kawasaki 92002-2254

Bolt

$1.99

$

In Stock, only 4 left!

0

78

Toro 92002-2253

Bolt

$

$

Currently unavailable

79

Toro 130G0825

Bolt-Flanged (8X25)

$

$

Currently unavailable
