C1-20OE01 (520-HC) - Toro Garden Tractor (1988) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

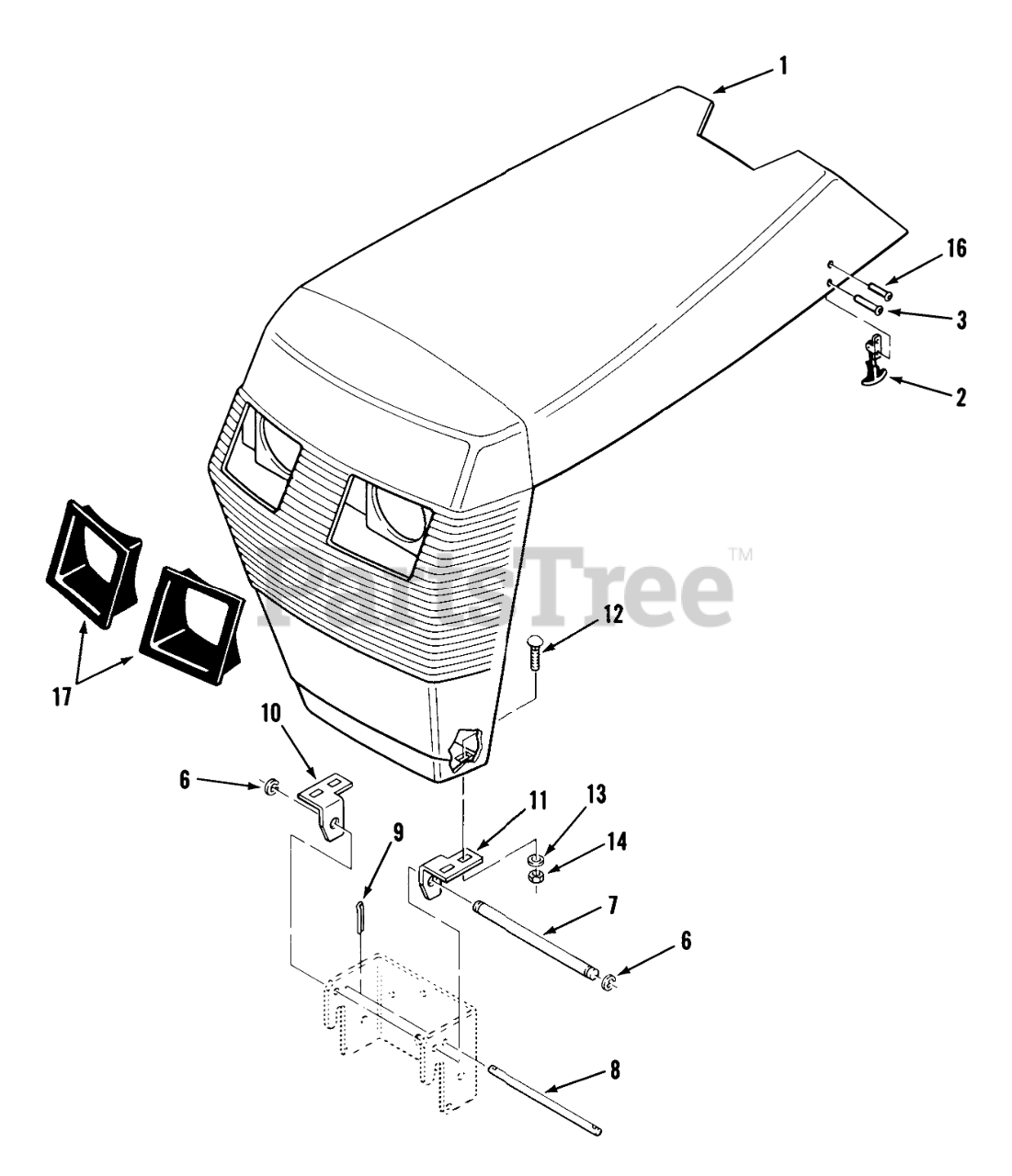

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 113966

Hood 516, 518 & 520-HC
(Superseded to 114696)

$

$

Not available

1

Toro 113968

Hood
(Superseded to 114709)

$

$

Not available

2

Toro 106825

Hood Latch (includes 109236 Handle Ass-y & 109237 Latch Keeper)

$53.99

$

Usually ships in 3-6 days

0

3

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

6

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

7

Toro 101710

GRILL PIVOT ROD

$

$

Not available

8

Toro 101850

ROD-HOOD STOP

$21.99

$

Usually ships in 3-6 days

0

9

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

10

Toro 109145

BRKT-GRILL PIVOT R
(Superseded to 109145-01)

$34.99

$

Usually ships in 3-6 days

0

11

Toro 109146

BRKT-GRILL PIVOT R (NS)
(Superseded to 109146-01)

$

$

Not available

12

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

13

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

16

Toro 923784

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

17

Toro 109080

HEADLIGHT BEZEL ASSY.(SERVICE)

$

$

Not available

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0
