C1-20OE01 (520-HC) - Toro Garden Tractor (1988) HYDRAULIC SYSTEM-520-H & 520-HC Parts Diagram

Garden Tractor

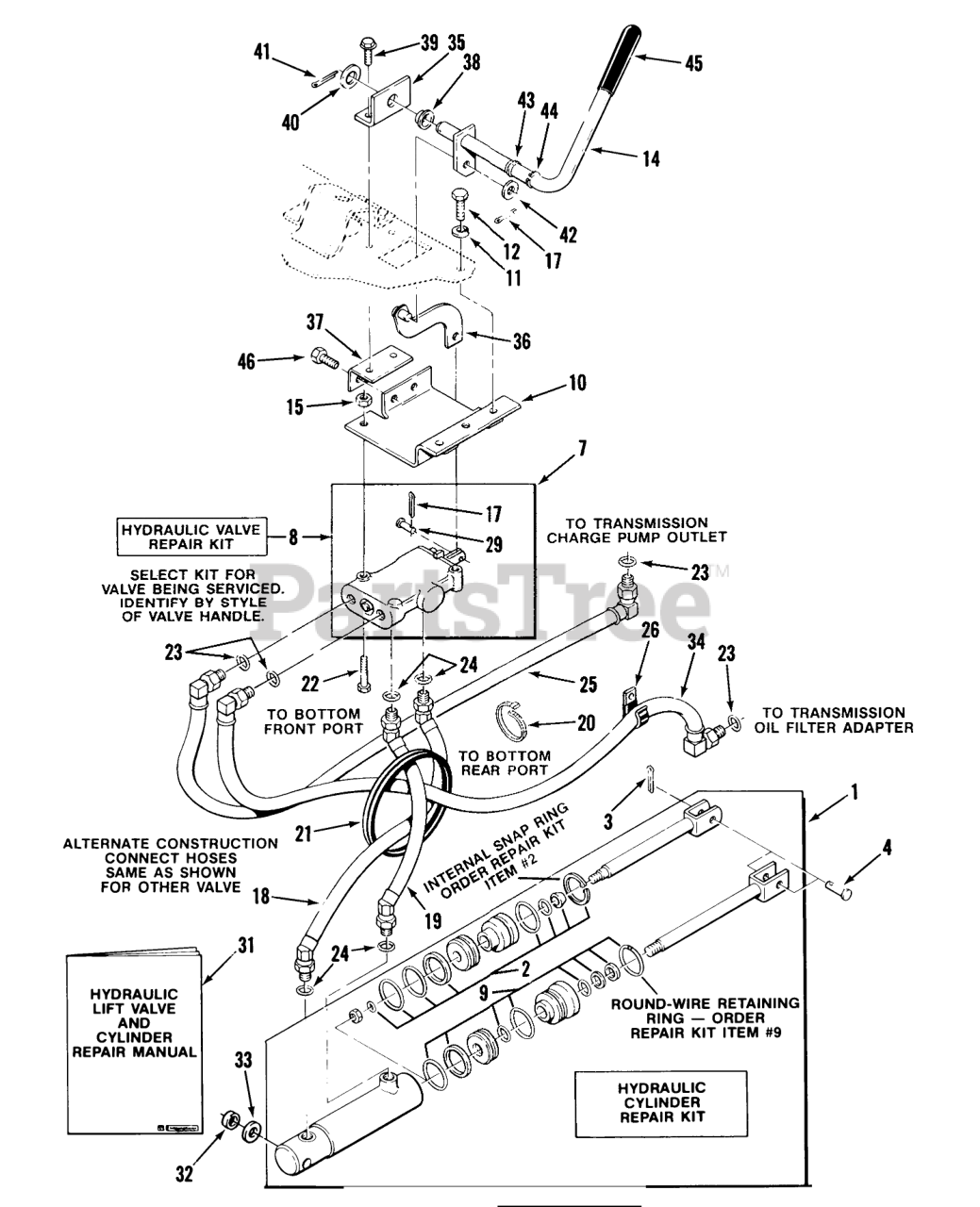

HYDRAULIC SYSTEM-520-H & 520-HC Parts Diagram

  • Title

1

Toro 108872

CYLINDER

$

$

Not available

1

Toro 114055

Hydraulic Cylinder 520-HC

$

$

Not available

2

Toro 101699

S/A O-RING&GASKET AS

$159.99

$

Usually ships in 3-6 days

0

3

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 932997

CLEVIS PIN

$

$

Not available

7

Toro 114000

ASS'Y-VALVE

$

$

Not available

8

Toro 109081

S/A 110068 VALVE

$

$

Not available

9

Toro 109088

S/A 108872 HYD CYL

$

$

Not available

10

Toro 113951

ASS'Y-VALVE SUPPO B

$

$

Not available

11

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

12

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

14

Toro 114584

ASSY-LEVER LIFT

$

$

Not available

15

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 12

0

16

Toro 109082

C-HOOK

$

$

Not available

17

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

18

Toro 110124

Hose ASM-Hydraulic
(Superseded to 99-5372)

$188.99

$

Usually ships in 3-6 days

0

19

Toro 110125

Hose ASM-Hydraulic
(Superseded to 99-5373)

$188.99

$

Usually ships in 3-6 days

0

20

Toro 100571

PLASTIC TIE

$

$

Not available

21

Toro 106267

GROMMET

$

$

Not available

22

Toro 908009

Bolt 1/4-20 x 2
(Superseded to 321-11)

$0.99

$

In Stock, Qty 20+

0

23

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

24

Toro 973310

O RING

$5.99

$

In Stock, only 2 left!

0

25

Toro 110096

ASSY HOSE HYDRAULIC

$212.99

$

Usually ships in 3-6 days

0

26

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

29

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

31

Toro 810242R3

Repair Manual

$

$

Currently unavailable

32

Toro 110126

Spacer
(Superseded to 83-3060)

$5.49

$

Usually ships in 3-6 days

0

32

Toro 107691

SPACER

$

$

Not available

33

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

33

Toro 920232

WASHER
(Superseded to 9202324)

$1.99

$

In Stock, only 3 left!

0

34

Toro 110504

ASSY HYD HOSE
(Superseded to 107-9295)

$148.99

$

Usually ships in 3-6 days

0

35

Toro 113953

SUPPORT-LEVER ASS B

$

$

Not available

36

Toro 114875

ASS'Y-BAR LIFT B

$

$

Not available

37

Toro 113954

BRACKET-SUPPORT B

$

$

Not available

38

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

39

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

40

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

41

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

42

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

43

Toro 5666

BUSHING-NYLINER

$6.49

$

In Stock, only 4 left!

0

44

Toro 106649

Grip Ring
(Superseded to 32151-11)

$11.99

$

In Stock, Qty 5

0

45

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

46

Toro 926693

Bolt
(Superseded to 9266934)

$8.99

$

In Stock, only 2 left!

0
