C1-20OE01 (520-HC) - Toro Garden Tractor (1988) ELECTRICAL SYSTEM Parts Diagram

Garden Tractor

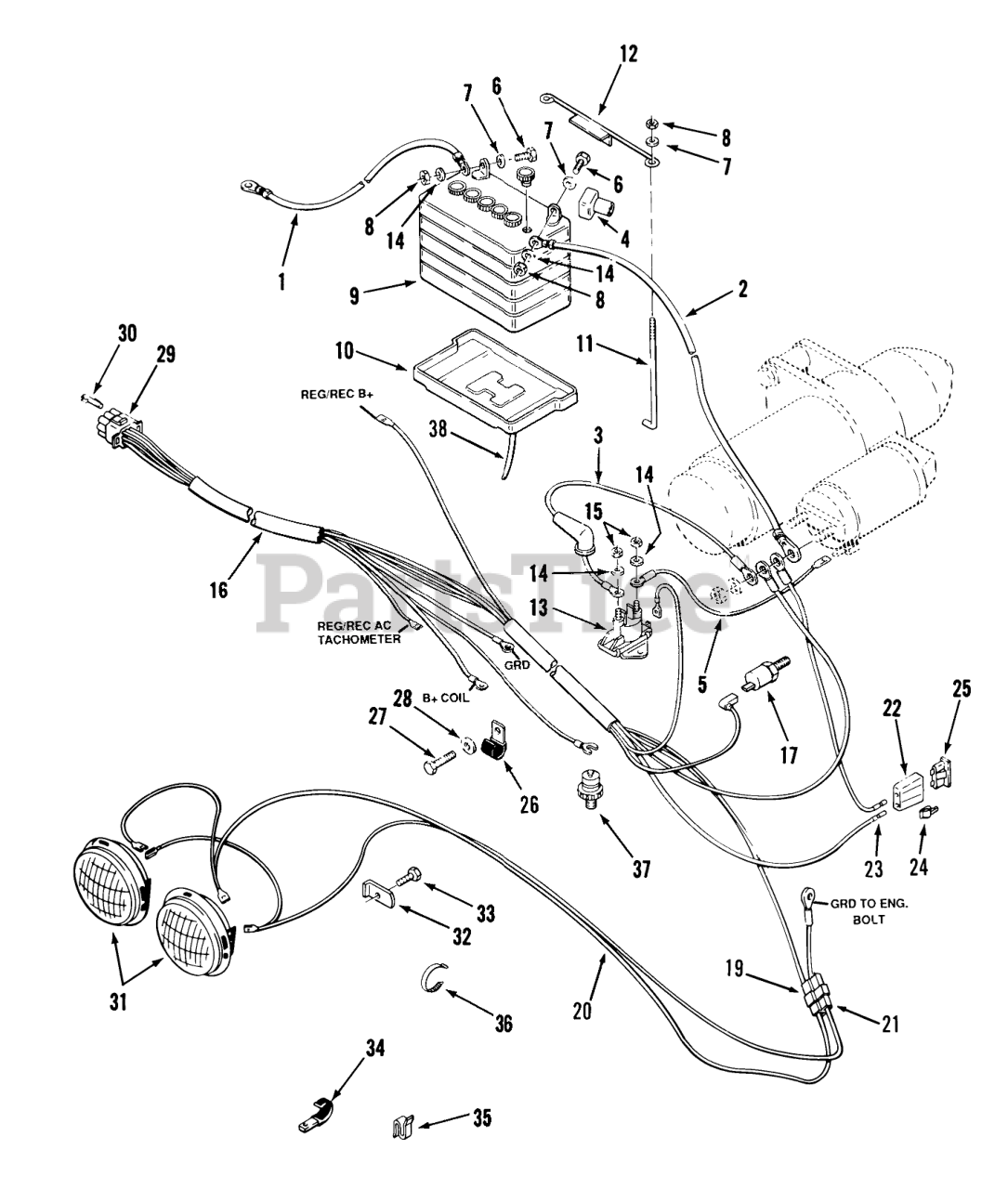

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 114210

ASS'Y-WIRE

$51.99

$

Usually ships in 3-6 days

0

2

Toro 113925

ASS'Y-WIRE

$73.99

$

Usually ships in 3-6 days

0

3

Toro 114212

ASS'Y-WIRE

$

$

Not available

4

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

5

Toro 114211

ASS'Y-WIRE

$

$

Not available

6

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

7

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

8

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

9

Toro 105842

Battery
(Superseded to 104-8162)

$

$

Not available

9

Toro 110791

Battery Maintenance Free 416

$

$

Not available

9

Toro 112816

Battery
(Superseded to 104-8162)

$

$

Not available

10

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 1 left!

0

11

Toro 113969

HOOK-BATTERY RETAIN

$14.99

$

In Stock, only 2 left!

0

12

Toro 113010

HOLDDOWN-BATTERY

$26.99

$

In Stock, only 4 left!

0

13

Toro 111674

SOLENOID-STARTER

$75.99

$

Usually ships in 3-6 days

0

14

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

15

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

16

Toro NN10294

Engine Wiring Harness

$

$

Not available

17

Toro NN10274

HIGH TEMPERATURE

$

$

Not available

18

Toro NN10291

RECEPTACLE TERMINAL

$

$

Not available

19

Toro NN10278

MALE CONNECTOR

$

$

Not available

20

Toro 114052

HARNESS-HEADLIGHT

$

$

Not available

20

Toro 114045

HARNESS-HEAD LIGHT

$

$

Not available

21

Toro 109357

CONNECTOR BODY

$

$

Not available

22

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

23

Toro 108895

TERMINAL FUSE

$4.49

$

Usually ships in 3-6 days

0

23

$7.49

$

Usually ships in 3-6 days

0

25

Toro NN10277

FUSE-30 AMP

$9.99

$

Usually ships in 3-6 days

0

26

Toro NN10348

Clip
(Superseded to 71-6220)

$

$

Not available

27

Toro NN10399

Bolt
(Superseded to 82-1540)

$

$

Not available

28

Toro NN10425

LOCKWASHER 1/4 IT

$

$

Not available

29

Toro NN10281

CONNECTOR CAP

$

$

Not available

30

Toro NN10279

CONTACT SOCKET

$7.99

$

In Stock, only 2 left!

0

31

Toro 110792

HEAD LAMP
(Superseded to 99-7310)

$58.99

$

Usually ships in 3-6 days

0

31

Toro 102881

HEADLAMP

$

$

Not available

32

Toro 109459

LOCK-HEADLIGHT

$6.99

$

In Stock, Qty 7

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

34

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

35

Toro 3023

SPEED CLIP

$

$

Not available

36

Toro 100571

PLASTIC TIE

$

$

Not available

37

Toro NN10273

LOW OIL PRESSURE

$

$

Not available

38

Toro 114720

TUBE-21" BATTERY DRAIN

$6.99

$

Usually ships in 3-6 days

0

53

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0
