C1-20OE01 (520-HC) - Toro Garden Tractor (1988) CLUTCH, BRAKE & SPEED CONTROL LINKAGE Parts Diagram

Garden Tractor

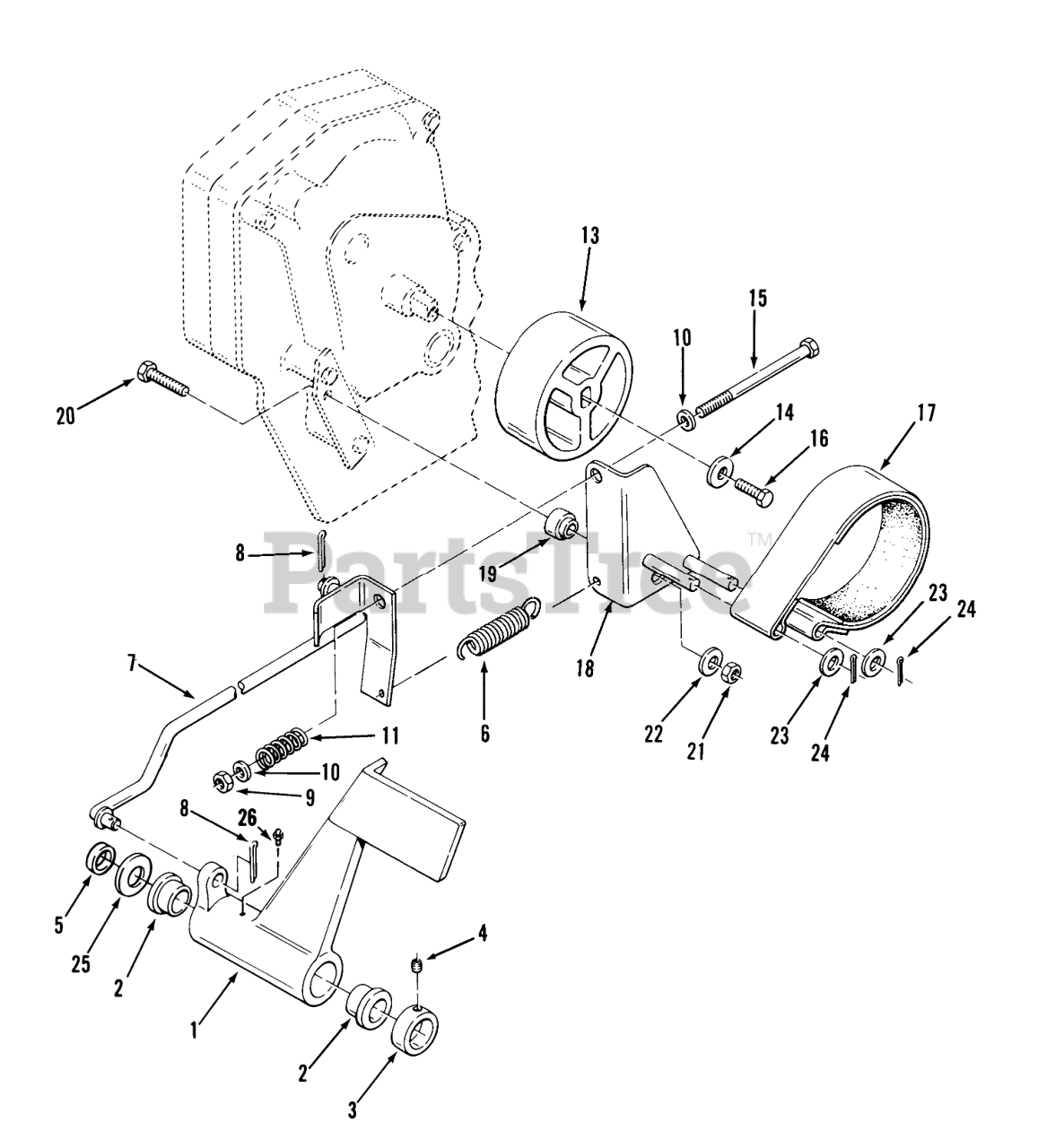

CLUTCH, BRAKE & SPEED CONTROL LINKAGE Parts Diagram

  • Title
1

Toro 114099

Brake/Return To Neutral Pedal
(Superseded to 94-3707-01)

$

$

Not available

2

Toro 6254

BUSHING

$20.99

$

In Stock, only 2 left!

0

3

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

4

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

5

Toro 102263

SPACER FRONT PULL R

$

$

Not available

5

Toro 110126

Spacer
(Superseded to 83-3060)

$5.49

$

Usually ships in 3-6 days

0

6

Toro 103125

SPRING

$9.99

$

In Stock, only 3 left!

0

7

Toro 110950

BRAKE ROD ASSY R

$

$

Not available

7

Toro 109372

ASY BRAK RD WAR

$

$

Not available

8

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

9

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

11

Toro 108680

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

13

Toro 106719

DRUM-BRAKE

$109.99

$

Usually ships in 3-6 days

0

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

15

Toro 908144

BOLT
(Superseded to 323-23)

$5.49

$

In Stock, Qty 16

0

16

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

17

Toro 109371

ASSY-BRAKE BAND

$174.99

$

Usually ships in 3-6 days

0

18

Toro 109366

Brake Pivot Arm
(Superseded to 78-7740)

$

$

Not available

19

Toro 109356

BUSHING-BRAKE PIVOT

$

$

Not available

20

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

22

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

23

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 14

0

24

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

25

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

26

Toro 1030

Zerk

$

$

Not available
