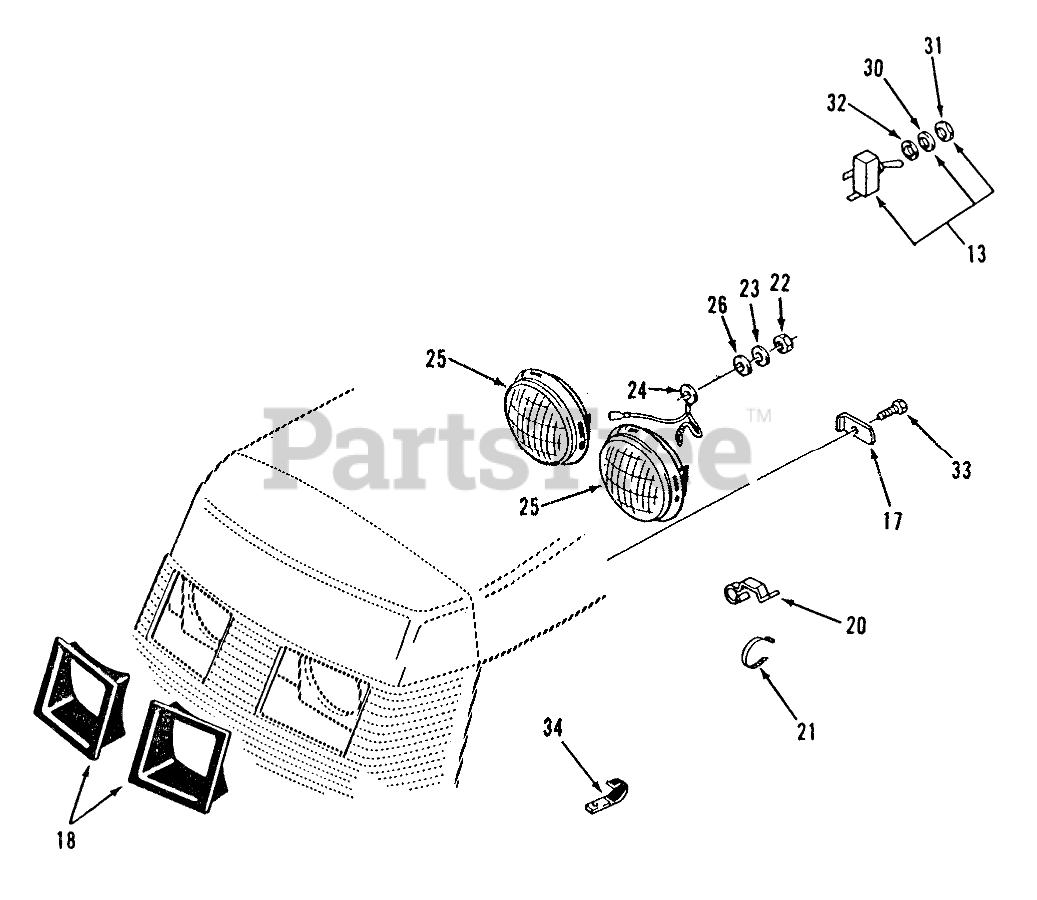

C1-12R801 (512-D) - Toro Lawn Tractor (1986) ELECTRICAL SYTEM Parts Diagram

Lawn Tractor

ELECTRICAL SYTEM Parts Diagram

  • Title

13

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

17

Toro 109459

LOCK-HEADLIGHT

$7.99

$

In Stock, Qty 7

0

18

Toro 109494

BEZEL-HEADLIGHT, RH

$

$

Not available

18

Toro 109495

BEZEL-HEADLIGHT, LH

$

$

Not available

20

Toro 8519

CLIP-WIRE

$

$

Not available

21

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

23

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

24

Toro 110930

ASSY GROUND WIRE

$

$

Not available

25

Toro 102881

HEADLAMP

$

$

Not available

26

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

30

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

31

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

32

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

33

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 5

0

34

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

36

Toro 518105

TERMINAL 10

$8.99

$

Usually ships in 3-6 days

0

37

Toro 518104

Terminal

$

$

Currently unavailable
