C1-12R801 (512-D) - Toro Lawn Tractor (1986) DRIVE BELT AND PULLEYS Parts Diagram

Lawn Tractor

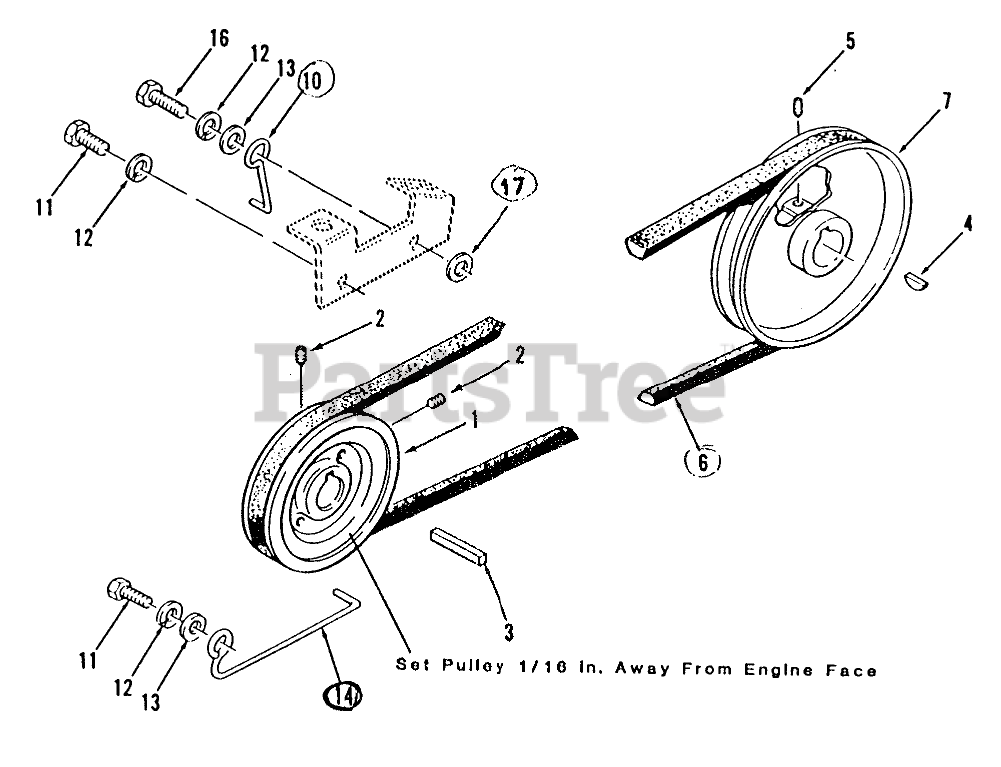

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 7466

PULLEY

$184.99

$

Usually ships in 3-6 days

0

2

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

4

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$6.49

$

In Stock, only 1 left!

0

5

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

6

Toro 108502

V-BELT TRANS DRIVE

$72.99

$

Usually ships in 3-6 days

0

7

Toro 106165

PULLEY-TRANSMISSION

$148.99

$

Usually ships in 3-6 days

0

10

Toro 110667

GUIDE BELT TOP

$

$

Not available

11

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

12

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

13

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

14

Toro 111264

Belt Guide-Bottom 308-8 Only

$

$

Not available

16

Toro 112841

CAP

$

$

Not available

17

Toro 107546

SPACER-SHORT TIGHT

$

$

Not available
