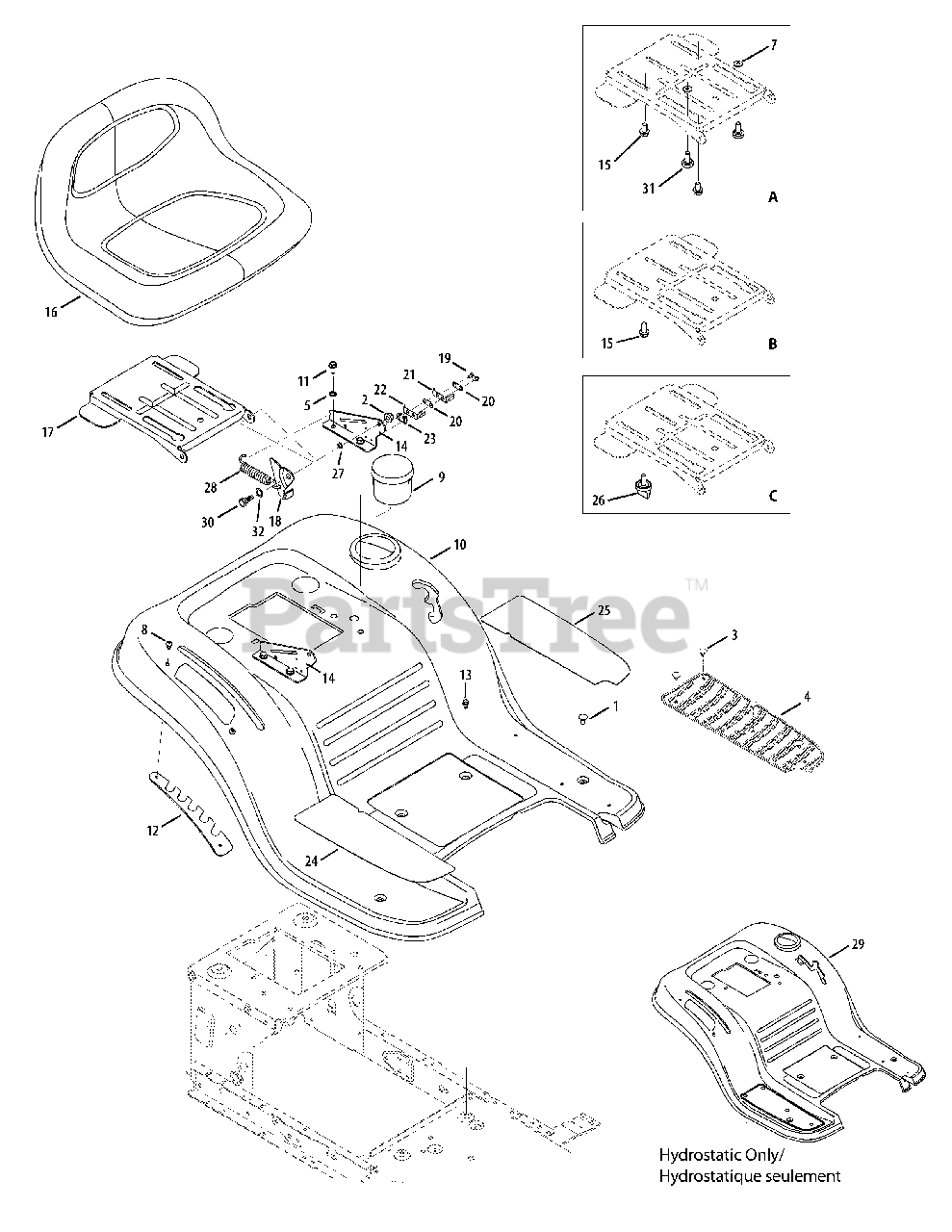

C 79 GF (13AN79GF897) - Columbia 38" Lawn Tractor (2011) Seat & Fender Parts Diagram

38" Lawn Tractor

Seat & Fender Parts Diagram

  • Title

1

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 726-04072A

Ratchet Clip

$3.99

$

In Stock, Qty 13

0

4

White Outdoor 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

4

White Outdoor 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

5

White Outdoor 736-0607

Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 936-0108

Flat Washer .510 x .750 x .033

$6.99

$

In Stock, only 4 left!

0

7

White Outdoor 936-0300

Flat Washer .405 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 936-0140

Flat Washer .395 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

8

White Outdoor 710-05070

Tap Screw 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

9

White Outdoor 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

10

White Outdoor 783-04587D

Fender

Variations

White Outdoor 783-04587D-0638

FENDER-TRANS LT-5 - MTD/TROY-BILT RED (0638)

$421.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0606

FENDER-TRANS LT-5 - MAJESTIC ORANGE (0606)

$421.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0637

FENDER-TRANS LT-5 - POWDER BLACK (0637)

$421.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0650

FENDER-TRANS LT-5 - RED METALLIC (0650)

$421.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0662

FENDER-TRANS LT-5 - OYSTER GRAY (0662)

$341.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0665

FENDER-TRANS LT-5 - YARDMAN GREEN (0665)

$366.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0691

FENDER-TRANS LT-5 - BLACK JACK (0691)

$421.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0709

FENDER-TRANS LT-5 - MASTERCRAFT GREEN (0709)

$341.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-4021

FENDER-TRANS LT-5 - CUB YELLOW 2 (4021)

$385.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-4038

FENDER-TRANS LT-5 - DAY ORANGE (4038)

$311.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-4043

FENDER-TRANS LT-5 - CRAFTSMAN METALLIC GRAY (4043)

$392.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-4044

FENDER-TRANS LT-5 - CRAFTSMAN RED (4044)

$421.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04587D-0729

FENDER-TRANS LT-5 - STORM GRAY (0729)

$

$

Not available

$334.99

$

Usually ships in 3-6 days

0

11

White Outdoor 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 783-04843

Lift Adjustment Bracket

Variations

White Outdoor 783-04843-0637

Lift Adjust Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0606

BRACKET:LIFT:ADJ - MAJESTIC ORANGE (0606)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0638

BRACKET:LIFT:ADJ - MTD/TROY-BILT RED (0638)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0691

BRACKET:LIFT:ADJ - BLACK JACK (0691)

$32.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-0709

BRACKET:LIFT:ADJ - MASTERCRAFT GREEN (0709)

$29.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04843-4044

BRACKET:LIFT:ADJ - CRAFTSMAN RED (4044)

$37.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

13

White Outdoor 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 783-1489D

Seat Mounting Bracket

Variations

White Outdoor 783-1489D-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489D-0691

BRACKET-MOUNT SEAT - BLACK JACK (0691)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489D-0606

BRACKET-MOUNT SEAT - MAJESTIC ORANGE (0606)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489D-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489D-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489D-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489D-0709

BRACKET-MOUNT SEAT - MASTERCRAFT GREEN (0709)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489D-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

White Outdoor 783-1489D-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

White Outdoor 783-1489D-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-04482

Screw 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 757-04099

Seat, Low Back
(Superseded to 757-05230)

$194.99

$

In Stock, only 1 left!

0

16

White Outdoor 757-04083

Seat, Medium Back
(Superseded to 757-05229)

$231.99

$

Usually ships in 3-6 days

0

16

White Outdoor 757-04088

Seat, High Back
(Superseded to 757-04088A)

$263.99

$

In Stock, only 3 left!

0

17

White Outdoor 783-04081D

Seat Pivot Bracket

Variations

White Outdoor 783-04081D-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081D-0606

BRACKET-SEAT PIVOT - MAJESTIC ORANGE (0606)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081D-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081D-0691

Seat Pivot Bracket - BLACK JACK (0691)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081D-4008

BRACKET-SEAT PIVOT - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081D-0709

BRACKET-SEAT PIVOT - MASTERCRAFT GREEN (0709)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

18

White Outdoor 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

19

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Screw #8-.50

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

21

White Outdoor 925-1303

Spring Switch

$6.49

$

In Stock, Qty 7

0

22

White Outdoor 725-1439

Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

23

White Outdoor 726-0278

Insulator Plate

$6.99

$

In Stock, Qty 10

0

24

White Outdoor 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

25

White Outdoor 723-04026

Foot Pad, Abrasive, LH

$33.99

$

Usually ships in 3-6 days

0

26

White Outdoor 720-04061

Knob

$5.49

$

In Stock, Qty 20+

0

27

White Outdoor 736-0242

Cupp. Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 732-1184

Extension Spring .84 Dia. x 4.6

$11.99

$

In Stock, only 1 left!

0

29

White Outdoor 783-04593D

Fender - Hydrostatic
(Superseded to 783-04593F)

Variations

White Outdoor 783-04593D-0606

FENDER-HYDRO - MAJESTIC ORANGE (0606)

$325.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593D-0638

FENDER-HYDRO - MTD/TROY-BILT RED (0638)

$402.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593D-0650

FENDER-HYDRO - RED METALLIC (0650)

$325.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593D-0691

FENDER-HYDRO - BLACK JACK (0691)

$402.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04593D-4043

FENDER-HYDRO - CRAFTSMAN METALLIC GRAY (4043)

$325.99

$

Usually ships in 3-6 days

0

$325.99

$

Usually ships in 3-6 days

0

30

White Outdoor 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 738-04012A

Shoulder Screw .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

32

White Outdoor 936-0108

Flat Washer .510 x .75 x .033

$6.99

$

In Stock, only 4 left!

0
