C 79 GF (13AN79GF897) - Columbia 38" Lawn Tractor (2011) Drive & Rear Wheel Parts Diagram

38" Lawn Tractor

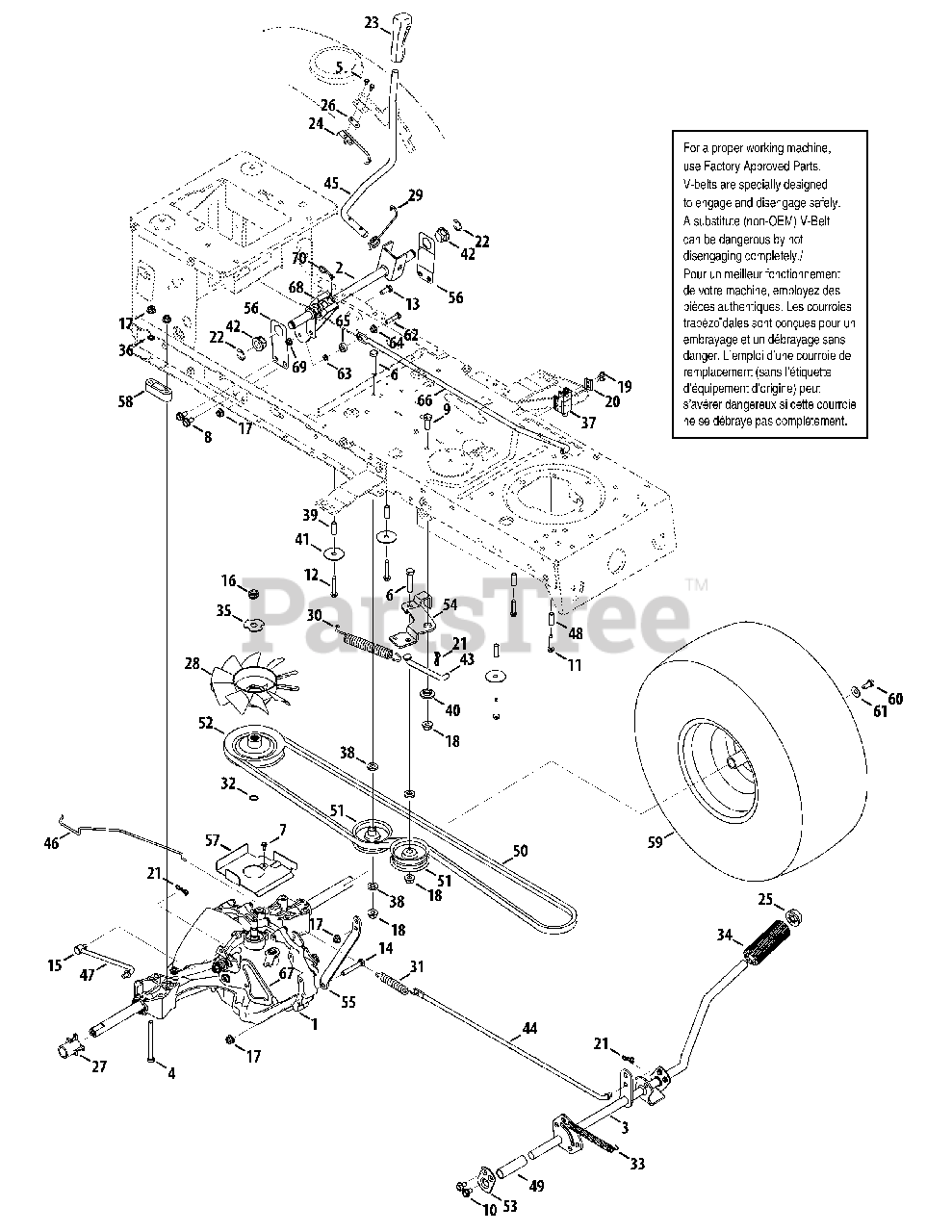

Drive & Rear Wheel Parts Diagram

  • Title

1

White Outdoor 918-04892A

Transmission Ass’y
(Superseded to 918-04892C)

$1108.99

$

Usually ships in 3-6 days

0

2

White Outdoor 647-04200

Hydro Hand Control Ass’y
(Superseded to 647-04200A)

$24.99

$

Usually ships in 3-6 days

0

3

White Outdoor 647-04202A

Hydro Pedal Assembly
(Superseded to 647-04202C)

Variations

White Outdoor 647-04202A-0637

PEDAL ASSY-DRIVE - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 710-1266

Hex Screw 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Screw #8-.50

$4.49

$

In Stock, Qty 15

0

6

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

White Outdoor 910-0224

Screw #10-16 x .50

$3.99

$

In Stock, only 2 left!

0

8

White Outdoor 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0514

Hex Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0604A

Hex Screw 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

12

White Outdoor 710-1026

Screw 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

13

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 710-3103

Screw, #10-24 x .75

$4.49

$

In Stock, only 4 left!

0

15

White Outdoor 711-04448

Fer rule

$10.99

$

In Stock, only 2 left!

0

16

White Outdoor 912-0346

Jam L-Nut 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 8

0

17

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-04065

Flange Locknut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 728-04021

Rivet

$3.99

$

In Stock, only 1 left!

0

20

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

21

White Outdoor 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

22

White Outdoor 716-0106A

"E" Ring .625 Dia.

$5.49

$

In Stock, only 2 left!

0

23

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

24

White Outdoor 725-04249

Hydro Spring Switch

$10.99

$

Usually ships in 3-6 days

0

25

White Outdoor 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

Usually ships in 3-6 days

0

26

White Outdoor 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

27

White Outdoor 731-08237

Sleeve, .765 x 2.11" Lg.

$3.99

$

In Stock, only 3 left!

0

28

White Outdoor 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

29

White Outdoor 732-04225

Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

30

White Outdoor 732-04229

Ext. Spring .75 Dia. x 6.02

$20.99

$

Usually ships in 3-6 days

0

31

White Outdoor 732-0716D

Ext. Spring .59 OD x 4.00 Lg.

$13.99

$

In Stock, only 2 left!

0

32

White Outdoor 732-0729

Wire Ring

$4.99

$

In Stock, Qty 5

0

33

White Outdoor 732-0963

Extension Spring .50 dia. x 6.37

$9.99

$

In Stock, only 4 left!

0

34

White Outdoor 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

35

White Outdoor 736-04263

LockwasherTrans Hydro

$6.99

$

In Stock, only 3 left!

0

36

White Outdoor 736-0607

Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

37

White Outdoor 925-04039

Interlock Switch

$24.99

$

In Stock, Qty 9

0

38

White Outdoor 736-3010

Flat Washer .407 x .812 x .135 HT

$4.99

$

In Stock, only 2 left!

0

39

White Outdoor 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

40

White Outdoor 747-04430

Control Speed Se lec tor Rod

$21.99

$

Usually ships in 3-6 days

0

41

White Outdoor 736-0430

Flat Washer .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

42

White Outdoor 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 20+

0

43

White Outdoor 747-04283B

Declutching Rod

$

$

Not available

44

White Outdoor 747-05242

Brake Rod
(Superseded to 747-05242A)

$17.99

$

Usually ships in 3-6 days

0

45

White Outdoor 747-04296A

Hydro Control Handle

$41.99

$

Usually ships in 3-6 days

0

46

White Outdoor 747-05245

Hydro Bypas Rod

$9.99

$

In Stock, only 1 left!

0

47

White Outdoor 747-04407A

Hydro Control Rod

$17.99

$

Usually ships in 3-6 days

0

48

White Outdoor 750-0566A

Spacer, .260 x .375 x 1.030" Lg.

$9.99

$

In Stock, only 1 left!

0

49

White Outdoor 750-0802

Spacer, .640 x .76 x 2.6" Lg.

$6.99

$

Usually ships in 3-6 days

0

50

White Outdoor 954-04252

V-Belt 4L SEC x 84.17 Lg

$45.99

$

Usually ships in 3-6 days

0

51

White Outdoor 756-04224

Flat Idler Pulley 2.75 OD

$26.99

$

In Stock, Qty 20+

0

52

White Outdoor 756-04308

Input Pulley

$31.99

$

In Stock, only 3 left!

0

53

White Outdoor 783-04536B

Support Pedal Bracket

Variations

White Outdoor 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

White Outdoor 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

54

White Outdoor 783-04570B-0637

Idler Arm

$19.99

$

In Stock, Qty 5

0

55

White Outdoor 783-06551

Torque Bracket

Variations

White Outdoor 783-06551-0637

BRACKET - TORQUE H - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

56

White Outdoor 783-04585A

Handle Bracket

$5.99

$

Usually ships in 3-6 days

0

57

White Outdoor 783-06558-0637

Belt Support Bracket

$6.99

$

Usually ships in 3-6 days

0

58

White Outdoor 948-0334

Spacer, T-Axle, 46" only

$10.99

$

In Stock, only 1 left!

0

59

White Outdoor 634-0104

Wheel Assembly Complete, 20 x 8 x 8

Variations

White Outdoor 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0912

WHL ASSY 20 X 8 - Dico Gray (0912)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0914

WHL ASSY 20 X 8 - Cheng Gray (0914)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0916

WHL ASSY 20 X 8 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

In Stock, only 1 left!

0

White Outdoor 634-0104-0941

WHL ASSY 20 X 8 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0942

WHEEL ASSY W/TIRE - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0945

WHL ASSY 20 X 8 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0961

WHEEL ASM-20 X 8 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0991

WHEEL ASM COMP-20 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4009

WHEEL ASM COMP-20 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-4028

WHEEL ASSY COMP-20 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0104-0981

No Longer Available WHEEL ASM COMP-20 - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

59

White Outdoor 734-1730

Tire Only, 20 x 8 x 8, Square Shoulder

Variations

White Outdoor 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

White Outdoor 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

59

White Outdoor 634-04369

Rim Only

Variations

White Outdoor 634-04369-0499

Rim Assembly, 8.0 X 7.0 - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04369-0674

RIM-WHEEL 8.0 X 7.0 - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04369-4042

RIM-WHEEL 8.0 X 7.0 - CRAFTSMAN GRAY (4042)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04369-0662

RIM-WHEEL 8.0 X 7.0 - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04369-4009

RIM-WHEEL 8.0 X 7.0 - TEE WHITE (4009)

$165.99

$

Usually ships in 3-6 days

0

White Outdoor 634-04369-4028

RIM-WHEEL 8.0 X 7.0 - SEARS YELLOW (4028)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

60

White Outdoor 710-0627

Hex L-Screw 5/16-24 x 0.75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 736-0242

Cup. Wash. .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 710-0106

Hex Screw 1/4-20 x 1.25

$3.99

$

In Stock, only 2 left!

0

63

White Outdoor 936-0142

Flt Washer .281 x .50 x .063
(Superseded to 736-0142)

$4.99

$

In Stock, only 4 left!

0

64

White Outdoor 738-04483

Screw, 1/4-20 x .5

$3.99

$

Usually ships in 3-6 days

0

65

White Outdoor 741-04280

Ball Bearing .25 x .6875 x .25

$15.99

$

In Stock, only 1 left!

0

66

White Outdoor 747-05379

Hydro Rod, RTN

$

$

Not available

67

White Outdoor 783-06750

Cam Bracket, RTN
(Superseded to 783-06750A)

Variations

White Outdoor 783-06750-0637

Cam Bracket - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

68

White Outdoor 783-06756

Pivot Bracket, RTN

Variations

White Outdoor 783-06756-0637

BRACKET-PIVOT - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

69

White Outdoor 712-04064

Hex L-Flg. Nut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 914-0145

Click Pin, .092 x 1.64" Lg.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

White Outdoor 725-04990

Harness, Jumper, Hydro

Note: Not shown

$6.99

$

Usually ships in 3-6 days

0
