C 79 GF (13AM79GF897) - Columbia 38" Lawn Tractor (2010) Drive Assembly Parts Diagram

38" Lawn Tractor

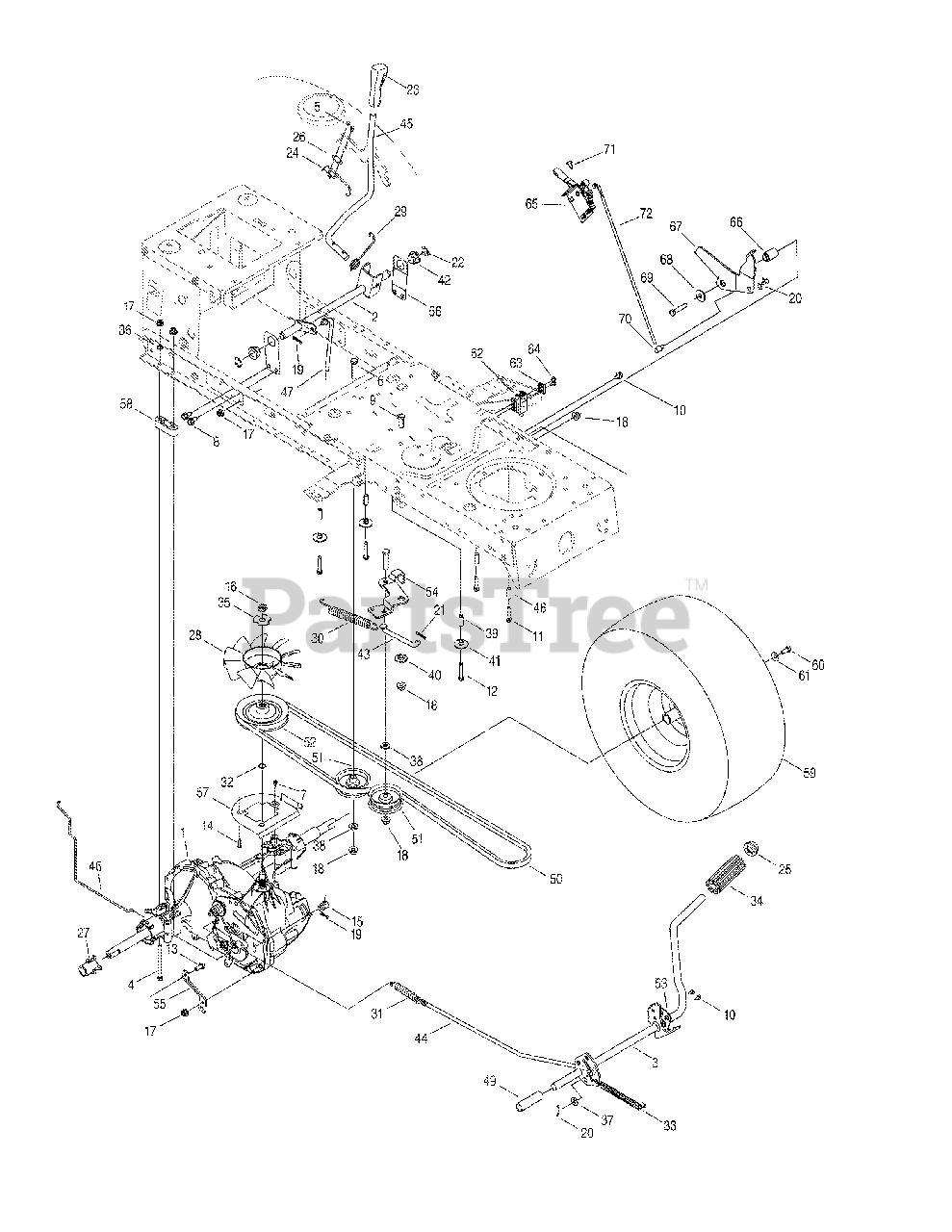

Drive Assembly Parts Diagram

  • Title

1

MTD 918-04198

Transmission Ass’y

$1109.99

$

Usually ships in 3-6 days

0

2

MTD 647-04038A

Hydro Hand Control Ass’y

$

$

Not available

3

MTD 647-04054A-0637

Hydro Pedal Assembly

$

$

Not available

4

MTD 710-0176

Hex Scr 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

MTD 710-1266

Hex Scr 5/16-18 x 3.5

$9.99

$

Usually ships in 3-6 days

0

5

MTD 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 15

0

6

MTD 710-0347

Hex Scr 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

7

MTD 710-0351

Screw #10-16 x .50

$4.49

$

In Stock, only 2 left!

0

8

MTD 710-04484

S-Tapp Scr 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0514

Hex Scr 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0604A

Hex Scr 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

12

MTD 710-1325

Screw 1/4-20 x 1.25

$4.49

$

Usually ships in 3-6 days

0

12

MTD 710-1026

Screw 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

13

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3009

Screw, #10-24 x .75

$7.49

$

Usually ships in 3-6 days

0

15

MTD 711-04448

Ferrule

$10.99

$

In Stock, only 2 left!

0

16

MTD 712-0346

Jam L-Nut 1/2-20

$4.99

$

In Stock, Qty 8

0

17

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04065

Flange Locknut 3/8-16 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

19

MTD 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 20+

0

20

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

21

MTD 714-3004

Cotter Pin 3/32 dia x 1.25 Lg.

$4.99

$

In Stock, Qty 8

0

22

MTD 716-0106A

E Ring .625 Dia.

$5.49

$

In Stock, only 2 left!

0

23

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

24

MTD 725-04249

Hydro Spring Switch

$10.99

$

Usually ships in 3-6 days

0

25

MTD 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

Usually ships in 3-6 days

0

26

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

27

MTD 731-05299A

Sleeve, .765 x 1.5" Lg.

$4.49

$

In Stock, only 3 left!

0

28

MTD 731-06098

Hydro Fan

$19.99

$

In Stock, Qty 20+

0

29

MTD 732-04225

Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

30

MTD 732-04229

Ext. Spring .75 Dia. x 6.02

$20.99

$

Usually ships in 3-6 days

0

31

MTD 732-0716D

Ext. Spring .59 OD x 4.00 Lg.

$13.99

$

In Stock, only 2 left!

0

32

MTD 732-0729

Wire Ring

$4.99

$

In Stock, Qty 5

0

33

MTD 732-0963

Extension Spring .50 dia. x 6.37

$9.99

$

In Stock, only 4 left!

0

34

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

35

MTD 736-04263

Lockwasher Trans Hydro

$6.99

$

In Stock, only 3 left!

0

36

MTD 736-0607

Lockwasher 5/16 ID

$3.99

$

In Stock, Qty 20+

0

37

MTD 936-3008

Flat Washer .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

38

MTD 736-3010

Flat Washer .407 x .812 x .135 HT

$4.99

$

In Stock, only 2 left!

0

39

MTD 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

39

MTD 750-04456

Spacer .260 x .372 x 1.420

$7.49

$

In Stock, only 4 left!

0

40

MTD 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

41

MTD 738-04178

Shoulder Spacer .375 OD x .284
(Superseded to 938-04178)

$

$

Not available

41

MTD 936-0211

Flat Washer .285 x 1.25 x .06
(Superseded to 736-0211)

$6.99

$

In Stock, Qty 7

0

42

MTD 941-0225

Hex Flange Bear ing .630 ID

$7.49

$

In Stock, Qty 20+

0

43

MTD 747-04283A

Declutching Rod
(Superseded to 747-04283B)

$

$

Not available

44

MTD 747-04286

Brake Rod

$

$

Not available

45

MTD 747-04296A

Hydro Control Handle

$41.99

$

Usually ships in 3-6 days

0

46

MTD 747-04316

Hydro Bypass Rod

$

$

Not available

47

MTD 747-04407A

Hydro Control Rod

$17.99

$

Usually ships in 3-6 days

0

48

MTD 750-0566A

Spacer, .260 x .375 x 1.030" Lg.

$9.99

$

In Stock, only 1 left!

0

49

MTD 750-0802

Spacer, .640 x .76 x 2.6" Lg.

$6.99

$

Usually ships in 3-6 days

0

50

MTD 954-04074A

V-Belt 4L SEC x 78.2 Lg

$55.99

$

In Stock, only 1 left!

0

51

MTD 756-04224

Flat Idler Pulley 2.75 OD

$26.99

$

In Stock, Qty 20+

0

52

MTD 756-04309

Input Pulley

$32.99

$

Usually ships in 3-6 days

0

53

MTD 783-04536B-0637

Support Pedal Bracket

$6.49

$

Usually ships in 3-6 days

0

54

MTD 783-04570A-0637

Idler Arm
(Superseded to 783-04570B-0637)

$19.99

$

In Stock, Qty 5

0

55

MTD 783-04579A-0637

Torque Bracket

$

$

Not available

56

MTD 783-04585A

Handle Bracket

$5.99

$

Usually ships in 3-6 days

0

57

MTD 783-04600A-0637

Belt Disengage Support Bracket

$

$

Not available

58

MTD 948-0334

Spacer, T-Axle, 46" only

$10.99

$

In Stock, only 1 left!

0

59

MTD 634-0104-0911

Wheel Assembly Complete, 20 x 8 x 8

$144.99

$

Usually ships in 3-6 days

0

59

MTD 734-1730-0901

Tire Only, 20 x 8 x 8, Square Shoulder

$99.99

$

In Stock, only 1 left!

0

59

MTD 634-04369-0662

Rim Only

$165.99

$

Usually ships in 3-6 days

0

60

MTD 710-0627

Hex L-Screw 5/16-24 x 0.75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

62

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

63

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

64

MTD 728-04021

Rivet

$3.99

$

In Stock, only 1 left!

0

65

MTD 983-04226

Hydro Ass'y

$21.99

$

Usually ships in 3-6 days

0

66

MTD 750-04465

Flg,. Spacer
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

67

MTD 783-04862

Latch Ass’y, Engagement (RMC)

$

$

Not available

67

MTD 783-04903

Latch Ass’y, Engagement (w/o RMC)

Variations

MTD 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

68

MTD 936-0133

Flat Washer .411 ID x 1.25 OD x .10
(Superseded to 736-0133)

$

$

Not available

69

MTD 710-3144

Hex Screw 3/8-16 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 7

0

70

MTD 711-0736

Adjustment ferrule

$13.99

$

In Stock, only 2 left!

0

71

MTD 710-04483

Screw, 1/4-20 x .5

$6.99

$

Usually ships in 3-6 days

0

72

MTD 747-04430

Control Speed Selector Rod

$21.99

$

Usually ships in 3-6 days
