C 76 GF (13AC76GF897) - Columbia 38" Lawn Tractor (2011) Hood Style G Parts Diagram

38" Lawn Tractor

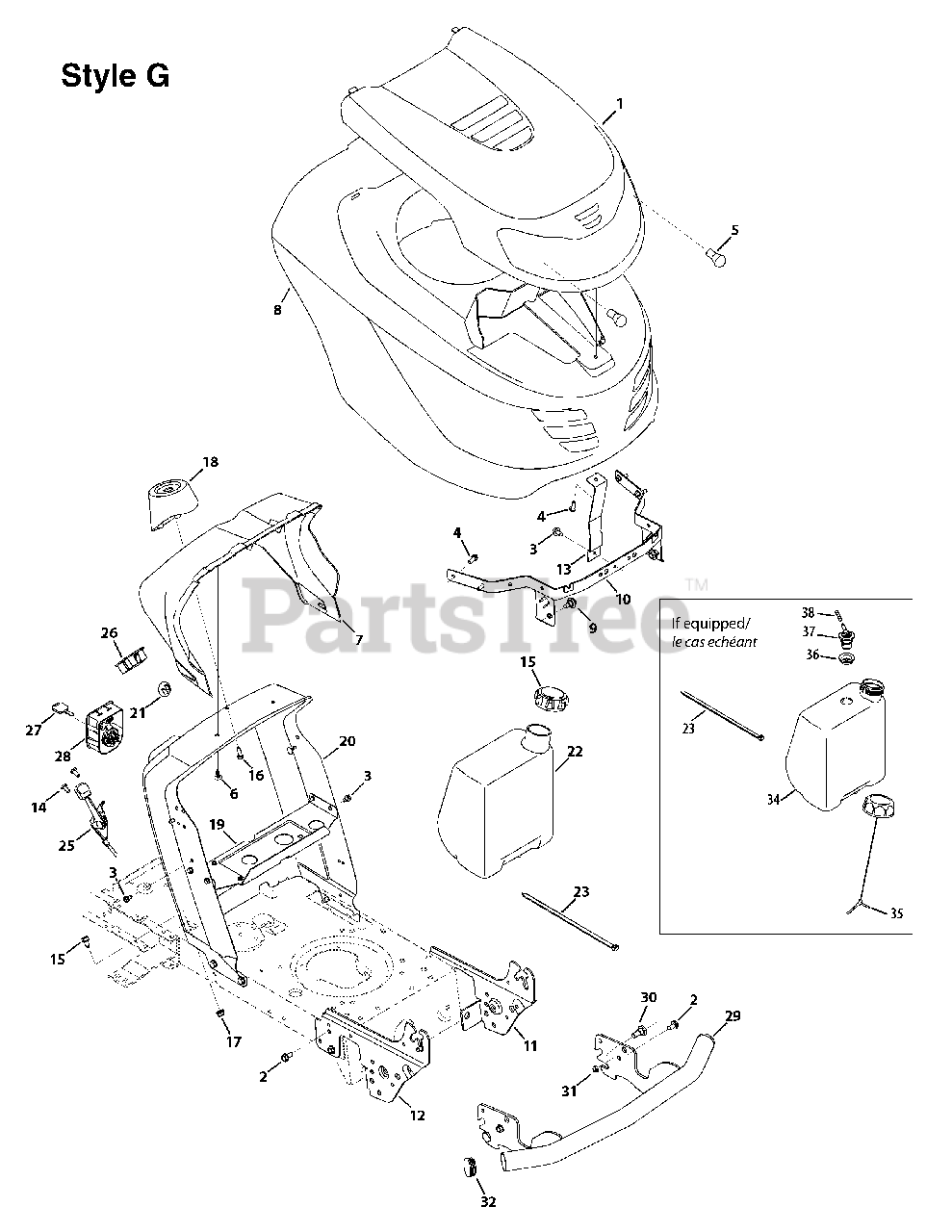

Hood Style G Parts Diagram

  • Title

1

MTD 731-04308

Grille Style G Ass'y (incl. lens)

$

$

Currently unavailable

1

MTD 931-06564

Lens Style G

Note: Not shown

$44.99

$

Usually ships in 3-6 days

0

1

MTD 777X43285

Reflective Label

Note: Not shown

$

$

Not available

2

MTD 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0895

Hex Tapp Screw 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

5

MTD 925-0963

Miniature Lamp 12V Socket Type

$7.49

$

In Stock, only 4 left!

0

6

MTD 726-3046

Rachet Clip

$3.99

$

In Stock, Qty 16

0

7

MTD 931-06470

Dash Collar
(Superseded to 931-06470A)

$43.99

$

Usually ships in 3-6 days

0

8

MTD 931-06537

Hood Style G

$154.99

$

Usually ships in 3-6 days

0

9

MTD 738-04091A

Shoulder Screw 5/16-18, .43 x .29

$3.99

$

Usually ships in 3-6 days

0

10

MTD 783-04606C

Pivot Hood Bracket

Variations

MTD 783-04606C-0606

Hood Pivot Bracket - MAJESTIC ORANGE (0606)

$45.99

$

Usually ships in 3-6 days

0

MTD 783-04606C-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 783-04606C-0638

BRACKET-PIVOT HOOD - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

MTD 783-04606C-4008

BRACKET-PIVOT HOOD - WINE RED (4008)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-04606C-4021

BRACKET-PIVOT HOOD - CUB YELLOW 2 (4021)

$48.99

$

In Stock, only 1 left!

0

$39.99

$

Usually ships in 3-6 days

0

11

MTD 783-05327B

LH Pivot Bracket

Variations

MTD 783-05327B-0606

BRACKET-SUPPORT PI - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0637

BRACKET-SUPPORT PI - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0638

BRACKET-SUPPORT PI - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0691

BRACKET-SUPPORT PI - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-0709

BRKT SUPT-PIVOT LH - MASTERCRAFT GREEN (0709)

$32.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 783-05327B-4062

BRACKET SUPT-PIVOT LH - COOL GRAY (4062)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

12

MTD 783-05328A

RH Pivot Bracket

Variations

MTD 783-05328A-0606

BRACKET-SUPT PIVOT - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0637

BRACKET-SUPT PIVOT - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0638

BRACKET-SUPT PIVOT - MTD/TROY-BILT RED (0638)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-0691

BRACKET-SUPT PIVOT - BLACK JACK (0691)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-4033

BRACKET SUPT-PIVOT LH - FLINT MICA (4033)

$42.99

$

Usually ships in 3-6 days

0

MTD 783-05328A-4062

BRACKET SUPT-PIVOT RH - COOL GRAY (4062)

$42.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

13

MTD 783-06117-0637

Hood Support Bracket

$

$

Not available

14

MTD 710-04483

Hex Wash Hd Screw. 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

15

MTD 751-0603A

Cap-Fuel
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

16

MTD 710-0895

Hex Tapp Screw 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

17

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

MTD 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

19

MTD 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

20

MTD 783-04892B

Dash Assembly

Variations

MTD 783-04892B-0637

DASH RMC - POWDER BLACK (0637)

$139.99

$

Usually ships in 3-6 days

0

MTD 783-04892B-0650

DASH RMC - RED METALLIC (0650)

$

$

Not available

MTD 783-04892B-0606

DASH RMC - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04892B-0638

DASH RMC - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04892B-0665

DASH RMC - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04892B-0691

DASH RMC - BLACK JACK (0691)

$

$

Not available

MTD 783-04892B-4021

DASH RMC - CUB YELLOW 2 (4021)

$

$

Not available

$113.99

$

Usually ships in 3-6 days

0

21

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

22

MTD 751-0555B

Fuel Tank 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

23

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

25

MTD 746-04364

Choke/Throttle Cable

$48.99

$

In Stock, only 2 left!

0

26

MTD 925-04156

Indicator Monitor

$29.99

$

In Stock, only 1 left!

0

27

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

28

MTD 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

29

MTD 683-04219B

Bumper Ass'y

Variations

MTD 683-04219B-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

MTD 683-04219B-0606

BMPR ASM-UNVERSL - MAJESTIC ORANGE (0606)

$61.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

30

MTD 738-0143

Shoulder Screw. .498 x .340: 3/8-16

$4.49

$

In Stock, Qty 20+

0

31

MTD 912-3000

Hex L-Nut 3/8-16 Gr. B
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 9

0

32

MTD 731-05674

Cap

$5.49

$

In Stock, Qty 20+

0

34

MTD 951-04304

Tank Ass'y 1.36 Gal.
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

35

MTD 951-12179

Cap-Fuel
(Superseded to 951-12179C)

$38.99

$

In Stock, only 3 left!

0

36

MTD 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

37

MTD 751-12118

Roll over Valve

$35.99

$

In Stock, only 1 left!

0

38

MTD 751-12089-28

Hose Vent

$8.99

$

In Stock, only 1 left!

0

MTD 925-04085

Wire Harness (w/ RMC w/o AMM)
(Superseded to 925-04432M)

Note: RMC® (Reverse Mowing Control), Not shown

$143.99

$

Usually ships in 3-6 days

0
