C 76 GF (13AC76GF897) - Columbia 38" Lawn Tractor (2011) Drive & Rear Wheel Parts Diagram

38" Lawn Tractor

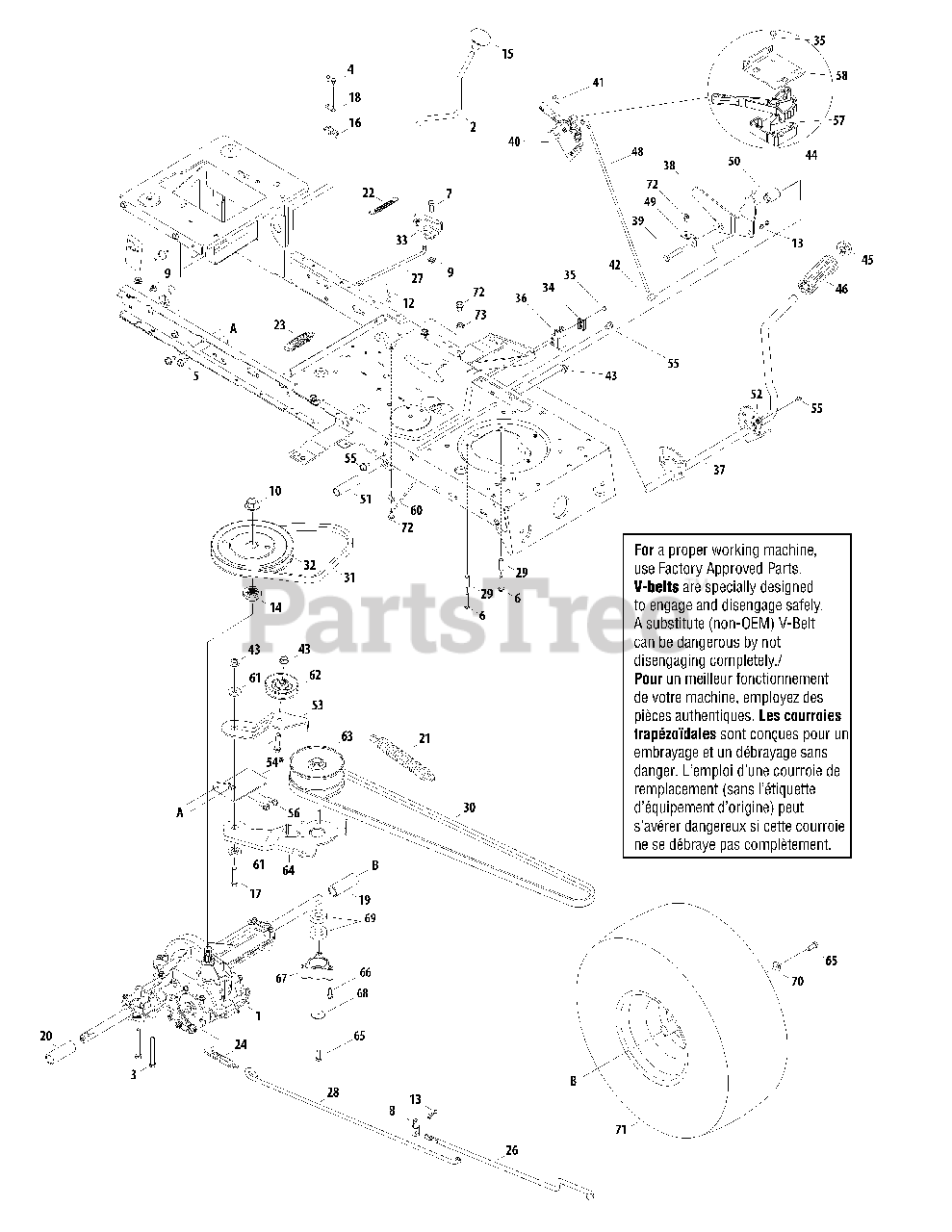

Drive & Rear Wheel Parts Diagram

  • Title

1

MTD 918-04566

Transmission Asm
(Superseded to 918-04566B)

$718.99

$

In Stock, only 1 left!

0

2

MTD 647-04035

Shift Lever Asm

$37.99

$

Usually ships in 3-6 days

0

3

MTD 710-0176

Hex Screw 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

MTD 710-0227

Hex Wash HD AB S-Tapp Screw #8-.50

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04484

S-Tapp Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

7

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

8

MTD 911-04075A

Ferrule

$11.99

$

In Stock, only 3 left!

0

9

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0700

Flange Nut

$10.99

$

In Stock, only 1 left!

0

11

MTD 914-0111

Cotter Pin 3/32 dia x 1.00 Lg.
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

12

MTD 914-0209

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

13

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

14

MTD 718-04407

Pulley Hub 5/8" Spline

$12.99

$

In Stock, Qty 20+

0

15

MTD 720-04028

Shift Knob

$10.99

$

In Stock, only 4 left!

0

16

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

17

MTD 710-0347

Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

18

MTD 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 11

0

19

MTD 731-04602

Sleeve, .758 x .821 x 3.3125

$6.49

$

In Stock, only 1 left!

0

20

MTD 731-04604

Sleeve, .758 x .821 x 2.4375

$6.99

$

In Stock, only 3 left!

0

21

MTD 732-04746

Spring, Extension, .94 OD x 6.75

$11.99

$

In Stock, only 2 left!

0

22

MTD 732-04488

Spring, Extension

$6.49

$

In Stock, Qty 20+

0

23

MTD 732-04306

Spring, Extension, .80 OD x 3.28

$10.99

$

In Stock, only 1 left!

0

24

MTD 732-0716D

Ext. Spring .59 OD x 4.00 Lg.

$13.99

$

In Stock, only 1 left!

0

25

MTD 936-0264

Flat Washer .344 ID x .625 OD x .063

$6.99

$

In Stock, only 3 left!

0

26

MTD 747-05186

Control Rod, Variable Speed

$15.99

$

In Stock, only 1 left!

0

27

MTD 747-05244

Shift Rod (38"/42" deck)

$4.49

$

Usually ships in 3-6 days

0

27

MTD 747-05243

Shift Rod (46" deck)

$11.99

$

In Stock, only 3 left!

0

28

MTD 747-04733A

Brake Rod

$21.99

$

Usually ships in 3-6 days

0

29

MTD 750-0566A

Spacer .260 x .375 x 1.030 Lg.

$9.99

$

In Stock, only 1 left!

0

30

MTD 954-04249A

Belt

$45.99

$

In Stock, Qty 20+

0

31

MTD 954-0241A

Belt
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 6

0

32

MTD 956-04002

Pulley, V-Type, 7.25 dia.

$27.99

$

In Stock, Qty 19

0

33

MTD 783-04595

Shift Bracket, Adjustable
(Superseded to 783-04595A)

$10.99

$

In Stock, only 4 left!

0

34

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

35

MTD 910-0224

Hex AB-Tap Screw #10 X .50" Lg.

$3.99

$

In Stock, Qty 20+

0

36

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 14

0

37

MTD 647-04034C

Drive Pedal Assembly
(Superseded to 647-04034E)

Variations

MTD 647-04034C-0606

PEDAL ASM:DRIVE - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0637

Drive Pedal Assembly - POWDER BLACK (0637)

$86.99

$

In Stock, only 1 left!

0

MTD 647-04034C-0638

PEDAL ASM:DRIVE - MTD/TROY-BILT RED (0638)

$86.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0665

PEDAL ASM:DRIVE - YARDMAN GREEN (0665)

$69.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0650

PEDAL ASM:DRIVE - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

MTD 647-04034C-0691

PEDAL ASM:DRIVE - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

38

MTD 783-04862

Latch Asm, Engagement (RMC)

Note: RMC (Reverse Mowing Control)

$

$

Not available

38

MTD 783-04903

Latch Asm, Engagement (w/o RMC)

Variations

MTD 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

39

MTD 710-3144

Hex Screw 3/8-16 x 2.0 Gr. 5

$4.49

$

In Stock, Qty 20+

0

40

MTD 983-04225

6 Speed Shift Control Ass'y

$

$

Not available

40

MTD 983-04216

7 Speed Shift Control Ass'y

$21.99

$

In Stock, only 2 left!

0

41

MTD 710-05070

Tap Screw 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

42

MTD 711-0736

Adjustment Ferrule

$13.99

$

In Stock, only 2 left!

0

43

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

44

MTD 731-05361

Control Cover

$9.49

$

Usually ships in 3-6 days

0

45

MTD 726-0214

Push Cap 5/8" Dia Rod

$10.99

$

In Stock, only 4 left!

0

46

MTD 735-0239

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

48

MTD 747-04430

Speed Selecter Control Rod

$21.99

$

Usually ships in 3-6 days

0

49

MTD 783-06823

Tab

$17.99

$

In Stock, only 2 left!

0

50

MTD 750-04465B

Flange Spacer .390 x .671 x 1.095

$4.49

$

In Stock, only 2 left!

0

51

MTD 750-0802

Spacer .630 ID

$6.99

$

Usually ships in 3-6 days

0

52

MTD 783-04536B

Pedal Support Bracket

Variations

MTD 783-04536B-0637

Pedal Support Bracket - POWDER BLACK (0637)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0606

BRACKET-PEDAL SUPP - MAJESTIC ORANGE (0606)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0638

BRACKET-PEDAL SUPP - MTD/TROY-BILT RED (0638)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0691

BRACKET-PEDAL SUPP - BLACK JACK (0691)

$6.49

$

Usually ships in 3-6 days

0

MTD 783-04536B-0709

BRACKET-PEDAL SUPP - MASTERCRAFT GREEN (0709)

$6.49

$

Usually ships in 3-6 days

0

$6.49

$

Usually ships in 3-6 days

0

53

MTD 683-04207

Idler Bracket
(Superseded to 753-05147)

$32.99

$

In Stock, only 2 left!

0

54

MTD 683-04176A

Transmission Torque Bracket
(Superseded to 783-04567B)

$8.99

$

Usually ships in 3-6 days

0

55

MTD 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-1260A

Hex Wash. Hd. Screw. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

57

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

58

N/A

Control Bracket

Note: (Order Ref 40)

$

$

Not available

60

MTD 747-04969

Belt Keeper Rod

$6.99

$

In Stock, only 1 left!

0

61

MTD 938-0347

Shoulder Spacer

$10.99

$

Usually ships in 3-6 days

0

62

MTD 756-04325

Flat Idler

$24.99

$

In Stock, Qty 20+

0

63

MTD 956-04015A

Variable Speed Pulley Asm 4.75 OD
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

64

MTD 683-04206

Variable Speed Bracket Asm
(Superseded to 753-05147)

$32.99

$

In Stock, only 2 left!

0

65

MTD 710-0627

Hex L-Screw 5/16-24 x 0.75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0778

Hex Screww 1/4-20 x 1.5

$4.49

$

In Stock, Qty 20+

0

67

MTD 718-04261

Bearing Cup

$20.99

$

Usually ships in 3-6 days

0

68

MTD 736-0362

Flat Washer .22 ID x 1.25

$4.49

$

In Stock, Qty 7

0

69

MTD 941-0600

Ball Bearing 17 x 40 x 12

$25.99

$

In Stock, Qty 20+

0

70

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

71

MTD 634-0104

Wheel Assembly 20 x 8 x 8

Variations

MTD 634-0104-0911

WHEEL ASSY 20X8 - Carlisle Gray (0911)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0912

WHEEL ASSY 20X8 - Dico Gray (0912)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0914

WHEEL ASSY 20X8 - Cheng Gray (0914)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0915

WHEEL ASSY 20X8 - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

MTD 634-0104-0916

WHEEL ASSY 20X10 - Kenda Gray (0916)

$548.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0931

Wheel Assembly, 20 - Carlisle Beige (0931)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0941

WHEEL ASSY 20X12 - Carlisle Yellow (0941)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0942

WHEEL ASSY 20X12 - Dico Yellow (0942)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0945

WHEEL ASSY 20X12 - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0961

WHEEL ASSY 20X13 - Carlisle Gray (0961)

$144.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0991

WHEEL ASSY 20X14 - Carlisle White (0991)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4009

WHEEL ASSY 20X14 - TEE WHITE (4009)

$155.99

$

Usually ships in 3-6 days

0

MTD 634-0104-4028

WHEEL ASSY 20 X 8 - SEARS YELLOW (4028)

$550.99

$

Usually ships in 3-6 days

0

MTD 634-0104-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$445.99

$

Usually ships in 3-6 days

0

71

MTD 734-1730

Tire Only 20 x 8 x 8

Note: (Not shown)

Variations

MTD 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

71

MTD 634-04369

Rim Only 20 x 8 x 8

Note: (Not shown)

Variations

MTD 634-04369-0499

Rim Assembly, 8.0 X 7.0 - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-04369-0674

RIM ASM-8.0 X 7.0 - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-04369-4042

RIM ASM-8.0 X 7.0 - CRAFTSMAN GRAY (4042)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-04369-0662

RIM ASM-8.0 X 7.0 - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-04369-4009

RIM ASM-8.0 X 7.0 - TEE WHITE (4009)

$165.99

$

Usually ships in 3-6 days

0

MTD 634-04369-4028

RIM ASM-8.0 X 7.0 - SEARS YELLOW (4028)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

71

MTD 934-0255

Valve 20 x 8 x 8

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0

71

MTD 734-0592

Wheel Assembly 18 x 6.5 x 6

Variations

MTD 734-0592-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$253.99

$

Usually ships in 3-6 days

0

MTD 734-0592-0942

WHEEL ASSY W/TIRE - Dico Yellow (0942)

$253.99

$

Usually ships in 3-6 days

0

MTD 734-0592-0945

WHEEL ASSY W/TIRE - Duro Yellow (0945)

$253.99

$

Usually ships in 3-6 days

0

MTD 734-0592-0911

WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

MTD 734-0592-0912

WHEEL ASSY W/TIRE - Dico Gray (0912)

$

$

Not available

MTD 734-0592-0931

WHEEL ASSY W/TIRE - Carlisle Beige (0931)

$

$

Not available

$272.99

$

Usually ships in 3-6 days

0

71

MTD 734-0294

Tire Only 18 x 6.5 x 6

Note: (Not shown)

Variations

MTD 734-0294-0901

Tubeless Tire, 18 X 6.5 X 8" - Carlisle (0901)

$85.99

$

In Stock, Qty 5

0

MTD 734-0294-0902

Tubeless Tire, 18 X 6.5 X 8" - Dico (0902)

$85.99

$

In Stock, Qty 5

0

MTD 734-0294-0905

Tubeless Tire, 18 X 6.5 X 8" - Duro (0905)

$85.99

$

In Stock, Qty 5

0

$

$

71

MTD 634-04174

Rim Only 18 x 6.5 x 6

Note: (Not shown)

Variations

MTD 634-04174-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-04174-0662

RIM ASM-8.0X5.38 W - OYSTER GRAY (0662)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-04174-4042

RIM ASM-8.0X5.38 W - CRAFTSMAN GRAY (4042)

$67.99

$

Usually ships in 3-6 days

0

MTD 634-04174-0674

RIM ASM-8.0X5.38 W - YARDMAN YELLOW (0674)

$54.99

$

Usually ships in 3-6 days

0

MTD 634-04174-4028

RIM ASM-8.0X5.38 W - SEARS YELLOW (4028)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

71

MTD 934-0255

Valve 18 x 6.5 x 6

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0

72

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

73

MTD 936-0222

Lockwasher 1/4"
(Superseded to 736-0222)

$

$

Not available
