C 410 (CMXGVAMKC30C) (21BKC30C793) - Craftsman Cultivator (2022) Engine Assembly Parts Diagram

Cultivator

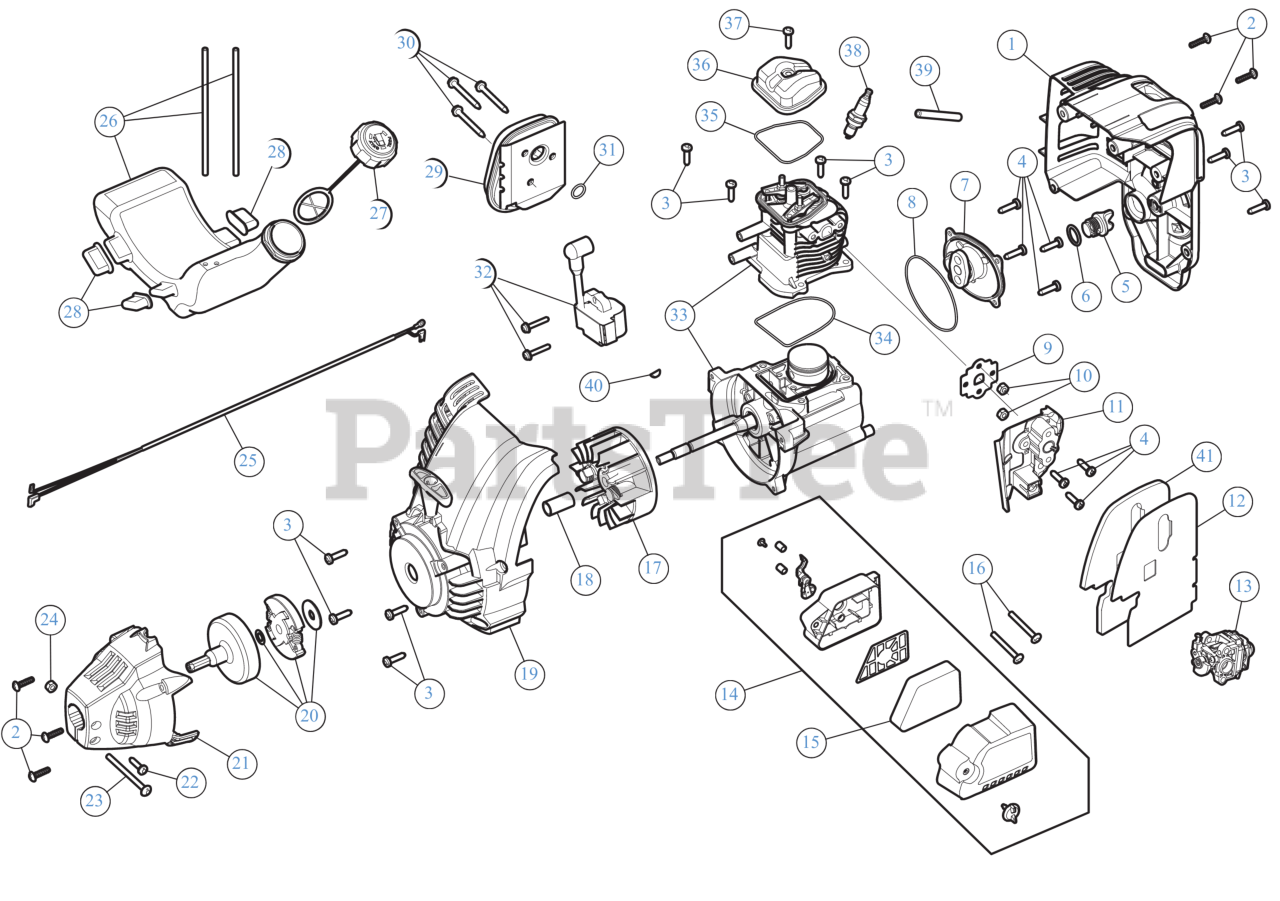

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06237

ENGINE COVER ASSEMBLY RR

Note: (Incl. 2 & 3)

$22.99

$

Usually ships in 3-6 days

0

2

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04604

SCREW M5-0.8 x 19

$4.49

$

In Stock, Qty 20+

0

4

MTD 9052-1

SCREW, M5 X18

$4.49

$

In Stock, Qty 7

0

5

MTD 753-05408

OIL PLUG

Note: (Incl. 6)

$29.99

$

In Stock, only 1 left!

0

6

MTD 791-182290

RING, OIL PLUG (AC

$4.99

$

In Stock, Qty 9

0

7

MTD 753-06259

CRANKCASE COVER

$8.49

$

Usually ships in 3-6 days

0

8

MTD 753-05238

O-RING CRNKCSE CVR

$10.99

$

In Stock, only 1 left!

0

9

MTD 753-05247

GASKET/INSULATOR

$

$

Not available

10

MTD 712-04099

NUT 10-32

$6.99

$

Usually ships in 3-6 days

0

11

MTD 841-020801S

CARB INSULATOR

Note: (Incl. 12)

$9.99

$

In Stock, only 1 left!

0

12

MTD 753-06948

GASKET

$4.99

$

In Stock, only 2 left!

0

13

MTD 751-22423

CARBURETOR
(Superseded to 753-11331)

$31.99

$

In Stock, only 2 left!

0

14

MTD 841-036206S

AIR CLEANER COVER

Note: (Incl. 15)

$10.99

$

Usually ships in 3-6 days

0

15

MTD 753-05996

AIR FILTER

$3.49

$

In Stock, Qty 20+

0

16

MTD 710-04517

SCREW 10-32X2.5

$5.49

$

In Stock, Qty 20+

0

17

MTD 753-06221

FLYWHEEL ASSEMBLY AC3.1

$21.99

$

Usually ships in 3-6 days

0

18

MTD 750-04434

SPACER :2.165"

$6.99

$

In Stock, Qty 14

0

19

MTD 753-09464

STARTER HOUSING

Note: (Incl. 3)

$21.99

$

In Stock, only 1 left!

0

20

MTD 753-06281

CLUTCH ASSEMBLY

$22.99

$

In Stock, only 4 left!

0

21

MTD 753-05263

CLUTCH COVER ASSEMBLY

Note: (Incl. 2)

$27.99

$

In Stock, Qty 5

0

22

MTD 710-04165

SCREW 8-18X.375 T-20

$2.99

$

In Stock, Qty 12

0

23

MTD 9689A

SCREW

$11.99

$

In Stock, Qty 16

0

24

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

25

MTD 9681

WIRE LEAD

$7.49

$

Usually ships in 3-6 days

0

26

MTD 753-06797

FUEL TANK ASSEMBLY

Note: (Incl. 27)

$21.99

$

In Stock, Qty 8

0

27

MTD 753-1229

FUEL CAP ASSEMBLY 43MM-6 W/O HOLE

$22.99

$

Usually ships in 3-6 days

0

28

MTD 753-05259

FUEL TANK PADS

$6.99

$

In Stock, Qty 20+

0

29

MTD 753-06238

MUFFLER ASSEMBLY

Note: (Incl. 30 & 31)

$30.99

$

Usually ships in 3-6 days

0

30

MTD 710-04809

SCREW M5 x 44MM

$3.49

$

In Stock, Qty 5

0

31

MTD 753-05244

GASKET/MUFFLER

$5.99

$

In Stock, Qty 9

0

32

MTD 753-11252

MODULE ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

33

MTD 841P021441S

SHORT BLOCK

Note: (Incl. 3-8, 34-38)

$98.99

$

In Stock, only 1 left!

0

34

MTD 753-05910

O-RING CYL AC5

$3.49

$

In Stock, only 1 left!

0

35

MTD 753-05902

O-RING

$5.49

$

In Stock, Qty 11

0

36

MTD 753-05901

ROCKER COVER

$8.49

$

Usually ships in 3-6 days

0

37

MTD 791-181025

SCR, VALVE COVER

$2.99

$

Usually ships in 3-6 days

0

38

MTD 794-00082

SPARK PLUG 4 CYCL

$7.49

$

In Stock, Qty 7

0

39

MTD 753-10205

BREATHER HOSE

$4.49

$

In Stock, Qty 11

0

40

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0

41

MTD 753-06949

HEAT SHIELD

$5.99

$

In Stock, only 1 left!

0
