C 38 D - Husqvarna Grass Catcher (2002) Grass Catcher Parts Diagram

Grass Catcher

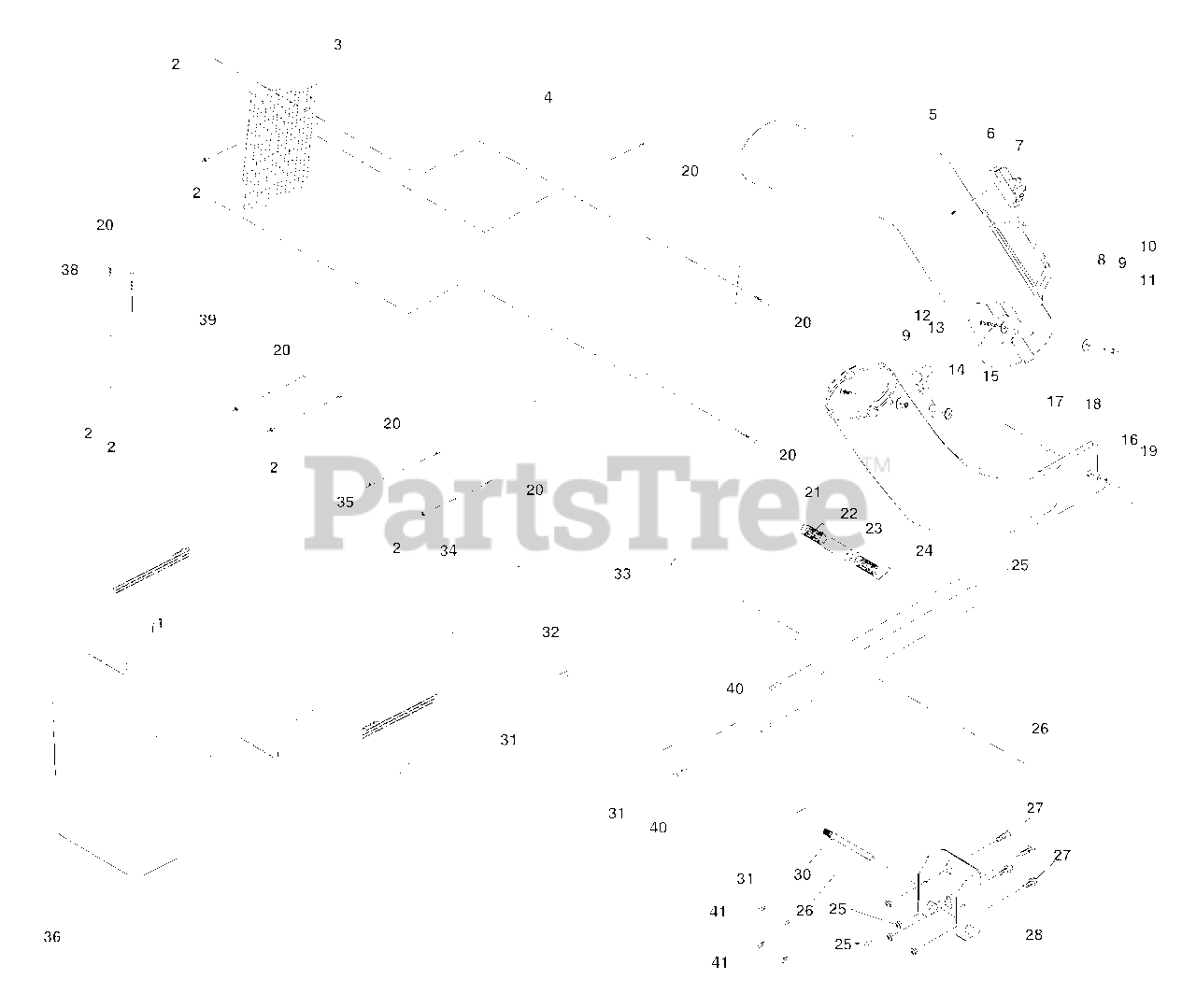

Grass Catcher Parts Diagram

  • Title

2

Electrolux/AYP 532069180

Nut, Crownlock #10-24

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532127533

Screen, Cover

$18.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532161314

Cover Asm.
(Superseded to 532171061)

Note: (Incl. 3, 38, 39)

$121.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532139569

Chute, Upper

$

$

Not available

6

Electrolux/AYP 818021008

Screw, Special

$5.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532140572

Dump Bag Indicator

$8.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 532087175

Screw, #10-24 x 1-1/8
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

9

Electrolux/AYP 819061216

Washer 3/16x3/4x16 Ga.

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532007206

Spacer, Split

$7.49

$

In Stock, Qty 6

0

11

Electrolux/AYP 532060867

Nut, Acorn #10-24
(Superseded to 60867)

$4.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 810071000

Washer, lock

$4.99

$

In Stock, Qty 11

0

13

Electrolux/AYP 532109808

Latch, Chute

$6.99

$

In Stock, Qty 13

0

14

Electrolux/AYP 532125004

Nut, Weld
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 874930620

Bolt, Hex 3/8-16 x 1-1/4

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 819131616

Washer 13/32x1x16 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 873750600

Locknut 3/8-16
(Superseded to 873770600)

$

$

Not available

18

Electrolux/AYP 532131970

Chute, Lower

$

$

Not available

19

Electrolux/AYP 532135651

Wingnut 3/8-16

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 871161010

Screw #10-24 x 5/8
(Superseded to 871081010)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532132796

Spring, Cover L.H. (black)

$6.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532133235

Spacer, Cover

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 532132983

Spring, Cover R.H. (gray)

$6.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 532126813

Post, Support
(Superseded to 532180925)

$40.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532063124

Locknut 5/16 x 18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 532124670

Spring, Retainer
(Superseded to 532085902)

$

$

Not available

27

Electrolux/AYP 874760512

Bolt, Hex 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

28

Electrolux/AYP 532170053

Bracket, Mounting

$

$

Not available

30

Electrolux/AYP 532131137

Pin, Support Post

$13.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 532174083

Plug, Tubing End

$7.49

$

In Stock, only 3 left!

0

32

Electrolux/AYP 532126919

Bagger, Frame

$

$

Not available

33

Electrolux/AYP 532128600

Pin, Hinge
(Superseded to 532192786)

$17.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532127534

Gasket, Cover

$13.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 532129585

Container, Top
(Superseded to 532183286)

$34.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532129586

Container, Bottom

$80.99

$

In Stock, only 4 left!

0

38

Electrolux/AYP 532130895

Latch Handle, Cover

$7.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532155042

Strip, Reinforcement

$18.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 872110506

Carriage Bolt 5/16-18 x 3/4

$7.49

$

In Stock, Qty 20+

0

41

Electrolux/AYP 532170165

Shoulder Bolt Hex, Self Tapping

$4.99

$

In Stock, Qty 5

0

Electrolux/AYP 532104419

Bag, 3.0 mil. 30 Gallon Trash

Note: (Not included with bagger)

$

$

Not available

Electrolux/AYP 532140603

Owner's Manual

$

$

Not available
