C-36 - Cub Cadet 36" Snow Thrower Attachment Gear Box Parts Diagram

36" Snow Thrower Attachment

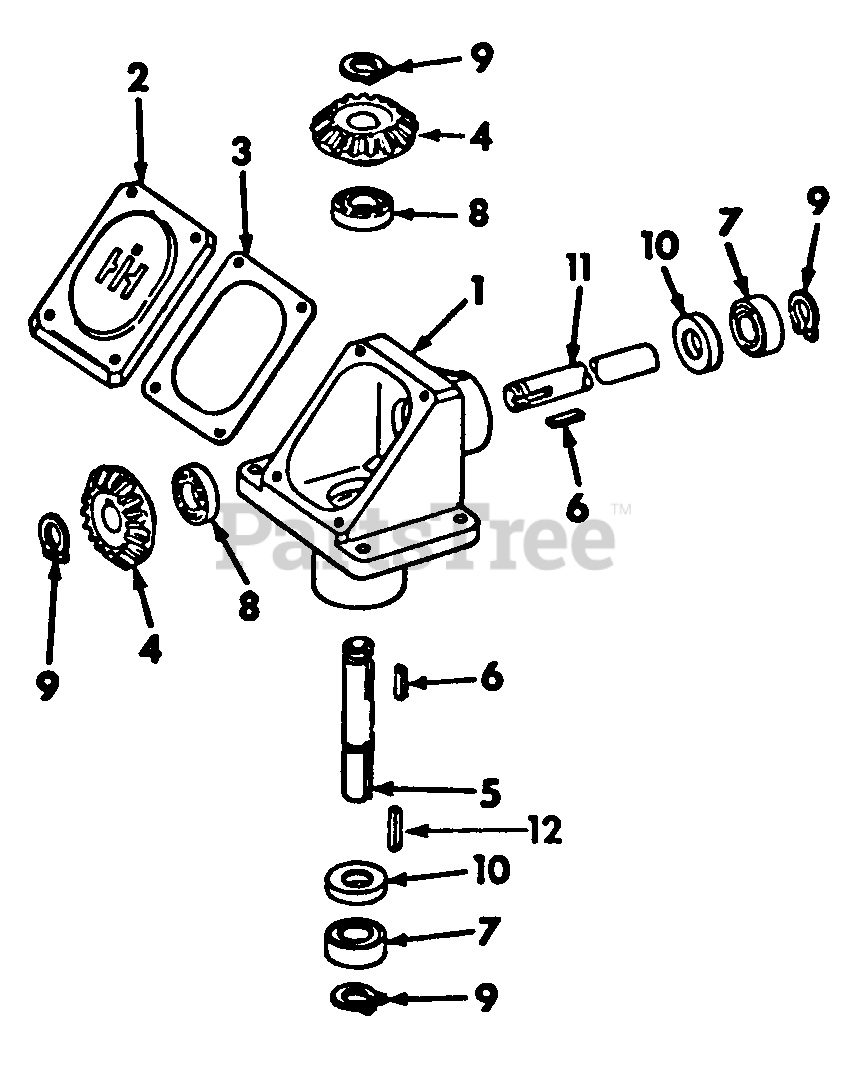

Gear Box Parts Diagram

  • Title
1

Cub Cadet 493-541-R1

Housing, Gear Box

$

$

Currently unavailable

Cub Cadet IH-180124

Screw, 3/8-16 X 1-1/4 Znd Hex-Hd Cap
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 Znd Reg Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8-16 Znd Hex
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 493-542-R1

Plate, Cover

$

$

Currently unavailable

Cub Cadet 178-434

Screw, 1/4-14 X 1/2 Znd Hex-Hd Cap

$

$

Currently unavailable

3

Cub Cadet 493-543-R1

Gasket, Cover Plate

$

$

Currently unavailable

4

Cub Cadet 493-546-R1

Gear, Miter - 25T

$

$

Currently unavailable

$

$

Currently unavailable

6

Cub Cadet 475-642-R1

Key, 3/16 X 11/16 Sq

$

$

Currently unavailable

7

Cub Cadet 475-627-R91

Bearing, Ball

$

$

Currently unavailable

8

Cub Cadet 475-628-R91

Bearing, Ball

$

$

Currently unavailable

9

Cub Cadet 269-181-R1

Ring, Retaining

$

$

Currently unavailable

10

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet 137-218

Pin, 5/32 X 1-1/4 Znd Cotter

$

$

Currently unavailable

12

Cub Cadet Q-5-024

Key, 3/16 X 1 In. Parallel

$

$

Currently unavailable
