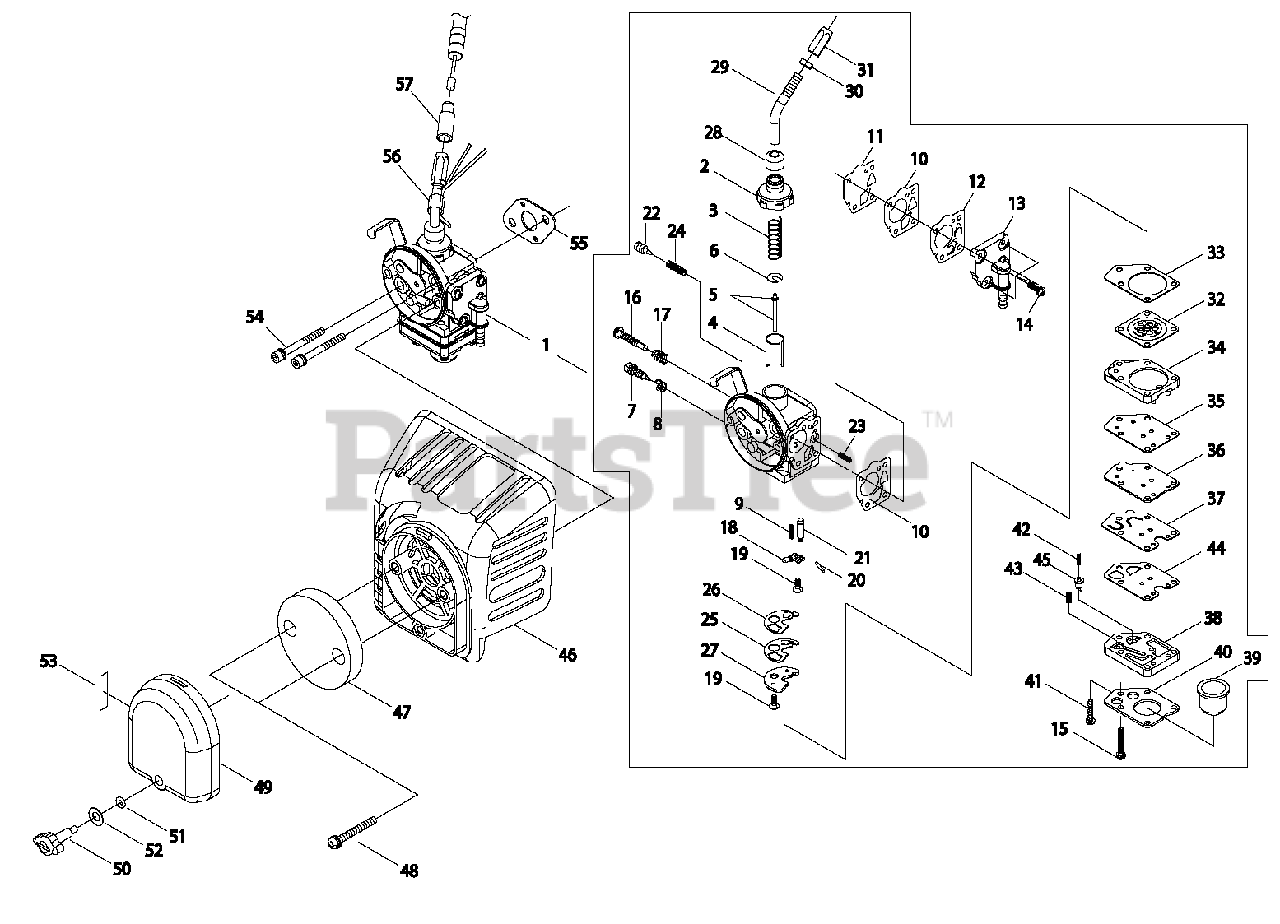

C 350 - Shindaiwa Brush Cutter (SN: 20001921 - 20003190) Carburetor / Air Filter Parts Diagram

Brush Cutter

Carburetor / Air Filter Parts Diagram

  • Title

1

Echo A021002470

CARBURETOR

Note: 70200-81020

$89.99

$

In Stock, Qty 5

0

2

Echo P004000700

CAP, CARBURETOR

Note: 20055-81120

$8.99

$

Usually ships in 2-4 days

0

3

Echo 12411450330

SPRING, THROTTLE

Note: 20003-81140

$1.99

$

Usually ships in 2-4 days

0

4

Echo P004002900

VALVE, THROTTLE

Note: 70131-81180

$28.99

$

In Stock, only 1 left!

0

5

Echo P004002940

NEEDLE, JET

Note: 70200-81170

$10.99

$

Usually ships in 2-4 days

0

6

Echo 12411505530

SEAT, SPRING

Note: 20000-81150

$1.99

$

In Stock, Qty 12

0

7

Echo 12435412710

NEEDLE - HIGH SPEED

Note: 70200-81350

$15.99

$

Usually ships in 2-4 days

0

8

Echo 12435521330

SPRING, ADJUST

Note: 20011-81360

$1.99

$

In Stock, Qty 10

0

9

Echo 12433149930

SPRING

Note: 20040-81430

$1.99

$

In Stock, only 1 left!

0

10

Echo 12436321330

GASKET, METERING

Note: 20011-81630

$1.99

$

In Stock, Qty 7

0

11

Echo P004001430

DIAPHRAGM, METERING

Note: 20011-81621

$5.99

$

In Stock, only 3 left!

0

12

Echo P004002550

VALVE, PUMP

Note: 20087-81660

$13.99

$

Usually ships in 2-4 days

0

13

Echo P004003230

PUMP BODY ASSY

Note: 20087-81640

$18.99

$

In Stock, Qty 7

0

14

Echo P004001030

SCREW

Note: 20000-81650

$0.99

$

In Stock, Qty 20+

0

15

Echo 90024103020

SCREW - 3X20

Note: 20087-81880

$0.99

$

Usually ships in 2-4 days

0

16

Echo 12415905530

SCREW, IDLE ADJUST

Note: 20000-81310

$2.49

$

In Stock, only 4 left!

0

17

Echo 12416011120

SPRING

Note: 72920-81820

$2.49

$

In Stock, only 1 left!

0

18

Echo P004001340

LEVER, METERING

Note: 20011-81451

$4.99

$

Usually ships in 2-4 days

0

19

Echo P004001350

SCREW, METERING LEVER PIN

Note: 20011-81470

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12433221330

PIN, METERING LEVER

Note: 20011-81460

$1.99

$

In Stock, only 3 left!

0

21

Echo P004000930

VALVE, INLET NEEDLE

Note: 20000-81441

$10.99

$

In Stock, only 4 left!

0

22

Echo P004000880

SCREW, SLOW AIR

Note: 20000-81330

$2.99

$

Usually ships in 2-4 days

0

23

Echo 12435550130

SPRING

Note: 20040-81680

$1.99

$

In Stock, Qty 5

0

24

Echo P004000890

SPRING

Note: 20000-81340

$0.99

$

In Stock, Qty 6

0

25

Echo P004002500

VALVE, CHECK

Note: 20087-81411

$7.99

$

Usually ships in 2-4 days

0

26

Echo P004002510

GASKET
(Superseded to 12437512710)

Note: 20087-81420

$6.99

$

Usually ships in 2-4 days

0

27

Echo P004002950

PLATE

Note: 70200-81430

$7.49

$

Usually ships in 2-4 days

0

28

Echo P004002180

GROMMET

Note: 20055-81130

$3.99

$

In Stock, only 1 left!

0

29

Echo P004002870

GUIDE, CABLE

Note: 70107-81830

$14.99

$

Usually ships in 2-4 days

0

30

Echo 12411105810

LOCKNUT

Note: 20000-81260

$3.49

$

In Stock, only 2 left!

0

31

Echo 12415846630

NUT, CABLE ADJUST

Note: 20055-81810

$13.99

$

Usually ships in 2-4 days

0

32

Echo 12434149930

DIAPHRAGM, METERING

Note: 20087-81520

$23.99

$

In Stock, only 2 left!

0

33

Echo 12435849930

GASKET, METERING

Note: 20087-81510

$1.49

$

In Stock, Qty 7

0

34

Echo 12437949930

BASE, PURGE

Note: 20087-81550

$20.99

$

Usually ships in 2-4 days

0

35

Echo 12435949930

GASKET

Note: 20087-81540

$2.49

$

Usually ships in 2-4 days

0

36

Echo 12436049930

PLATE, PUMP

Note: 20087-81560

$3.49

$

Usually ships in 2-4 days

0

37

Echo P004002530

DIAPHRAGM

Note: 20087-81571

$10.99

$

Usually ships in 2-4 days

0

38

Echo P004002570

BASE, PURGE

Note: 20087-81811

$7.49

$

In Stock, only 1 left!

0

39

Echo 12438012710

BULB, PURGE

Note: 20087-81820

$9.99

$

In Stock, only 1 left!

0

40

Echo 12434249930

PLATE

Note: 20087-81830

$3.49

$

Usually ships in 2-4 days

0

41

Echo 12431049930

SCREW

Note: 20087-81840

$0.99

$

Usually ships in 2-4 days

0

42

Echo P004002580

SPRING, RETURN

Note: 20087-81851

$2.49

$

In Stock, only 2 left!

0

43

Echo 12435550130

SPRING

Note: 20087-81870

$1.99

$

In Stock, Qty 5

0

44

Echo P004002600

GASKET

Note: 20087-81890

$2.49

$

In Stock, only 2 left!

0

45

Echo P004002590

VALVE

Note: 20087-81861

$18.99

$

Usually ships in 2-4 days

0

46

Echo A225000490

CASE, AIR FILTER

Note: 70102-81710

$8.99

$

In Stock, Qty 12

0

47

Echo A226000650

FILTER, AIR

Note: 20056-81740

$1.99

$

In Stock, Qty 20+

0

48

Echo 9157704025

SCREW - 5X25

Note: 11207-04250

$0.99

$

In Stock, Qty 20+

0

49

Echo A232000830

COVER, AIR FILTER

Note: 20060-81770

$3.99

$

Usually ships in 2-4 days

0

50

Echo A235000220

THUMBSCREW

Note: 20060-81781

$3.99

$

In Stock, only 1 left!

0

51

Echo V581000200

O-RING

Note: 22100-82430

$0.99

$

In Stock, Qty 5

0

52

Echo V347000030

WASHER - CONICAL

Note: 20024-81790

$0.99

$

In Stock, Qty 9

0

53

Echo X506000130

LABEL - CHOKE

Note: 19404-00008

$0.99

$

In Stock, Qty 20+

0

54

Echo V203000890

SCREW
(Superseded to V203000891)

Note: 11022-05550

$1.49

$

Usually ships in 2-4 days

0

55

Echo V103000960

GASKET, INTAKE

Note: 20011-83411

$0.99

$

In Stock, Qty 9

0

56

Echo V475004810

SLEEVE

Note: 20037-82130

$0.99

$

Usually ships in 2-4 days

0

57

Echo C482000070

CONNECTOR TUBE

Note: 72550-82120

$6.49

$

Usually ships in 2-4 days

0
