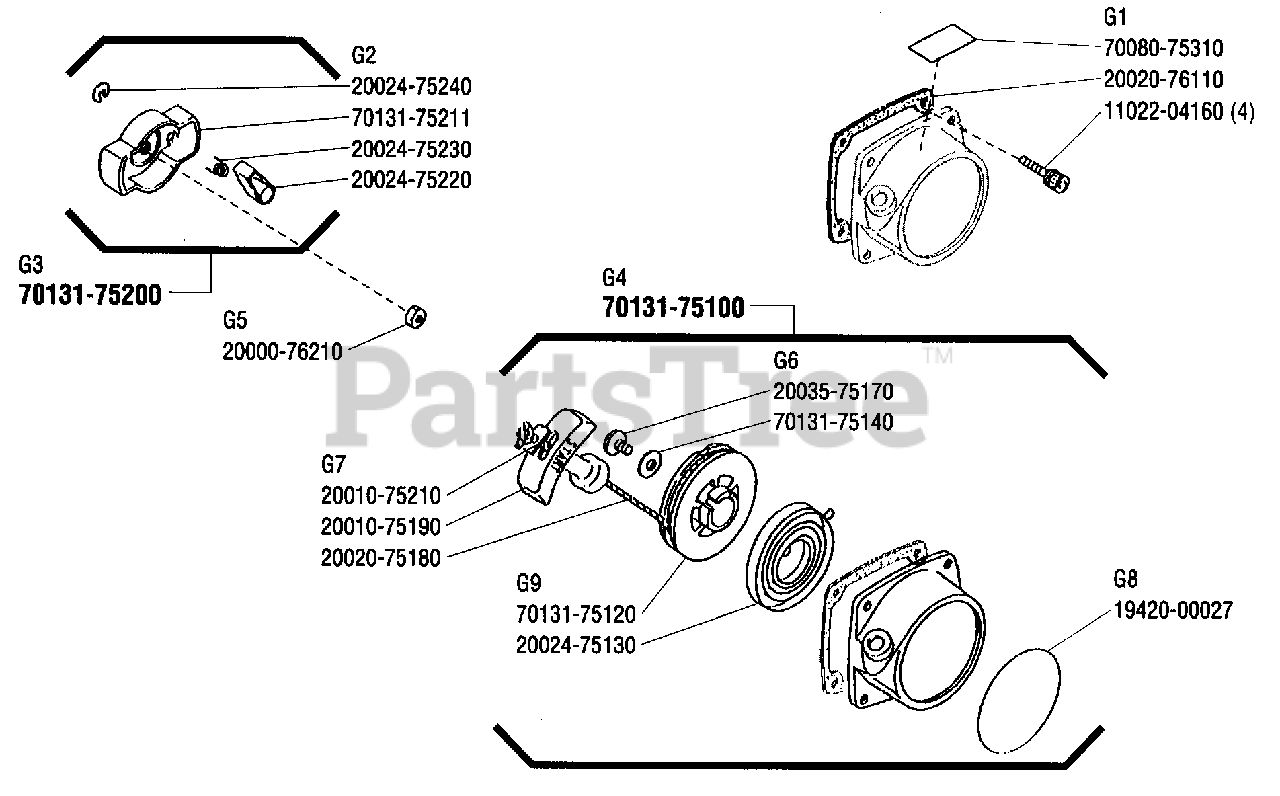

C 350 - Shindaiwa Brush Cutter (Original Version) Starter Parts Diagram

Brush Cutter

Starter Parts Diagram

  • Title

G1-11022-04160

Echo 11022-04160

SCREW - 4X16
(Superseded to V202000580)

$0.99

$

In Stock, Qty 6

0

G1-20020-76110

Echo 20020-76110

GASKET
(Superseded to 20020-76111)

$1.99

$

In Stock, Qty 7

0

G1-70080-75310

Echo 70080-75310

LABEL - CAUTION
(Superseded to X525000130)

$1.99

$

Usually ships in 2-4 days

0

G2-20024-75220

Echo 20024-75220

PAWL, STARTER
(Superseded to A514000080)

$3.49

$

In Stock, Qty 8

0

G2-20024-75230

Echo 20024-75230

SPRING, RETURN
(Superseded to V452000520)

$3.49

$

In Stock, only 2 left!

0

G2-20024-75240

Echo 20024-75240

RING, RETAINING
(Superseded to V583000140)

$0.99

$

In Stock, Qty 6

0

G2-70131-75211

Echo 70131-75211

REEL, ROPE
(Superseded to A520000150)

$12.99

$

Usually ships in 2-4 days

0

G3-70131-75200

Echo 70131-75200

STARTER PAWL ASSY
(Superseded to A052000370)

$13.99

$

In Stock, only 2 left!

0

G4-70131-75100

Echo 70131-75100

STARTER ASSY
(Superseded to P021035720)

$63.99

$

Usually ships in 2-4 days

0

G5-20000-76210

Echo 20000-76210

NUT - 8
(Superseded to V265000170)

$0.99

$

Usually ships in 2-4 days

0

G6-70131-75140

Echo 70131-75140

WASHER
(Superseded to V303000190)

$1.49

$

Usually ships in 2-4 days

0

G6-20035-75170

Echo 20035-75170

SCREW
(Superseded to V253000560)

$3.99

$

In Stock, Qty 14

0

G7-20010-75190

Echo 20010-75190

GRIP, STARTER
(Superseded to A511000160)

$5.99

$

In Stock, Qty 20+

0

G7-20010-75210

Echo 20010-75210

RETAINER, ROPE
(Superseded to A522000040)

$2.49

$

In Stock, Qty 7

0

G7-20020-75180

Echo 20020-75180

ROPE
(Superseded to A509000190)

$8.49

$

Usually ships in 2-4 days

0

G8-19420-00027

Echo 19420-00027

LABEL - MODEL
(Superseded to X504002770)

$2.49

$

In Stock, only 2 left!

0

G9-20024-75130

Echo 20024-75130

SPRING
(Superseded to A504000060)

$14.99

$

In Stock, Qty 12

0

G9-70131-75120

Echo 70131-75120

REEL, ROPE
(Superseded to A506000150)

$15.99

$

Usually ships in 2-4 days

0
