C 350 - Shindaiwa Brush Cutter (Original Version) Crankcase Parts Diagram

Brush Cutter

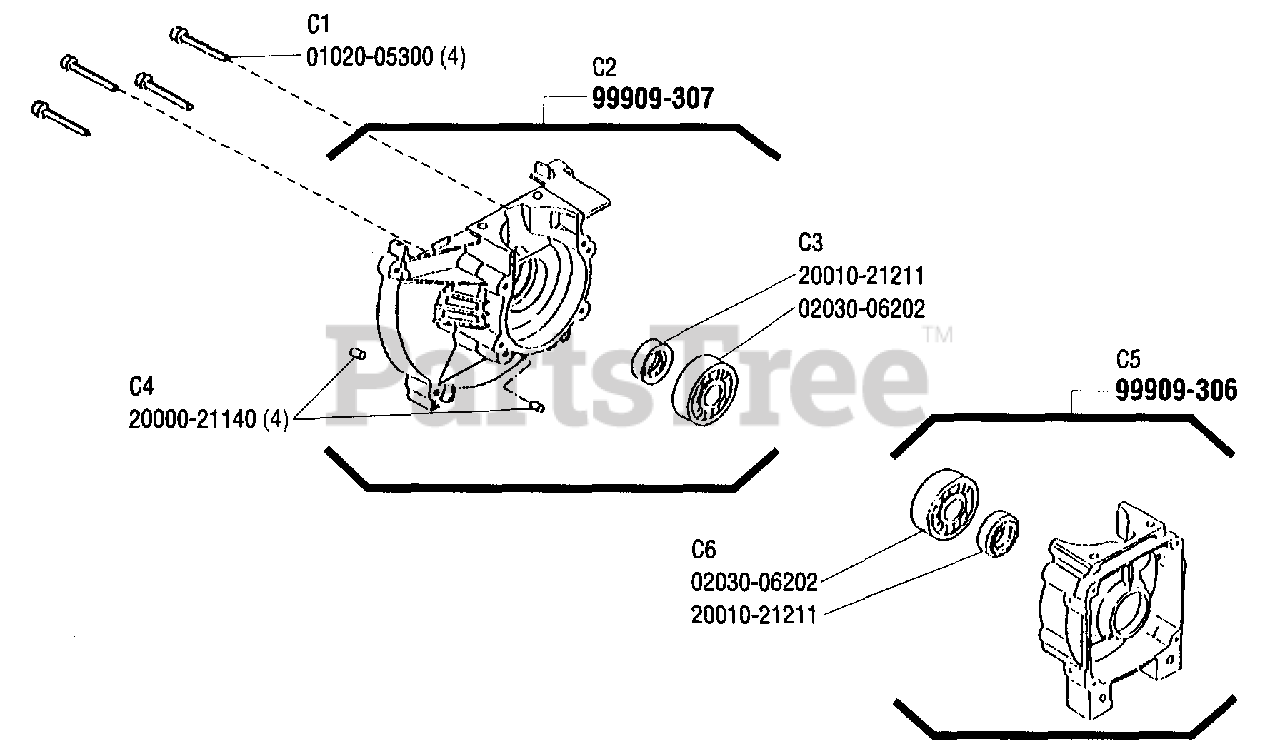

Crankcase Parts Diagram

  • Title
C1-01020-05300

Echo 01020-05300

SCREW - 5X30
(Superseded to 90010505030)

$1.49

$

In Stock, only 3 left!

0

C2-99909-307

Echo 99909-307

CRANKCASE ASSY - FRONT
(Superseded to P021033180)

$88.99

$

In Stock, only 1 left!

0

C3-02030-06202

Echo 02030-06202

BEARING, BALL - 6202
(Superseded to 90081036202)

$9.99

$

In Stock, Qty 6

0

C3-20010-21211

Echo 20010-21211

SEAL, OIL
(Superseded to V508000050)

$7.49

$

In Stock, Qty 12

0

C4-20000-21140

Echo 20000-21140

PIN - LOCATING
(Superseded to V623000060)

$0.99

$

Usually ships in 2-4 days

0

C5-99909-306

Echo 99909-306

CRANKCASE ASSY - REAR
(Superseded to P021033430)

$26.99

$

In Stock, only 1 left!

0

C6-02030-06202

Echo 02030-06202

BEARING, BALL - 6202
(Superseded to 90081036202)

$9.99

$

In Stock, Qty 6

0

C6-20010-21211

Echo 20010-21211

SEAL, OIL
(Superseded to V508000050)

$7.49

$

In Stock, Qty 12

0
