C 35 - Shindaiwa Brush Cutter (SN: T23620000001 - T23620999999) MAIN PIPE Parts Diagram

Brush Cutter

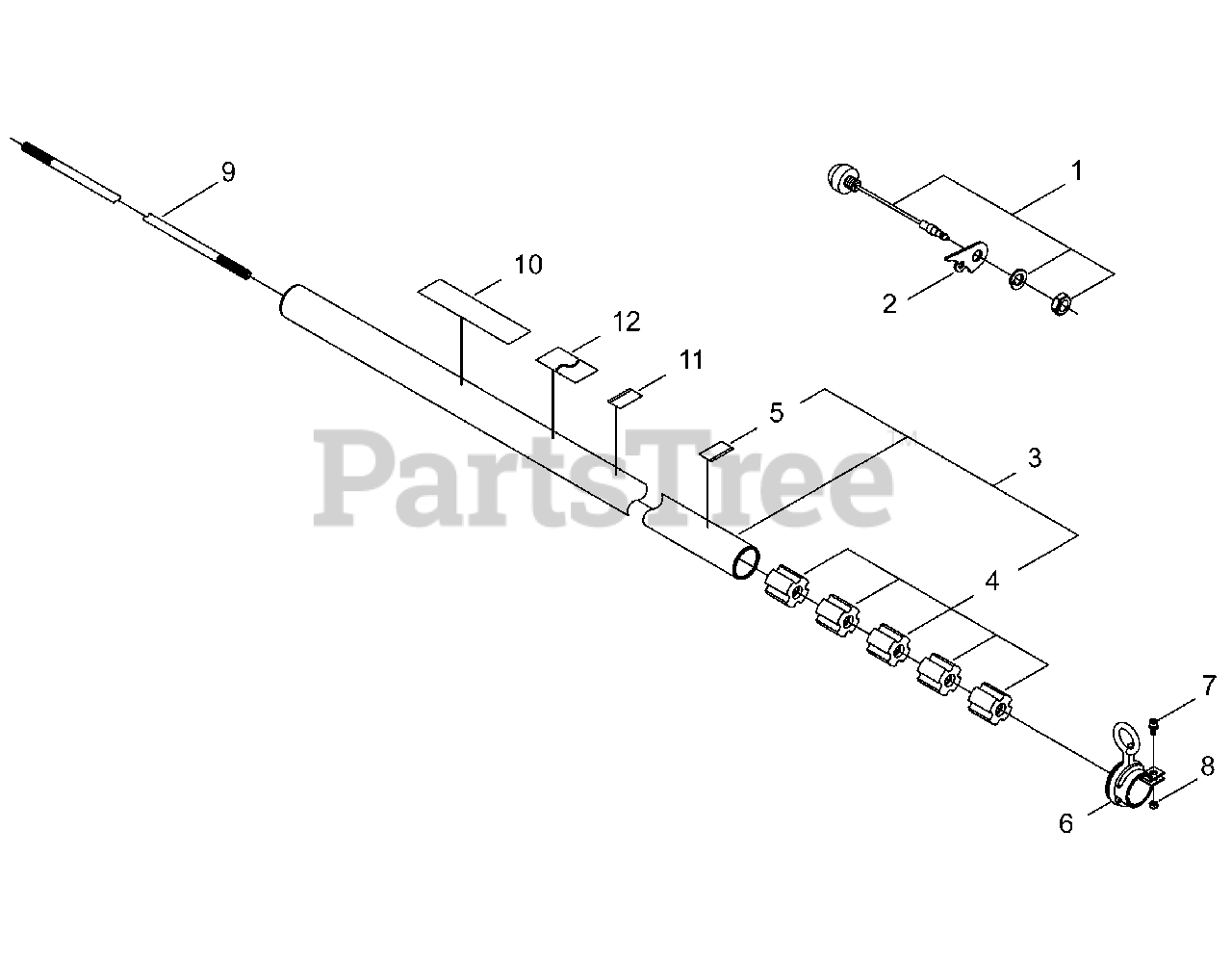

MAIN PIPE Parts Diagram

  • Title

1

Echo A045000330

SWITCH, ON-OFF

Note: 22011-11411

$13.99

$

Usually ships in 2-4 days

0

2

Echo A439000500

BRACKET

Note: 20011-74120

$0.99

$

Usually ships in 2-4 days

0

3

Echo C050002390

MAIN PIPE ASSY
(Superseded to P021040450)

Note: 72017-12100

$106.99

$

Usually ships in 2-4 days

0

4

Echo C501000070

BUSHING

Note: 22015-12120

$5.49

$

Usually ships in 2-4 days

0

5

Echo X505002860

LABEL - ALIGNMENT
(Superseded to 89015204930)

Note: 72005-12140

$0.99

$

In Stock, Qty 9

0

6

Echo C063000030

HANGER

Note: 22017-12210

$9.49

$

Usually ships in 2-4 days

0

7

Echo V203000700

BOLT M5×12

Note: 11022-05120

$0.99

$

In Stock, Qty 20+

0

8

Echo 90050000005

NUT 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

9

Echo C504000700

DRIVESHAFT

Note: 22017-12410

$66.99

$

In Stock, only 1 left!

0

10

Echo X504002780

LABEL, shindaiwa PROFESSIONAL

Note: 19420-00084

$3.49

$

In Stock, only 2 left!

0

11

Echo X505002850

LABEL, HANDLE

Note: 19401-00269

$0.99

$

In Stock, only 3 left!

0

12

Echo X505005890

LABEL, CAUTION (BLADE CAPABLE)

Note: 19422-00029

$5.49

$

Usually ships in 2-4 days

0
