C 35 - Shindaiwa Brush Cutter (SN: T23620000001 - T23620999999) HARNESS / DEBRIS SHIELD Parts Diagram

Brush Cutter

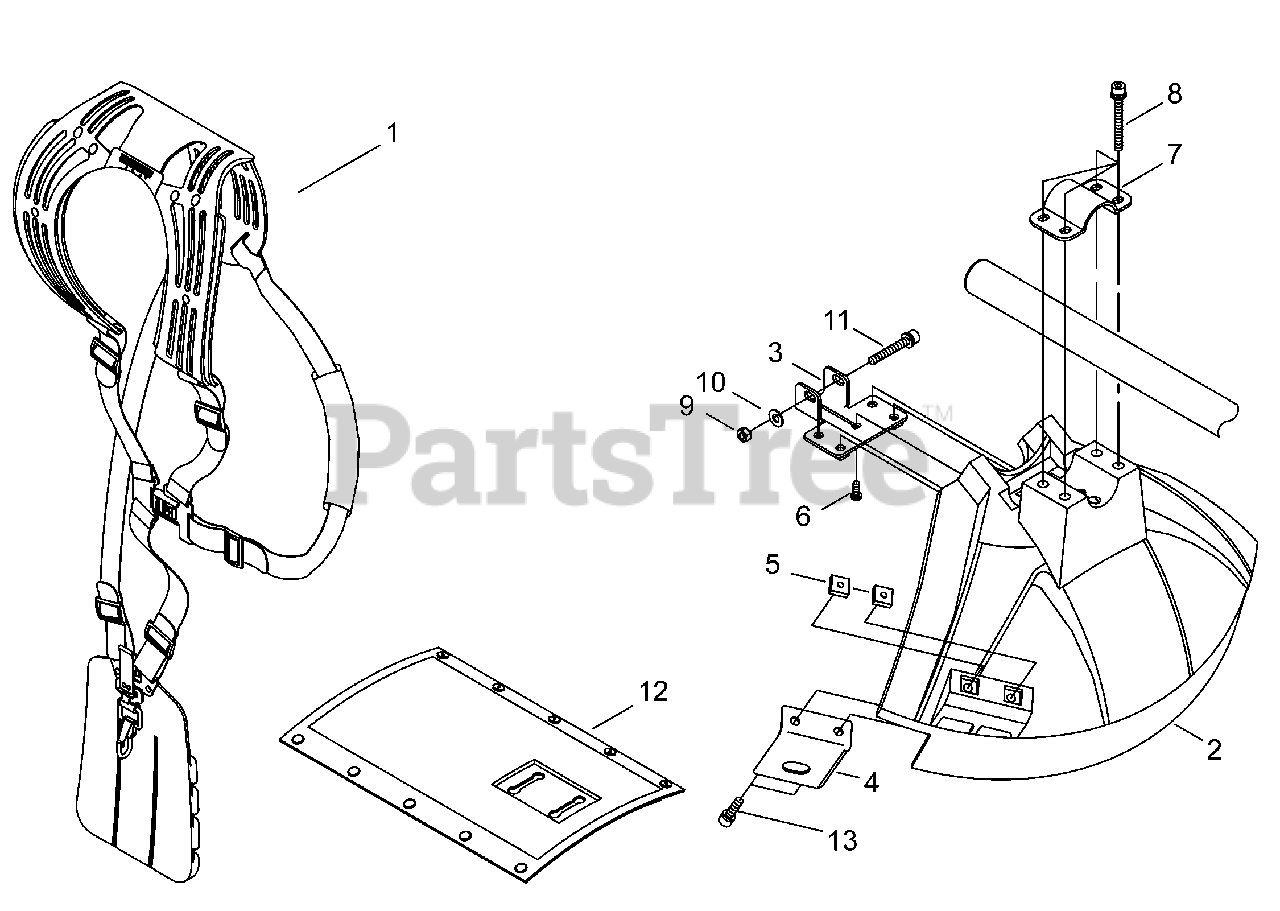

HARNESS / DEBRIS SHIELD Parts Diagram

  • Title
1

Echo C062000430

HARNESS ASSY

Note: 64007-67011

$75.99

$

Usually ships in 2-4 days

0

2

Echo C550000390

SHIELD, DEBRIS
(Superseded to C550000391)

Note: 72480-16113

$11.99

$

In Stock, only 1 left!

0

3

Echo C551000110

CLAMP, LOWER

Note: 72017-16130

$3.99

$

In Stock, Qty 6

0

4

Echo C554000040

CUTTER

Note: 72480-16121

$5.49

$

In Stock, Qty 5

0

5

Echo V263000130

NUT M5

Note: 22420-16120

$0.99

$

In Stock, Qty 7

0

6

Echo V252000240

SCREW HILO 4×10

Note: 11202-40100

$0.99

$

In Stock, Qty 5

0

7

Echo C551000060

CLAMP, UPPER

Note: 72480-16210

$1.99

$

In Stock, Qty 8

0

8

Echo V203000610

BOLT M5×45

Note: 11022-05450

$1.99

$

In Stock, Qty 20+

0

9

Echo 90050000006

NUT, HEX M6

Note: 01500-06051

$0.99

$

In Stock, Qty 20+

0

10

Echo 90063000006

WASHER

Note: 01613-06100

$0.99

$

In Stock, Qty 10

0

11

Echo V204000450

BOLT M6×40

Note: 11022-06400

$1.99

$

In Stock, only 2 left!

0

12

Echo V420002480

PROTECTOR

Note: 22017-17110

$19.99

$

Usually ships in 2-4 days

0

13

Echo V203000720

BOLT M5×16
(Superseded to 9112205016)

Note: 11020-05160

$0.99

$

In Stock, Qty 20+

0
