C 35 - Shindaiwa Brush Cutter (SN: T23620000001 - T23620999999) FUEL TANK Parts Diagram

Brush Cutter

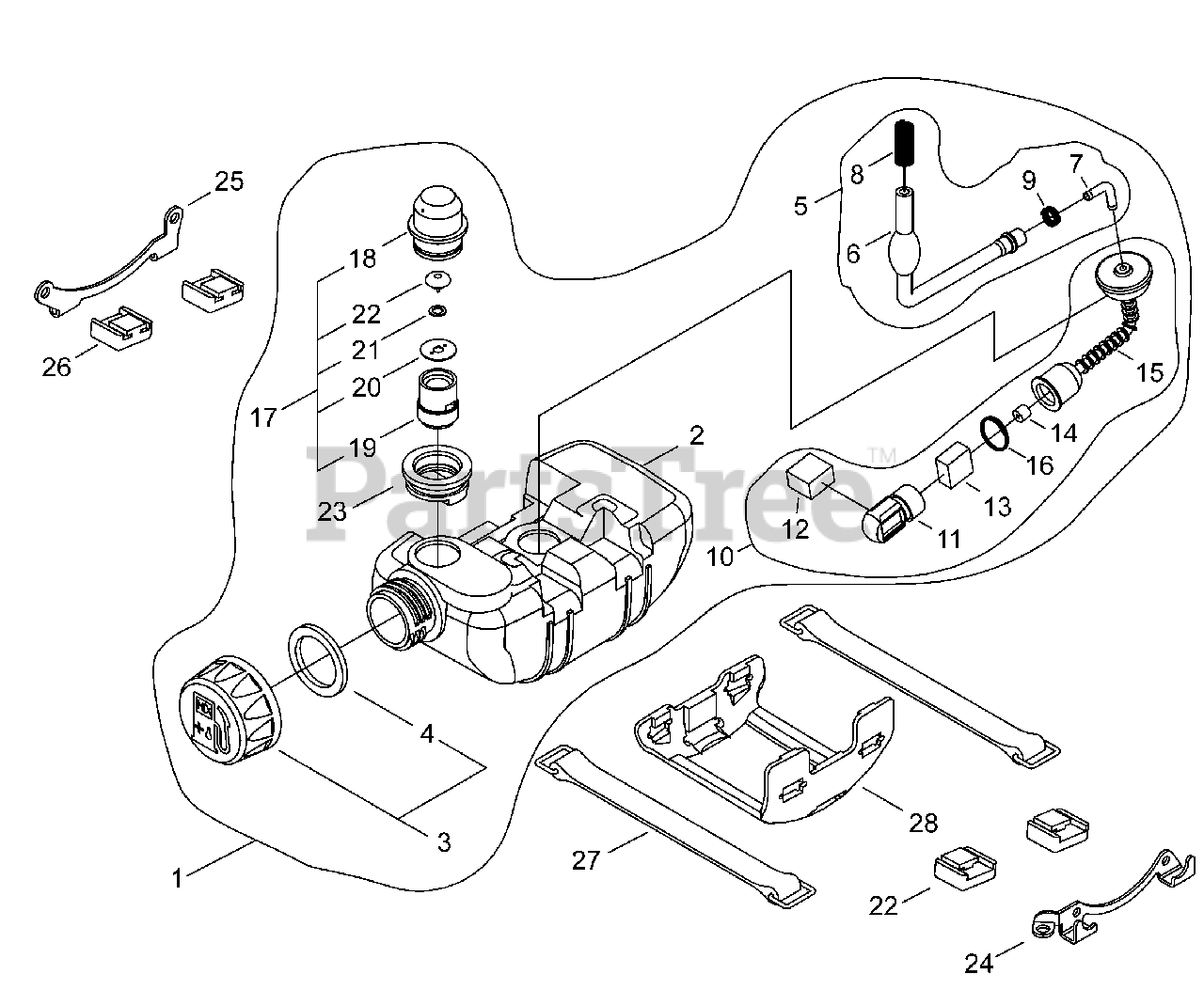

FUEL TANK Parts Diagram

  • Title
1

Echo P021017870

TANK ASSY, FUEL
(Superseded to P021017871)

Note: 20011-85002

$86.99

$

Usually ships in 2-4 days

0

2

Echo A350001320

TANK, FUEL
(Superseded to A350001321)

Note: 20011-85112

$21.99

$

Usually ships in 2-4 days

0

3

Echo A033000070

CAP ASSY, FUEL

Note: 70043-85201

$3.99

$

In Stock, Qty 20+

0

4

Echo V107000010

GASKET, FUEL CAP

Note: 20000-85221

$1.99

$

In Stock, Qty 20+

0

5

Echo P021017770

PIPE ASSY, FUEL

Note: 20000-85303

$11.99

$

In Stock, only 1 left!

0

6

Echo V470001080

PIPE, FUEL
(Superseded to V470002240)

Note: 20000-85313

$13.99

$

In Stock, Qty 13

0

7

Echo V186000220

CONNECTOR

Note: 20000-85321

$1.99

$

In Stock, Qty 12

0

8

Echo V451000850

CLAMP

Note: 20000-85340

$0.99

$

Usually ships in 2-4 days

0

9

Echo V490000610

CLIP

Note: 20000-85350

$0.99

$

In Stock, Qty 12

0

10

Echo A037000000

FILTER ASSY, FUEL

Note: 20011-85401

$21.99

$

Usually ships in 2-4 days

0

11

Echo A369000030

WEIGHT

Note: 22100-85411

$3.49

$

In Stock, only 2 left!

0

12

Echo A368000020

FILTER, FUEL - A

Note: 22100-85420

$1.99

$

In Stock, Qty 8

0

13

Echo A368000030

FILTER, FUEL - B

Note: 22100-85431

$0.99

$

In Stock, Qty 9

0

14

Echo A356000080

VALVE, CHECK

Note: 20000-85440

$7.49

$

In Stock, only 4 left!

0

15

Echo V470001110

PIPE, FUEL

Note: 20011-85451

$10.99

$

In Stock, Qty 6

0

16

Echo V490000590

CLIP

Note: 22102-85440

$0.99

$

In Stock, Qty 20+

0

17

Echo A039000020

VENT ASSY

Note: 20000-85500

$8.99

$

In Stock, only 1 left!

0

18

Echo A362000000

CAP, VENT

Note: 20000-85511

$1.99

$

Usually ships in 2-4 days

0

19

Echo A358000030

HOLDER, VENT

Note: 20000-85521

$1.99

$

Usually ships in 2-4 days

0

20

Echo A359000010

RETAINER

Note: 22100-85240

$0.99

$

Usually ships in 2-4 days

0

21

Echo V303000170

WASHER

Note: 22100-85250

$0.99

$

Usually ships in 2-4 days

0

22

Echo A356000090

VENT ASSY

Note: 22100-85260

$4.99

$

In Stock, only 4 left!

0

23

Echo V138000020

GROMMET, VENT

Note: 20000-85579

$19.99

$

In Stock, Qty 16

0

24

Echo A393000180

BRACKET S

Note: 20021-86110

$3.49

$

Usually ships in 2-4 days

0

25

Echo A393000190

BRACKET M

Note: 20011-86120

$2.49

$

Usually ships in 2-4 days

0

26

Echo V420002390

CUSHION, FUEL TANK

Note: 20010-86130

$0.99

$

In Stock, Qty 6

0

27

Echo A392000060

STRAP, FUEL TANK

Note: 20020-86140

$4.49

$

In Stock, Qty 9

0

28

Echo A175000200

GUARD, FUEL TANK

Note: 70005-86131

$8.99

$

In Stock, only 1 left!

0
