C 35 - Shindaiwa Brush Cutter (SN: T02020000001 - T02020999999) FLYWHEEL / IGNITION COIL Parts Diagram

Brush Cutter

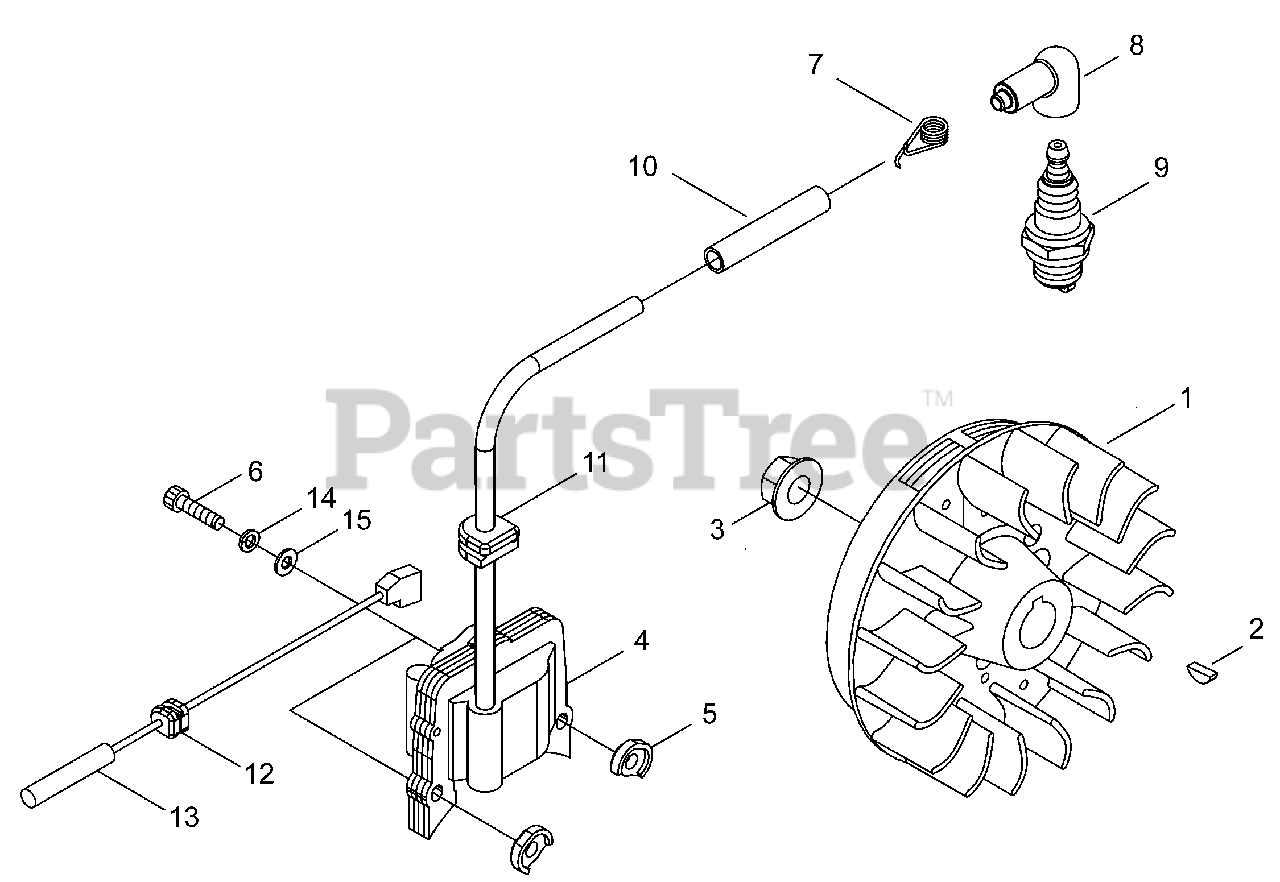

FLYWHEEL / IGNITION COIL Parts Diagram

  • Title

1

Echo A409000640

FLYWHEEL

Note: 70200-71200

$45.99

$

Usually ships in 2-4 days

0

2

Echo 9311503010

KEY, WOODRUFF 3×10

Note: 02403-03100

$0.99

$

In Stock, Qty 20+

0

3

Echo V266000110

NUT, FLANGE M10

Note: 11527-10212

$0.99

$

Usually ships in 2-4 days

0

4

Echo A411000780

COIL, IGNITION

Note: 70200-71610

$67.99

$

In Stock, only 2 left!

0

5

Echo V352000140

COLLAR 4

Note: 20010-71631

$1.99

$

In Stock, only 1 left!

0

6

Echo 9110004024

BOLT M4×24

Note: 01020-04240

$0.99

$

In Stock, Qty 8

0

7

Echo A426000050

TERMINAL, SPARK PLUG

Note: 20000-72230

$1.49

$

In Stock, Qty 12

0

8

Echo A427000100

CAP, SPARK PLUG

Note: 22102-72220

$2.49

$

In Stock, Qty 19

0

9

Echo 15902603930

SPARK PLUG - CJ8
(Superseded to CJ8)

Note: CJ8

$3.49

$

In Stock, Qty 20+

0

10

Echo V475004880

TUBE

Note: 20011-71660

$0.99

$

Usually ships in 2-4 days

0

11

Echo V135000080

GROMMET

Note: 20011-72110

$1.99

$

Usually ships in 2-4 days

0

12

Echo V136000060

GROMMET, LEAD

Note: 20011-72120

$0.99

$

Usually ships in 2-4 days

0

13

Echo A412000030

LEAD - IGNITION

Note: 70200-71640

$2.49

$

Usually ships in 2-4 days

0

14

Echo 90060500004

WASHER, SPRING 4mm

Note: 01600-04101

$0.99

$

In Stock, Qty 20+

0

15

Echo V302000010

WASHER 4.3×9.6×0.8

Note: 20010-71650

$0.99

$

In Stock, Qty 6

0
