C 35 - Shindaiwa Brush Cutter (SN: 06010001 - 09319999) HANDLEBAR / THROTTLE CONTROL Parts Diagram

Brush Cutter

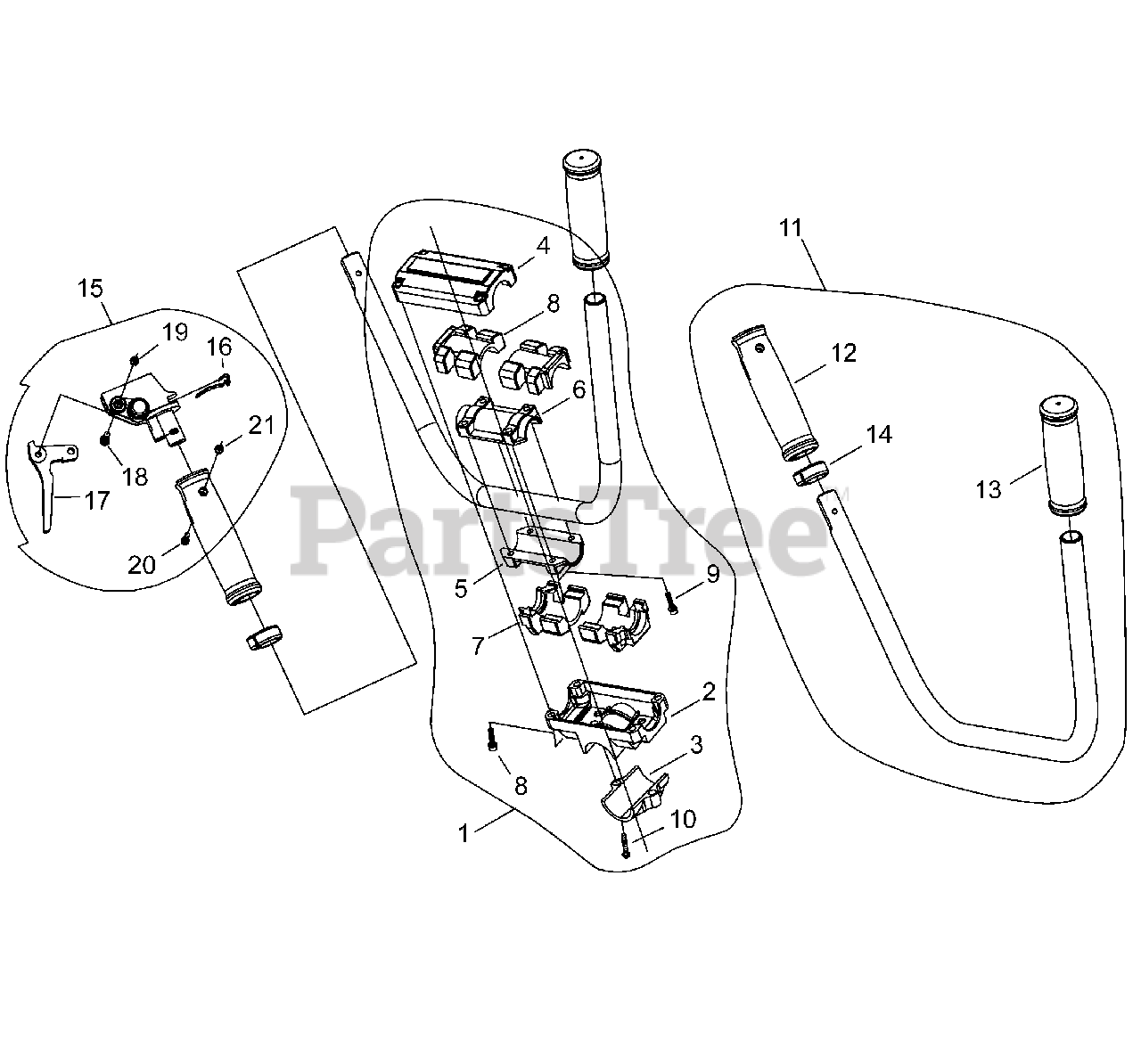

HANDLEBAR / THROTTLE CONTROL Parts Diagram

  • Title
1

Echo P021031460

BRACKET KIT, HANDLEBAR
(Superseded to P021031461)

Note: 72017-14100

$49.99

$

Usually ships in 2-4 days

0

2

Echo C423000700

BRACKET, HANDLE Ø28

Note: 72017-14110

$11.99

$

In Stock, only 1 left!

0

3

Echo C423000720

CLAMP, LOWER Ø28

Note: 72017-14120

$5.99

$

Usually ships in 2-4 days

0

4

Echo C423000740

CLAMP, UPPER

Note: 72017-14130

$9.49

$

Usually ships in 2-4 days

0

5

Echo C423000760

CLAMP, LOWER

Note: 22015-14140

$5.49

$

Usually ships in 2-4 days

0

6

Echo C423000770

CLAMP, UPPER

Note: 22015-14150

$5.99

$

Usually ships in 2-4 days

0

7

Echo V420002460

CUSHION, LOWER

Note: 22015-14160

$2.99

$

Usually ships in 2-4 days

0

8

Echo V420002470

CUSHION, UPPER

Note: 22015-14170

$2.49

$

Usually ships in 2-4 days

0

9

Echo V203000630

BOLT M5×25

Note: 11022-05250

$0.99

$

In Stock, Qty 20+

0

10

Echo 9114206025

SCREW M6×25

Note: 11210-06250

$0.99

$

Usually ships in 2-4 days

0

11

Echo P021035490

HANDLEBAR ASSY

Note: 22020-14200

$79.99

$

In Stock, only 1 left!

0

12

Echo C403000400

GRIP, RIGHT

Note: 22015-14220

$11.99

$

In Stock, only 1 left!

0

13

Echo C403000410

GRIP, LEFT

Note: 22015-14230

$11.99

$

In Stock, only 1 left!

0

14

Echo C487000240

HOLDER, THROTTLE CABLE

Note: 22015-14290

$2.49

$

Usually ships in 2-4 days

0

15

Echo C044000830

THROTTLE CONTROL ASSY

Note: 22015-14301

$20.99

$

Usually ships in 2-4 days

0

16

Echo C617000410

STOPPER, THROTTLE TRIGGER

Note: 22015-14321

$3.99

$

Usually ships in 2-4 days

0

17

Echo C450000510

TRIGGER, THROTTLE

Note: 22015-14331

$4.99

$

Usually ships in 2-4 days

0

18

Echo V203000810

BOLT

Note: 22015-14340

$0.99

$

In Stock, only 1 left!

0

19

Echo V263000240

NUT, LOCK M5

Note: 72935-61240

$0.99

$

Usually ships in 2-4 days

0

20

Echo 9110004024

BOLT M4×24

Note: 01020-04240

$0.99

$

In Stock, Qty 8

0

21

Echo V262000080

NUT, NYLON M4

Note: 22015-14390

$0.99

$

In Stock, only 1 left!

0
