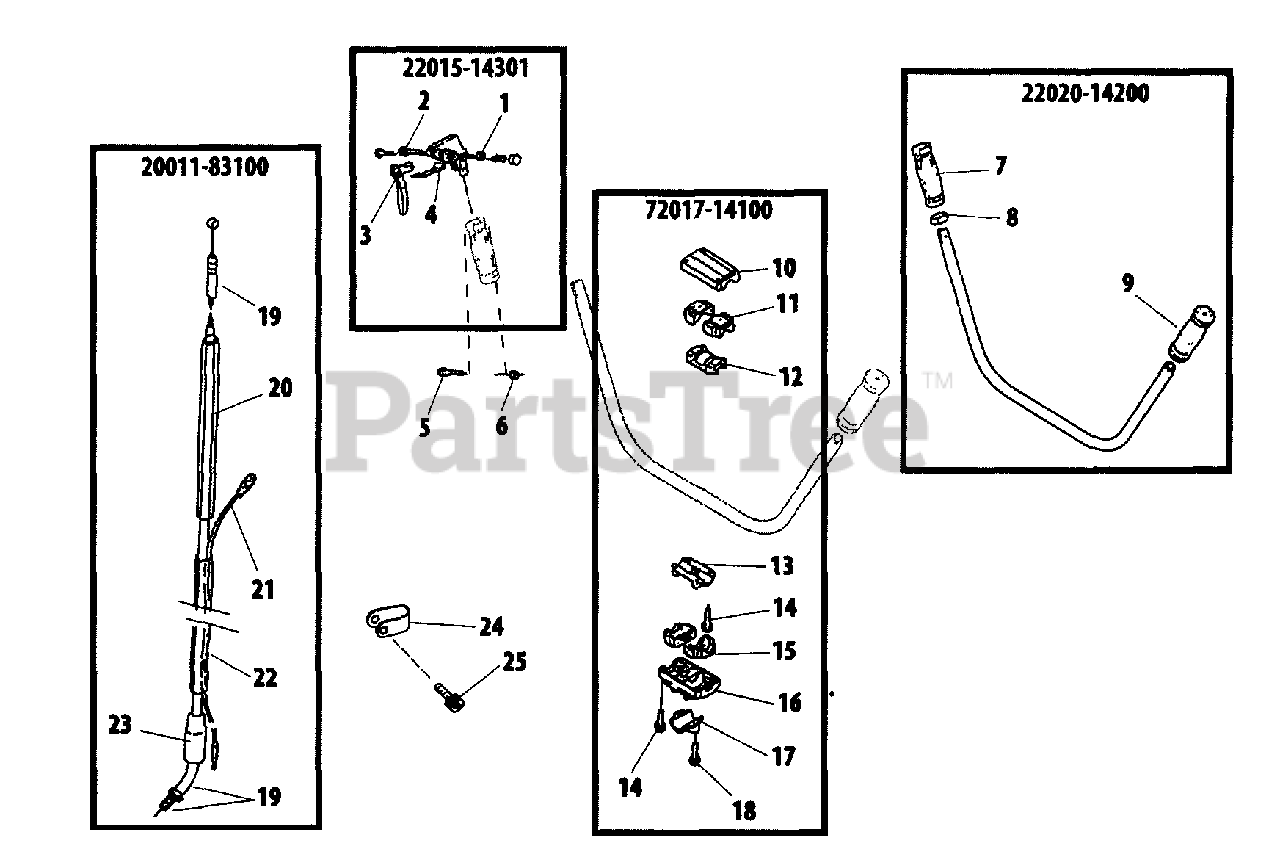

C 35 - Shindaiwa Brush Cutter (Original Version) Handle Parts Diagram

Brush Cutter

Handle Parts Diagram

  • Title

22015-14301

Echo 22015-14301

THROTTLE CONTROL ASSY
(Superseded to C044000830)

$20.99

$

Usually ships in 2-4 days

0

1

Echo 22015-14350

LOCKNUT - 5
(Superseded to 72935-61240)

$0.99

$

Usually ships in 2-4 days

0

2

Echo 22015-14340

BOLT
(Superseded to V203000810)

$0.99

$

In Stock, only 1 left!

0

3

Echo 22015-14331

TRIGGER, THROTTLE
(Superseded to C450000510)

$4.99

$

Usually ships in 2-4 days

0

4

Echo 22015-14321

THROTTLE LEVER STOPPER
(Superseded to C617000410)

$3.99

$

Usually ships in 2-4 days

0

5

Echo 01020-04240

SCREW - 4X24
(Superseded to 9110004024)

$0.99

$

In Stock, Qty 8

0

6

Echo 22015-14390

NUT - 4 -- NYLON
(Superseded to V262000080)

$0.99

$

In Stock, only 1 left!

0

22020-14200

Echo 22020-14200

HANDLE ASSY
(Superseded to P021035490)

$79.99

$

In Stock, only 1 left!

0

7

Echo 22015-14220

GRIP - RIGHT
(Superseded to C403000400)

$11.99

$

In Stock, only 1 left!

0

8

Echo 22015-14290

HOLDER, CABLE
(Superseded to C487000240)

$2.49

$

Usually ships in 2-4 days

0

9

Echo 22015-14230

GRIP - LEFT
(Superseded to C403000410)

$11.99

$

In Stock, only 1 left!

0

72017-14100

Echo 72017-14100

HANDLE BRACKET KIT
(Superseded to P021031460)

$49.99

$

Usually ships in 2-4 days

0

10

Echo 72017-14130

CAP - UPPER
(Superseded to C423000740)

$9.49

$

Usually ships in 2-4 days

0

11

Echo 22015-14170

CUSHION - UPPER
(Superseded to V420002470)

$2.49

$

Usually ships in 2-4 days

0

12

Echo 22015-14150

CLAMP - UPPER
(Superseded to C423000770)

$5.99

$

Usually ships in 2-4 days

0

13

Echo 22015-14140

CLAMP - LOWER
(Superseded to C423000760)

$5.49

$

Usually ships in 2-4 days

0

14

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

15

Echo 22015-14160

CUSHION - LOWER
(Superseded to V420002460)

$2.99

$

Usually ships in 2-4 days

0

16

Echo 72017-14110

BRACKET, HANDLE
(Superseded to C423000700)

$11.99

$

In Stock, only 1 left!

0

17

Echo 72017-14120

SPACER
(Superseded to C423000720)

$5.99

$

Usually ships in 2-4 days

0

18

Echo 11210-06250

SCREW - 6X25
(Superseded to 9114206025)

$0.99

$

Usually ships in 2-4 days

0

20011-83100

Echo 20011-83100

THROTTLE CONTROL ASSY
(Superseded to V043000490)

$19.99

$

In Stock, only 2 left!

0

19

Echo 20011-83110

CABLE, THROTTLE
(Superseded to V430002870)

$12.99

$

Usually ships in 2-4 days

0

20

Echo 20011-83140

TUBE, PROTECTIVE
(Superseded to V475004750)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 20011-83130

WIRE
(Superseded to V485001620)

$3.49

$

Usually ships in 2-4 days

0

22

Echo 20011-83120

TUBE, PROTECTIVE
(Superseded to V475004740)

$0.99

$

Usually ships in 2-4 days

0

23

Echo 20005-83160

CAP, DUST
(Superseded to A246000020)

$0.99

$

In Stock, Qty 18

0

24

Echo 20050-83170

CLAMP, CABLE
(Superseded to C487000300)

$0.99

$

Usually ships in 2-4 days

0

25

Echo 11024-04120

SCREW - 4X12
(Superseded to V202000180)

$0.99

$

In Stock, Qty 20+

0
