C 35 - Shindaiwa Brush Cutter (Original Version) Carburetor Parts Diagram

Brush Cutter

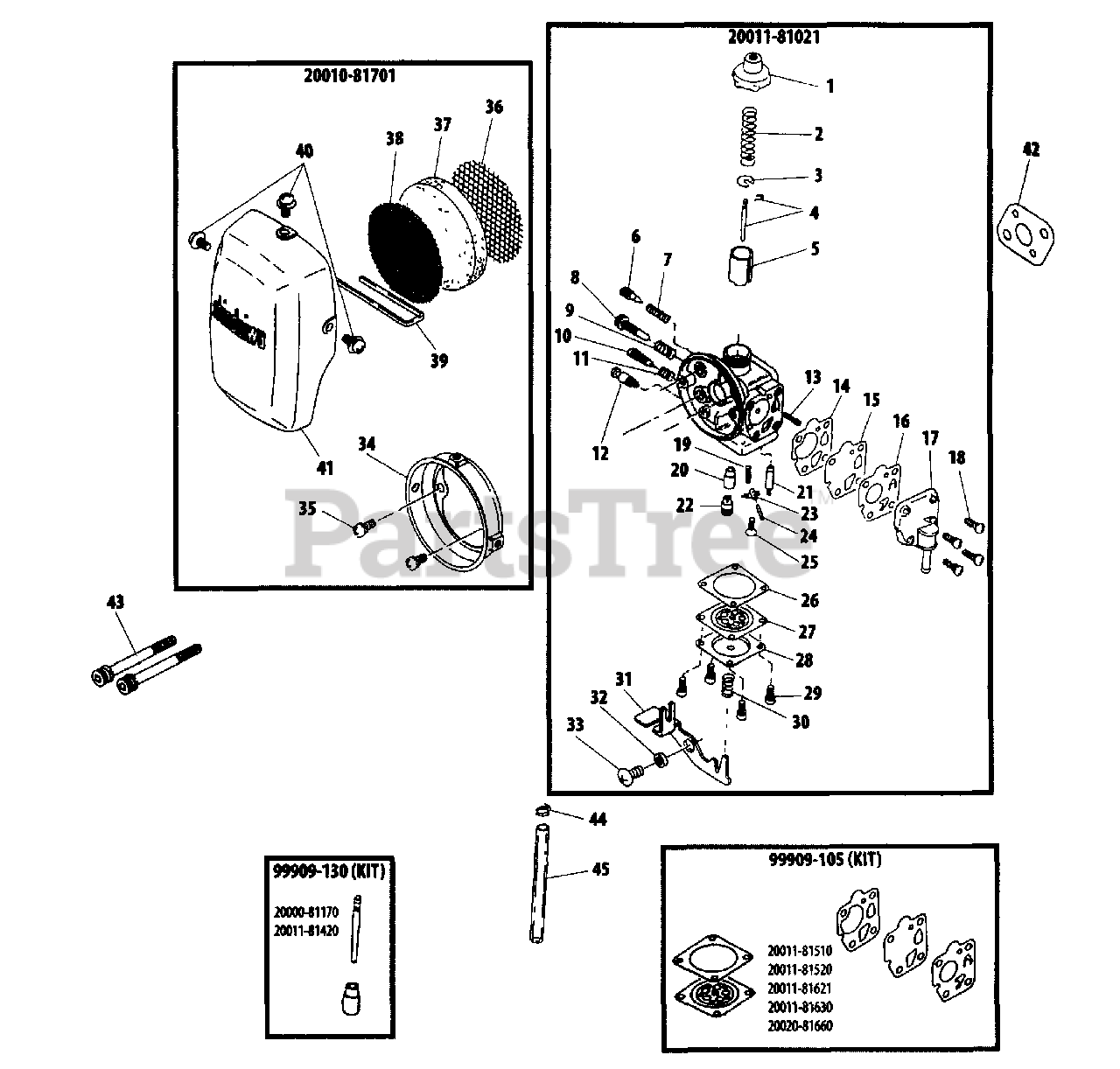

Carburetor Parts Diagram

  • Title
20011-81021

Echo 20011-81021

CARBURETOR
(Superseded to A021003490)

$89.99

$

Usually ships in 2-4 days

0

1

Echo 20000-81130

CAP
(Superseded to P004003400)

$7.99

$

In Stock, only 1 left!

0

2

Echo 20011-81140

SPRING
(Superseded to P004000440)

$1.99

$

Usually ships in 2-4 days

0

3

Echo 20000-81150

RETAINER
(Superseded to 12411505530)

$1.99

$

In Stock, Qty 12

0

4

Echo 20000-81170

NEEDLE
(Superseded to P004003390)

$12.99

$

Usually ships in 2-4 days

0

5

Echo 20011-81182

VALVE, THROTTLE
(Superseded to P004001260)

$16.99

$

Usually ships in 2-4 days

0

6

Echo 20000-81330

SCREW, SLOW AIR
(Superseded to P004000880)

$2.99

$

Usually ships in 2-4 days

0

7

Echo 20000-81340

SPRING
(Superseded to P004000890)

$0.99

$

In Stock, Qty 6

0

8

Echo 20000-81310

SCREW, IDLE ADJUST
(Superseded to 12415905530)

$2.49

$

In Stock, only 4 left!

0

9

Echo 20000-81320

SPRING
(Superseded to 12433305630)

$0.99

$

In Stock, Qty 7

0

10

Echo 20011-81351

SCREW, IDLE ADJUST
(Superseded to P004001300)

$5.49

$

In Stock, only 4 left!

0

11

Echo 20011-81360

SCREW, IDLE ADJUST
(Superseded to 12435521330)

$1.99

$

In Stock, Qty 10

0

12

Echo 20011-81550

VALVE, OVERFLOW
(Superseded to P004001360)

$10.99

$

In Stock, only 4 left!

0

13

Echo 20011-81680

SPRING
(Superseded to 12436721330)

$1.49

$

In Stock, Qty 6

0

14

Echo 20011-81630

GASKET, METERING
(Superseded to 12436321330)

$1.99

$

In Stock, Qty 7

0

15

Echo 20011-81621

DIAPHRAGM, METERING
(Superseded to P004001430)

$5.99

$

In Stock, only 3 left!

0

16

Echo 20020-81660

VALVE, PUMP
(Superseded to P004001880)

$7.99

$

In Stock, Qty 8

0

17

Echo 20011-81641

BODY, PUMP
(Superseded to P004001440)

$12.99

$

In Stock, only 1 left!

0

18

Echo 20000-81650

SCREW
(Superseded to P004001030)

$0.99

$

In Stock, Qty 20+

0

19

Echo 20011-81430

SPRING
(Superseded to 12433121330)

$1.49

$

In Stock, only 2 left!

0

20

Echo 20011-81420

HOLDER, JET
(Superseded to P004001320)

$3.99

$

Usually ships in 2-4 days

0

21

Echo 20000-81441

VALVE, INLET NEEDLE
(Superseded to P004000930)

$10.99

$

In Stock, only 4 left!

0

22

Echo 20011-81410

JET
(Superseded to P004001310)

$11.99

$

In Stock, only 1 left!

0

23

Echo 20011-81451

LEVER, METERING
(Superseded to P004001340)

$4.99

$

Usually ships in 2-4 days

0

24

Echo 20011-81460

PIN, METERING LEVER
(Superseded to 12433221330)

$1.99

$

In Stock, only 3 left!

0

25

Echo 20011-81470

SCREW, METERING LEVER PIN
(Superseded to P004001350)

$0.99

$

Usually ships in 2-4 days

0

26

Echo 20011-81510

GASKET
(Superseded to 20011-81910)

$2.99

$

In Stock, Qty 13

0

27

Echo 20011-81520

DIAPHRAGM, METERING
(Superseded to 12434122830)

$14.99

$

In Stock, only 2 left!

0

28

Echo 20011-81530

COVER, DIAPHRAGM
(Superseded to 12432421330)

$4.49

$

In Stock, only 1 left!

0

29

Echo 20000-81540

SCREW
(Superseded to P004001000)

$0.99

$

Usually ships in 2-4 days

0

30

Echo 20011-81573

SPRING
(Superseded to P004001400)

$0.99

$

In Stock, only 3 left!

0

31

Echo 20011-81563

LEVER, TICKLER
(Superseded to P004001370)

$4.49

$

In Stock, only 1 left!

0

32

Echo 20011-81590

COLLAR
(Superseded to P004001420)

$0.99

$

In Stock, only 1 left!

0

33

Echo 20011-81581

SCREW
(Superseded to P004001410)

$0.99

$

In Stock, Qty 5

0

20010-81701

Echo 20010-81701

AIR CLEANER ASSY
(Superseded to A027000090)

$35.99

$

Usually ships in 2-4 days

0

34

Echo 20010-81711

CASE, AIR FILTER
(Superseded to A225000500)

$7.49

$

In Stock, only 1 left!

0

35

Echo 20000-81730

SCREW
(Superseded to V252000220)

$0.99

$

In Stock, only 1 left!

0

36

Echo 20010-81760

SCREEN - INNER
(Superseded to A230000040)

$8.99

$

In Stock, only 1 left!

0

37

Echo 20000-81740

FILTER, AIR - FOAM
(Superseded to A226000670)

$3.49

$

In Stock, Qty 20+

0

38

Echo 20000-81750

SCREEN - OUTER
(Superseded to A230000030)

$2.99

$

In Stock, only 2 left!

0

39

Echo 20010-81781

CLIP
(Superseded to A238000060)

$1.49

$

In Stock, only 2 left!

0

40

Echo 20000-81735

SCREW
(Superseded to V252000230)

$0.99

$

In Stock, Qty 7

0

41

Echo 20010-81771

COVER, AIR FILTER
(Superseded to A232000870)

$7.99

$

Usually ships in 2-4 days

0

42

Echo 20011-83410

GASKET
(Superseded to V103000960)

$0.99

$

In Stock, Qty 9

0

43

Echo 11020-05500

SCREW - 5X50
(Superseded to V203000850)

$1.99

$

In Stock, Qty 13

0

44

Echo 20021-85540

CLIP
(Superseded to V490000580)

$0.99

$

In Stock, Qty 6

0

45

Echo 20000-83313

TUBE, OVERFLOW
(Superseded to V471002640)

$0.99

$

Usually ships in 2-4 days

0

99909-130

Echo 99909-130

NEEDLE/JET KIT
(Superseded to 70012-98030)

$21.99

$

Usually ships in 2-4 days

0

99909-105

Echo 90909-105

DIAPHRAGM/GASKET KIT

$

$

Currently unavailable
