C 35 LA - Shindaiwa Brush Cutter (SN: 20007141 - 20007380) Outer Tube Parts Diagram

Brush Cutter

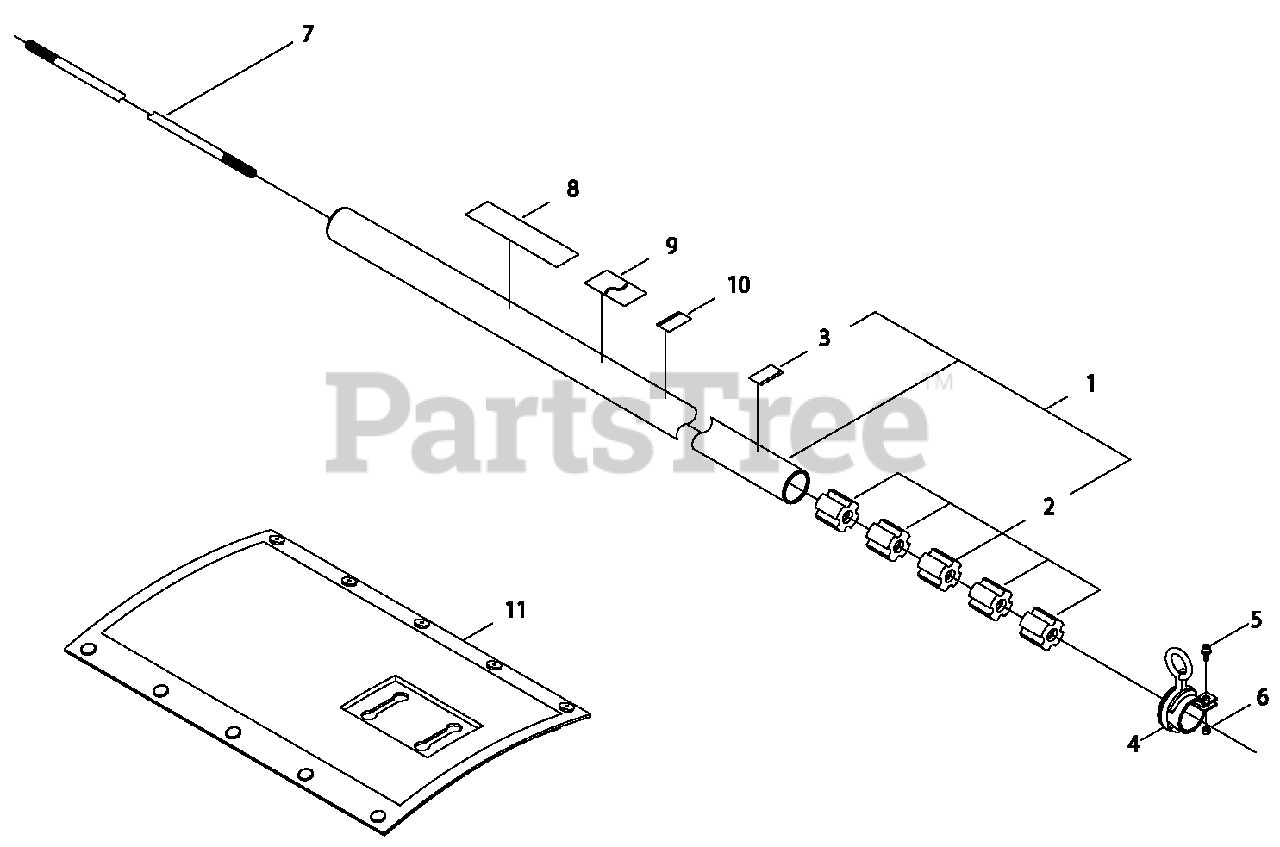

Outer Tube Parts Diagram

  • Title
1

Echo C050001850

MAIN PIPE ASSY

Note: 63080-62010

$

$

Currently unavailable

2

Echo C501000070

BUSHING

Note: 22015-12120

$5.49

$

Usually ships in 2-4 days

0

3

Echo X505002860

LABEL - ALIGNMENT
(Superseded to 89015204930)

Note: 72005-12140

$0.99

$

In Stock, Qty 9

0

4

Echo C063000030

HANGER ASSY

Note: 22017-12210

$9.49

$

Usually ships in 2-4 days

0

5

Echo V203000700

SCREW - 5X12

Note: 11022-05120

$0.99

$

In Stock, Qty 20+

0

6

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

7

Echo C504000700

DRIVESHAFT

Note: 22017-12410

$66.99

$

In Stock, only 1 left!

0

8

Echo X504002780

LABEL - SHINDAIWA PROFESSIONAL

Note: 19420-00084

$3.49

$

In Stock, only 2 left!

0

9

Echo X505005890

LABEL - CAUTION

Note: 19422-00029

$5.49

$

Usually ships in 2-4 days

0

10

Echo X505002850

LABEL - HANDLE LOCATION

Note: 19401-00269

$0.99

$

In Stock, only 3 left!

0

11

Echo V420002480

PROTECTOR

Note: 22017-17110

$19.99

$

Usually ships in 2-4 days

0
