Shindaiwa C 35 LA - Shindaiwa Brush Cutter (SN: 20007141 - 20007380) Carburetor / Air Filter Parts Lookup with Diagrams

1

Echo A021003490

CARBURETOR

Note: 20011-81021

$89.99

$

Usually ships in 2-4 days

2

Echo P004003400

THROTTLE CAP

Note: 20000-81130

$7.99

$

In Stock, only 1 left!

3

Echo P004000440

SPRING

Note: 20011-81140

$1.99

$

Usually ships in 2-4 days

4

Echo 12411505530

SEAT, SPRING

Note: 20000-81150

$1.99

$

In Stock, Qty 12

5

Echo P004003390

NEEDLE

Note: 20000-81170

$12.99

$

Usually ships in 2-4 days

6

Echo P004001260

VALVE, THROTTLE

Note: 20011-81182

$16.99

$

Usually ships in 2-4 days

7

Echo P004000880

SCREW, SLOW AIR

Note: 20000-81330

$2.99

$

Usually ships in 2-4 days

8

Echo P004000890

SPRING

Note: 20000-81340

$0.99

$

In Stock, Qty 6

9

Echo 12415905530

SCREW, IDLE ADJUST

Note: 20000-81310

$2.49

$

In Stock, only 4 left!

10

Echo 12433305630

SPRING

Note: 20000-81320

$0.99

$

In Stock, Qty 7

11

Echo P004001300

SCREW, ADJUST

Note: 20011-81351

$5.49

$

In Stock, only 4 left!

12

Echo 12435521330

SPRING, ADJUST

Note: 20011-81360

$1.99

$

In Stock, Qty 10

13

Echo P004001360

VALVE, OVERFLOW

Note: 20011-81550

$10.99

$

In Stock, only 4 left!

14

Echo 12436721330

SPRING

Note: 20011-81680

$1.49

$

In Stock, Qty 6

15

Echo 12436321330

GASKET, METERING

Note: 20011-81630

$1.99

$

In Stock, Qty 7

16

Echo P004001430

DIAPHRAGM, METERING

Note: 20011-81621

$5.99

$

In Stock, only 3 left!

17

Echo P004001880

VALVE, PUMP

Note: 20020-81660

$7.99

$

In Stock, Qty 8

18

Echo 2001181642

BODY, PUMP

(Superseded to Discontinued) 

Note: 20011-81641

$

Not available 

19

Echo P004001030

SCREW

Note: 20000-81650

$0.99

$

In Stock, Qty 20+

20

Echo 12433121330

SPRING

Note: 20011-81430

$1.49

$

In Stock, only 2 left!

21

Echo P004001310

JET

Note: 20011-81410

$11.99

$

In Stock, only 1 left!

22

Echo P004000930

VALVE, INLET NEEDLE

Note: 20000-81441

$10.99

$

In Stock, only 4 left!

23

Echo P004001320

HOLDER, JET

Note: 20011-81420

$3.99

$

Usually ships in 2-4 days

24

Echo P004001340

LEVER, METERING

Note: 20011-81451

$4.99

$

Usually ships in 2-4 days

25

Echo 12433221330

PIN, METERING LEVER

Note: 20011-81460

$1.99

$

In Stock, only 3 left!

26

Echo P004001350

SCREW, METERING LEVER PIN

Note: 20011-81470

$0.99

$

Usually ships in 2-4 days

27

Echo 12435821330

GASKET

Note: 20011-81510

$2.99

$

Usually ships in 2-4 days

28

Echo 12434122830

DIAPHRAGM, METERING

Note: 20011-81520

$14.99

$

In Stock, only 2 left!

29

Echo 12432421330

COVER, DIAPHRAGM

Note: 20011-81530

$4.49

$

In Stock, only 1 left!

30

Echo P004001000

SCREW

Note: 20000-81540

$0.99

$

Usually ships in 2-4 days

31

Echo P004001400

SPRING

Note: 20011-81573

$0.99

$

In Stock, only 3 left!

32

Echo P004001370

LEVER, TICKLER

Note: 20011-81563

$4.49

$

In Stock, only 1 left!

33

Echo P004001420

COLLAR

Note: 20011-81590

$0.99

$

In Stock, only 1 left!

34

Echo P004001410

SCREW

Note: 20011-81581

$0.99

$

In Stock, Qty 5

35

Echo A027000090

AIR CLEANER ASSY

Note: 20010-81701

$35.99

$

Usually ships in 2-4 days

36

Echo A225000500

CASE, AIR FILTER

Note: 20010-81711

$7.49

$

In Stock, only 1 left!

37

Echo V252000220

SCREW

Note: 20000-81730

$0.99

$

In Stock, only 1 left!

38

Echo A230000040

SCREEN - INNER

Note: 20010-81760

$8.99

$

In Stock, only 1 left!

39

Echo A226000670

FILTER, AIR - FOAM

Note: 20000-81740

$3.49

$

In Stock, Qty 20+

40

Echo A230000030

SCREEN - OUTER

Note: 20000-81750

$2.99

$

In Stock, only 2 left!

41

Echo A238000060

CLIP

Note: 20010-81781

$1.49

$

In Stock, only 2 left!

42

Echo V252000230

SCREW

Note: 20000-81735

$0.99

$

In Stock, Qty 7

43

Echo A232000870

COVER, AIR FILTER

Note: 20010-81771

$7.99

$

Usually ships in 2-4 days

44

Echo X506000130

LABEL - CHOKE

Note: 19404-00008

$0.99

$

In Stock, Qty 20+

45

Echo V203000850

SCREW - 5X50

Note: 11020-05500

$1.99

$

In Stock, Qty 13

46

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

47

Echo V471002630

PIPE

Note: 20000-83312

$0.99

$

In Stock, only 3 left!

48

Echo V043000510

CONTROL CABLE ASSY

Note: 62112-83010

$17.99

$

Usually ships in 2-4 days

49

Echo V430002870

CABLE, THROTTLE

Note: 20011-83110

$12.99

$

Usually ships in 2-4 days

50

Echo V475004750

TUBE, PROTECTIVE

Note: 20011-83140

$0.99

$

Usually ships in 2-4 days

51

Echo V485001680

LEAD

Note: 14352-02401

$2.49

$

Usually ships in 2-4 days

52

Echo V475004740

TUBE, PROTECTIVE

Note: 20011-83120

$0.99

$

Usually ships in 2-4 days

53

Echo A246000020

CAP, CABLE

Note: 20005-83160

$0.99

$

In Stock, Qty 18

54

Echo V103000960

GASKET, INTAKE

Note: 20011-83411

$0.99

$

In Stock, Qty 9

55

Echo A200000660

INSULATOR, INTAKE

Note: 20011-12212

$17.99

$

Usually ships in 2-4 days

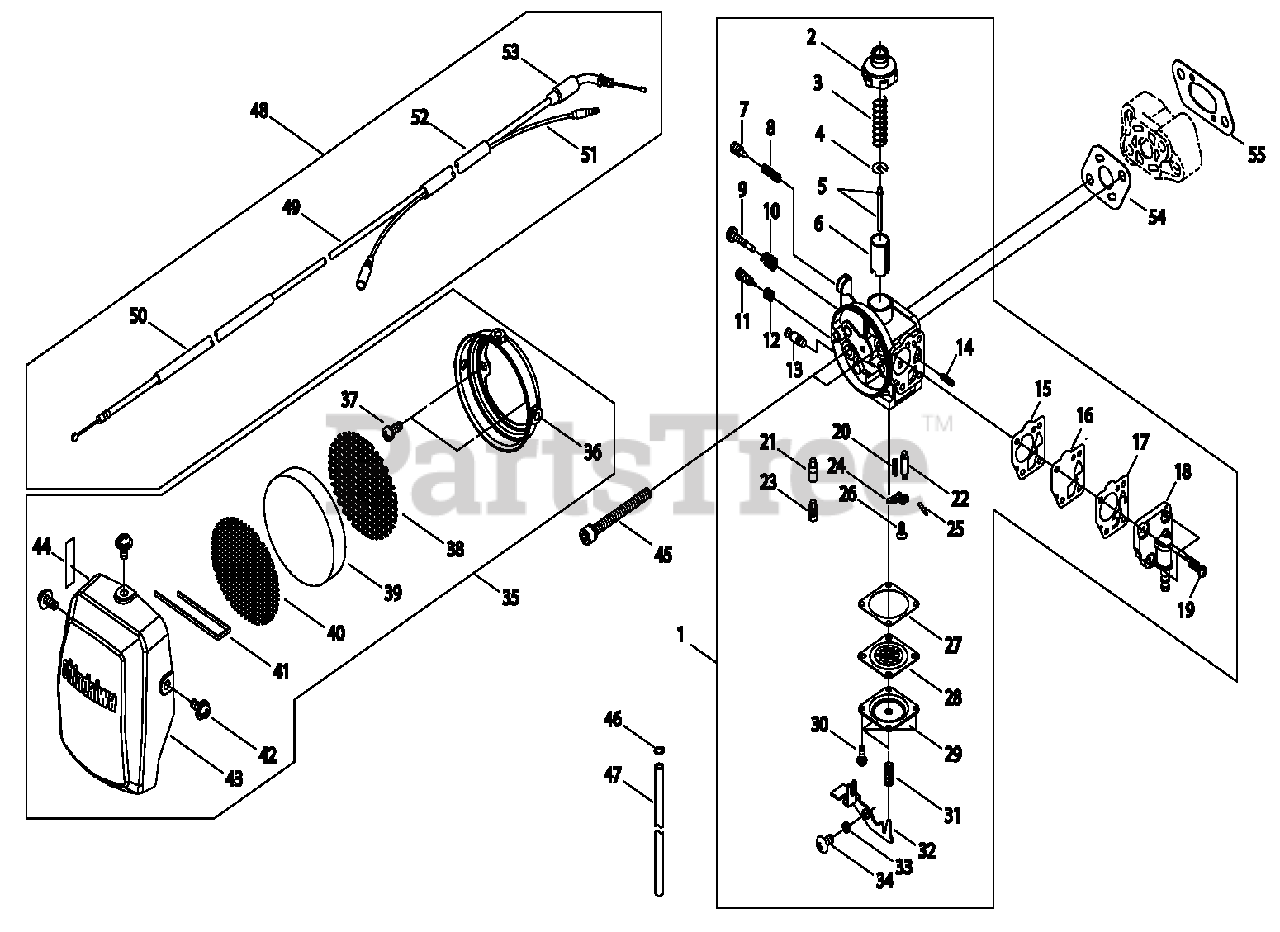

C 35 LA - Shindaiwa Brush Cutter (SN: 20007141 - 20007380) Carburetor / Air Filter Parts Diagram

Carburetor / Air Filter Parts Diagram
