C 35 LA - Shindaiwa Brush Cutter (Original Version) Starter Parts Diagram

Brush Cutter

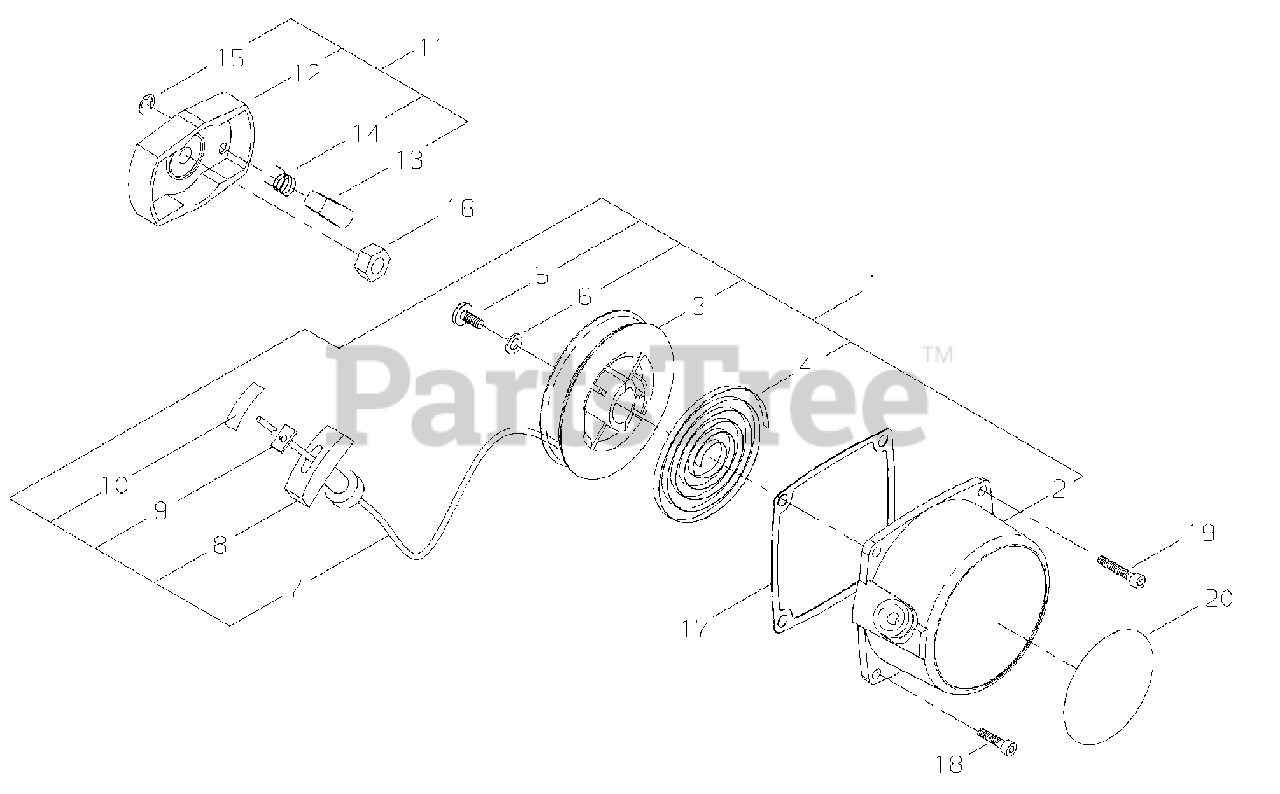

Starter Parts Diagram

  • Title
1

Echo 70131-75100

STARTER ASSY
(Superseded to P021035720)

$63.99

$

Usually ships in 2-4 days

0

2

Echo 70131-75110

CASE, STARTER
(Superseded to A500000840)

$32.99

$

Usually ships in 2-4 days

0

3

Echo 70131-75120

REEL, ROPE
(Superseded to A506000150)

$15.99

$

Usually ships in 2-4 days

0

4

Echo 20024-75130

SPRING
(Superseded to A504000060)

$14.99

$

In Stock, Qty 12

0

5

Echo 20035-75170

SCREW
(Superseded to V253000560)

$3.99

$

In Stock, Qty 14

0

6

Echo 70131-75140

WASHER
(Superseded to V303000190)

$1.49

$

Usually ships in 2-4 days

0

7

Echo 20020-75180

ROPE
(Superseded to A509000190)

$8.49

$

Usually ships in 2-4 days

0

8

Echo 20010-75190

GRIP, STARTER
(Superseded to A511000160)

$5.99

$

In Stock, Qty 20+

0

9

Echo 20010-75210

RETAINER, ROPE
(Superseded to A522000040)

$2.49

$

In Stock, Qty 7

0

10

Echo 20010-75230

TAPE
(Superseded to X707000050)

$1.99

$

Usually ships in 2-4 days

0

11

Echo 70131-75200

STARTER PAWL ASSY
(Superseded to A052000370)

$13.99

$

In Stock, only 2 left!

0

12

Echo 70131-75211

REEL, ROPE
(Superseded to A520000150)

$12.99

$

Usually ships in 2-4 days

0

13

Echo 20024-75220

PAWL, STARTER
(Superseded to A514000080)

$3.49

$

In Stock, Qty 8

0

14

Echo 20024-75230

SPRING, RETURN
(Superseded to V452000520)

$3.49

$

In Stock, only 2 left!

0

15

Echo 20024-75240

RING, RETAINING
(Superseded to V583000140)

$0.99

$

In Stock, Qty 6

0

16

Echo 20000-76210

NUT - 8
(Superseded to V265000170)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 20020-76111

GASKET
(Superseded to V105000030)

$1.99

$

In Stock, Qty 7

0

18

Echo 11022-04160

SCREW - 4X16
(Superseded to V202000580)

$0.99

$

In Stock, Qty 6

0

19

Echo 11022-04200

SCREW - 4X20
(Superseded to V202000430)

$0.99

$

In Stock, only 2 left!

0

20

Echo 19420-00027

LABEL - MODEL
(Superseded to X504002770)

$2.49

$

In Stock, only 2 left!

0
