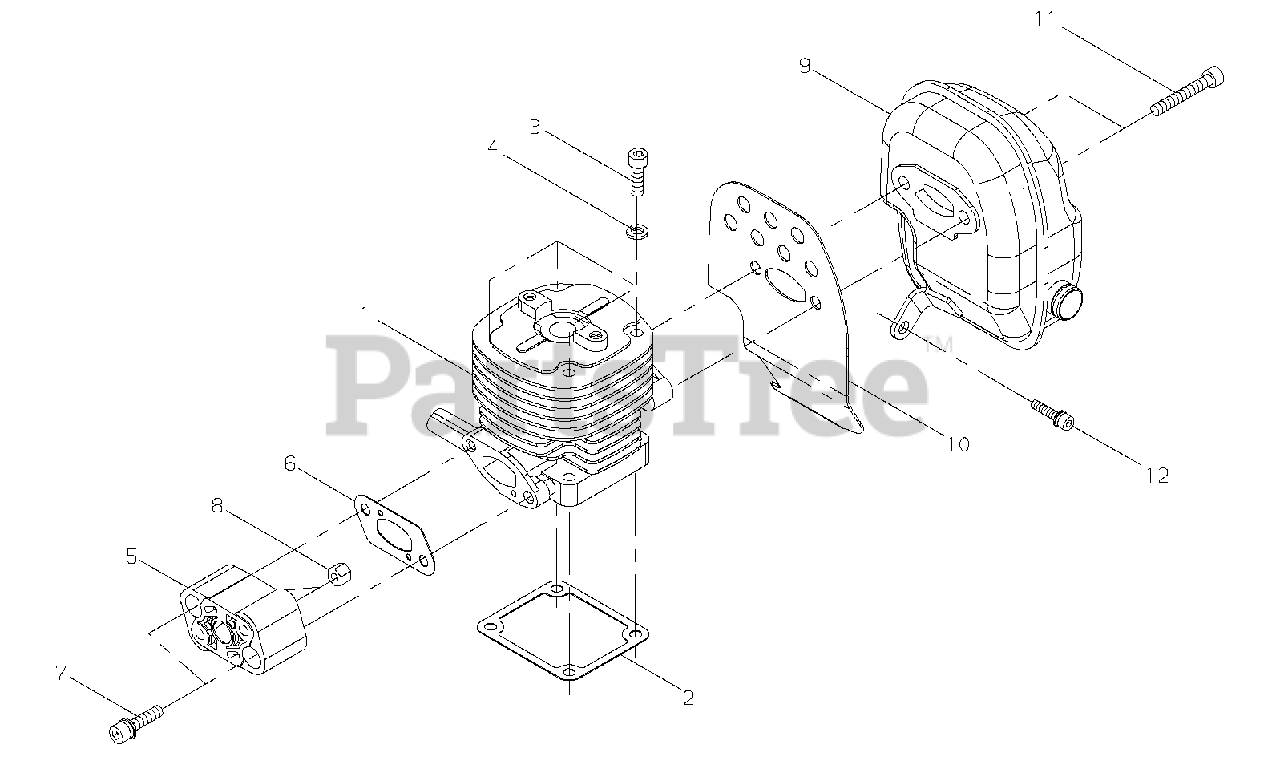

C 35 LA - Shindaiwa Brush Cutter (Original Version) Cylinder, Muffler Parts Diagram

Brush Cutter

Cylinder, Muffler Parts Diagram

  • Title
1

Echo 70196-12110

CYLINDER
(Superseded to A130001370)

$118.99

$

Usually ships in 2-4 days

0

2

Echo 20010-12121

GASKET, CYLINDER
(Superseded to V100000470)

$1.99

$

In Stock, Qty 5

0

3

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

4

Echo 01600-05131

LOCKWASHER - 5
(Superseded to 90060500005)

$0.99

$

In Stock, Qty 10

0

5

Echo 20011-12212

INSULATOR
(Superseded to A200000660)

$17.99

$

Usually ships in 2-4 days

0

6

Echo 20011-12221

GASKET
(Superseded to V103000950)

$0.99

$

In Stock, Qty 8

0

7

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 13

0

9

Echo 62104-15110

MUFFLER
(Superseded to A300001130)

$43.99

$

Usually ships in 2-4 days

0

10

Echo 62104-15210

GASKET
(Superseded to V104001340)

$7.49

$

Usually ships in 2-4 days

0

11

Echo 01020-06250

SCREW - 6X25
(Superseded to 90010506025)

$1.49

$

In Stock, only 4 left!

0

12

Echo 11024-05120

SCREW - 5X12
(Superseded to V203000820)

$0.99

$

In Stock, Qty 9

0
