C 35 LA - Shindaiwa Brush Cutter (Original Version) Clutch, Crankshaft, Piston Parts Diagram

Brush Cutter

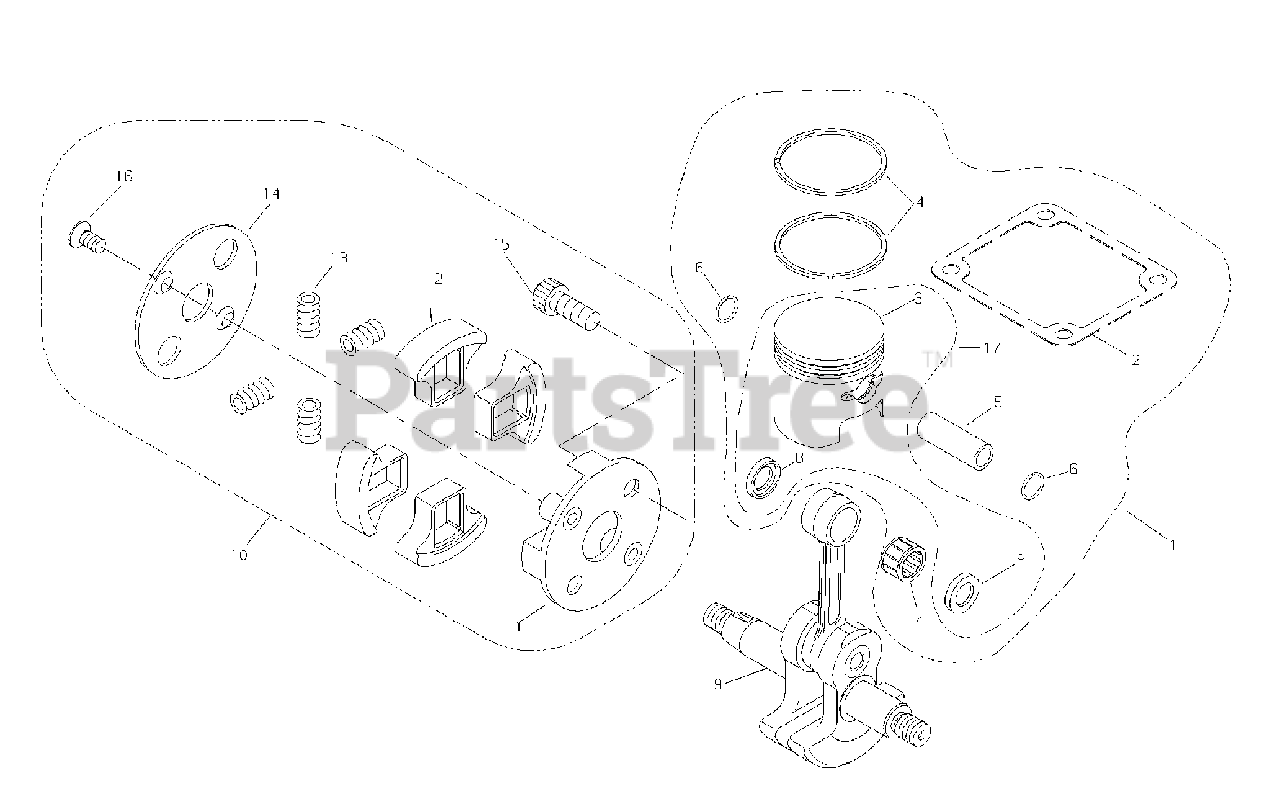

Clutch, Crankshaft, Piston Parts Diagram

  • Title
1

Echo 72051-98011

PISTON KIT
(Superseded to P021031560)

$69.99

$

Usually ships in 2-4 days

0

17

Echo 72051-98310

PISTON SET
(Superseded to P021031570)

$43.99

$

Usually ships in 2-4 days

0

3

Echo 20010-41111

PISTON
(Superseded to A100000700)

$41.99

$

Usually ships in 2-4 days

0

8

Echo 70200-41341

SPACER, PISTON
(Superseded to V307000220)

$6.49

$

Usually ships in 2-4 days

0

2

Echo 20010-12121

GASKET, CYLINDER
(Superseded to V100000470)

$1.99

$

In Stock, Qty 5

0

4

Echo 20010-41210

RING, PISTON
(Superseded to A101000380)

$4.99

$

Usually ships in 2-4 days

0

5

Echo 20010-41310

PIN, PISTON
(Superseded to V608000020)

$4.99

$

Usually ships in 2-4 days

0

6

Echo 22100-41230

RING, RETAINING
(Superseded to V580000110)

$0.99

$

In Stock, only 1 left!

0

7

Echo 20010-41330

BEARING, NEEDLE
(Superseded to V555000090)

$9.49

$

In Stock, only 3 left!

0

9

Echo 20010-42002

CRANKSHAFT ASSY
(Superseded to A011000860)

$65.99

$

Usually ships in 2-4 days

0

10

Echo 70210-51100

CLUTCH ASSY
(Superseded to A056000450)

$55.99

$

In Stock, only 1 left!

0

11

Echo 20020-51112

HUB, CLUTCH

$

$

Not available

12

Echo 20020-51121

SHOE, CLUTCH
(Superseded to A555000130)

$4.49

$

In Stock, only 1 left!

0

13

Echo 20020-51131

SPRING, CLUTCH
(Superseded to A566000150)

$1.99

$

In Stock, only 1 left!

0

14

Echo 20020-51140

PLATE, CLUTCH
(Superseded to A551000120)

$6.99

$

Usually ships in 2-4 days

0

15

Echo 20020-51150

BOLT, CLUTCH
(Superseded to A557000120)

$2.49

$

In Stock, only 2 left!

0

16

Echo 70210-51160

SCREW
(Superseded to V203000880)

$0.99

$

In Stock, Qty 9

0
