C 344 - Shindaiwa Brush Cutter (SN: T74714001001 - T74714999999) FUEL SYSTEM Parts Diagram

Brush Cutter

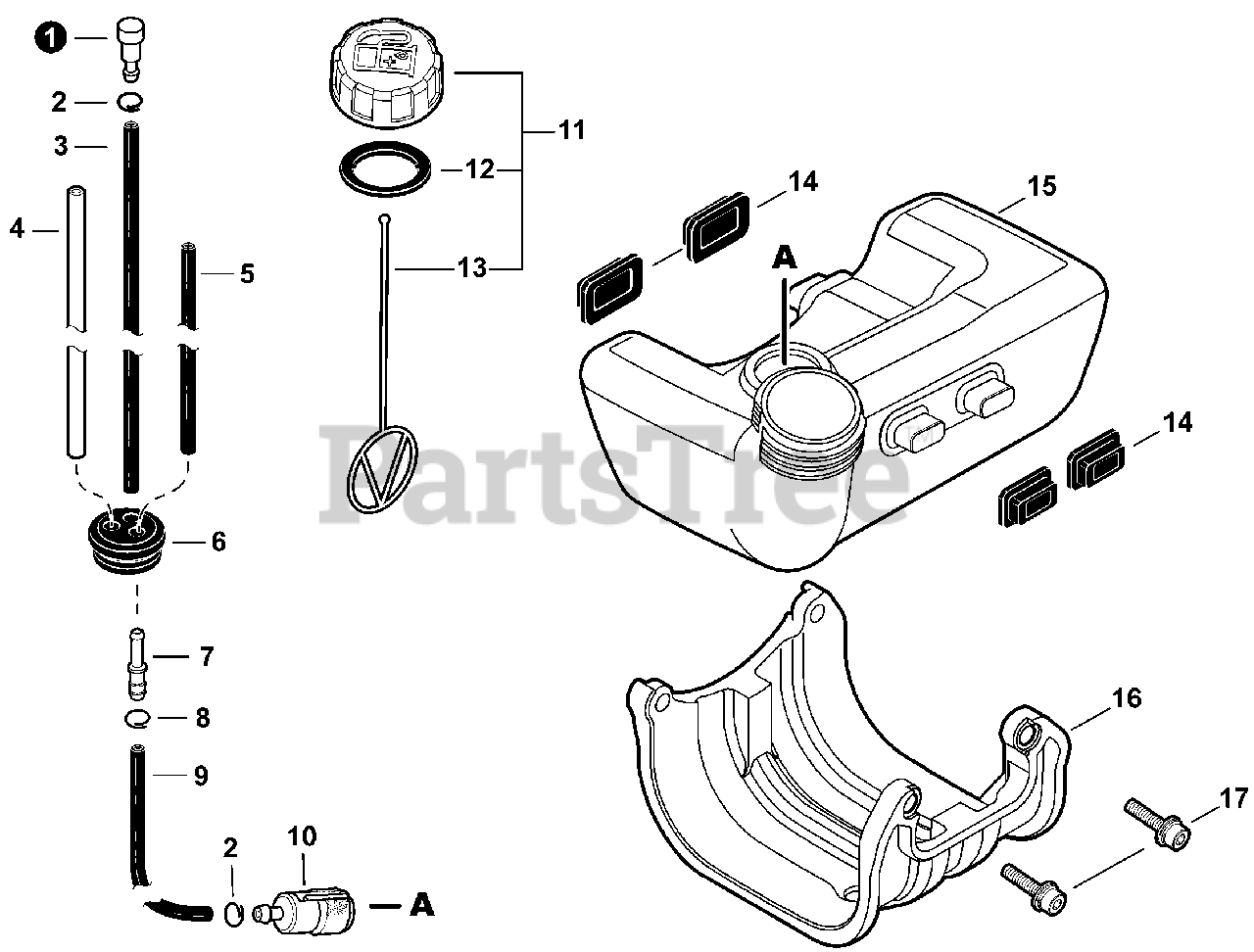

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000050

VENT ASSY

$8.49

$

In Stock, only 2 left!

0

2

Echo V490000500

CLIP 6

$0.99

$

In Stock, Qty 20+

0

3

Echo V471001500

PIPE 3×6×80 BLACK
(Superseded to V471001501)

$1.49

$

Usually ships in 2-4 days

0

4

Echo 13271750430

PIPE, FUEL RETURN 3×6×70

$1.99

$

In Stock, Qty 20+

0

5

Echo V471004510

PIPE 3×6×50 BLACK

$3.99

$

Usually ships in 2-4 days

0

6

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE 5×3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

9

Echo V470001970

PIPE, FUEL 3×6×120 BLACK

$5.99

$

In Stock, only 1 left!

0

10

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

11

Echo P021041930

CAP ASSY, FUEL

Note: Includes Items 12-13

$5.99

$

In Stock, only 4 left!

0

12

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

13

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

14

Echo V420004920

CUSHION, FUEL TANK

$4.49

$

Usually ships in 2-4 days

0

15

Echo A350002101

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

16

Echo A175000220

GUARD, PLASTIC FUEL TANK

$12.99

$

In Stock, only 1 left!

0

17

Echo V203000800

BOLT M5×20

$0.99

$

In Stock, only 1 left!

0
