C 344 - Shindaiwa Brush Cutter (SN: T15012001001 - T15012999999) CONTROL HANDLE Parts Diagram

Brush Cutter

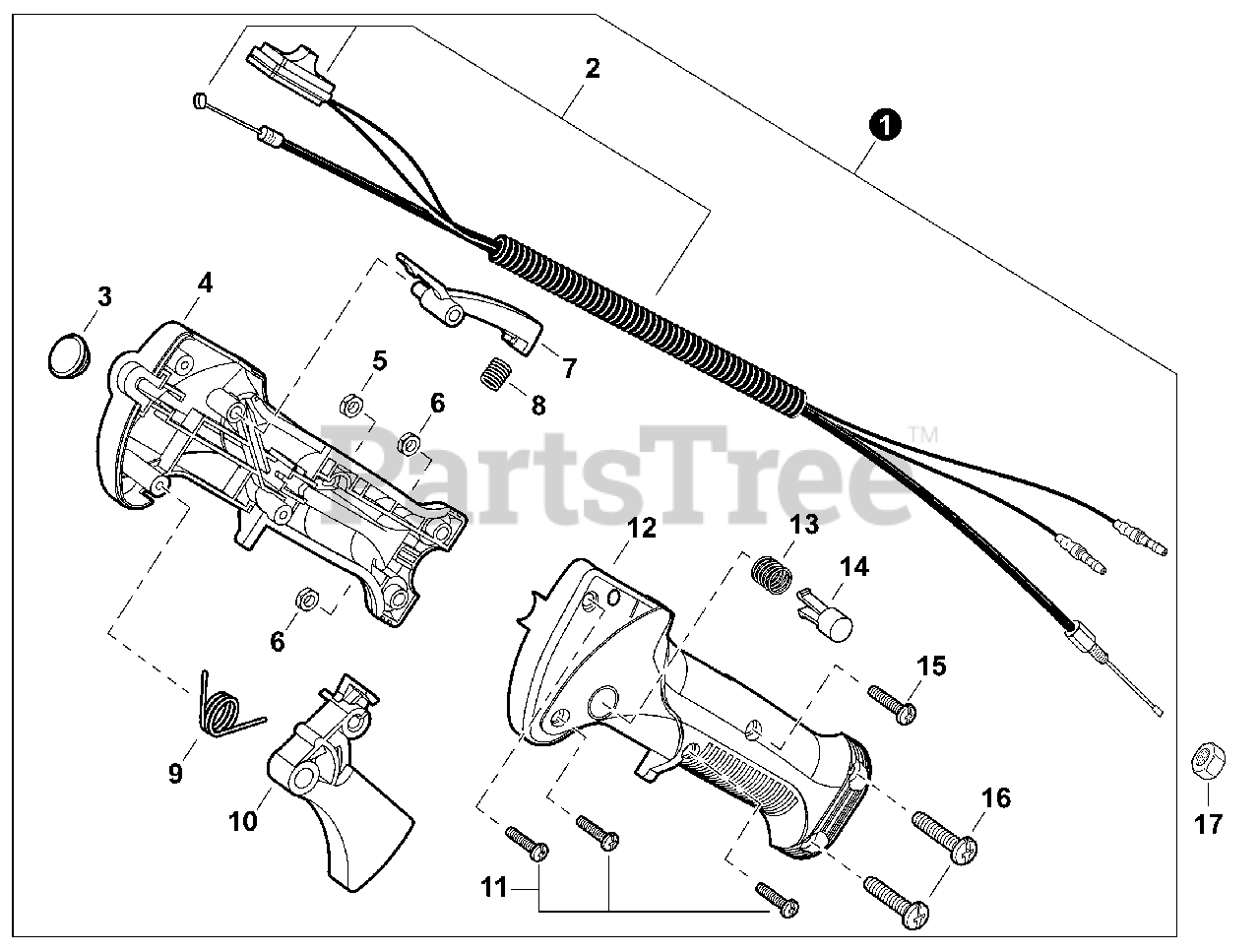

CONTROL HANDLE Parts Diagram

  • Title

1

Echo C044001220

CONTROL HANDLE ASSY
(Superseded to C044001221)

Note: Includes ITEMS 2-16

$52.99

$

In Stock, only 2 left!

0

2

Echo P022025760

CABLE ASSY, CONTROL

$38.99

$

Usually ships in 2-4 days

0

3

Echo V162000410

PLUG, RUBBER

$2.49

$

In Stock, only 4 left!

0

4

Echo P022025740

CONTROL HANDLE - RIGHT

$11.99

$

Usually ships in 2-4 days

0

5

Echo V262000100

NUT M4

$0.99

$

In Stock, Qty 20+

0

6

Echo 9201705000

NUT M5

$0.99

$

In Stock, Qty 13

0

7

Echo C460000240

LOCKOUT, THROTTLE
(Superseded to C460000241)

$1.99

$

In Stock, only 1 left!

0

8

Echo V450001020

SPRING, COMPRESSION

$0.99

$

In Stock, Qty 9

0

9

Echo V452000690

SPRING, TORSION

$0.99

$

In Stock, Qty 9

0

10

Echo C450000580

TRIGGER, THROTTLE
(Superseded to C450000581)

$3.99

$

Usually ships in 2-4 days

0

11

Echo V252000360

SCREW, TAPPING 4×16

$0.99

$

Usually ships in 2-4 days

0

12

Echo P022025750

CONTROL HANDLE - LEFT

$11.99

$

Usually ships in 2-4 days

0

13

Echo V450001010

SPRING, COMPRESSION

$0.99

$

In Stock, Qty 6

0

14

Echo C461000080

BUTTON, THROTTLE LOCK

$1.99

$

Usually ships in 2-4 days

0

15

Echo V252000090

SCREW M4×23

$0.99

$

In Stock, Qty 10

0

16

Echo V253000580

SCREW M5×20

$0.99

$

In Stock, Qty 10

0

17

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 1 left!

0
