C 3203 (82467) - Snapper 20" Snow Thrower Control Panel, Lower Handle Parts Diagram

20" Snow Thrower

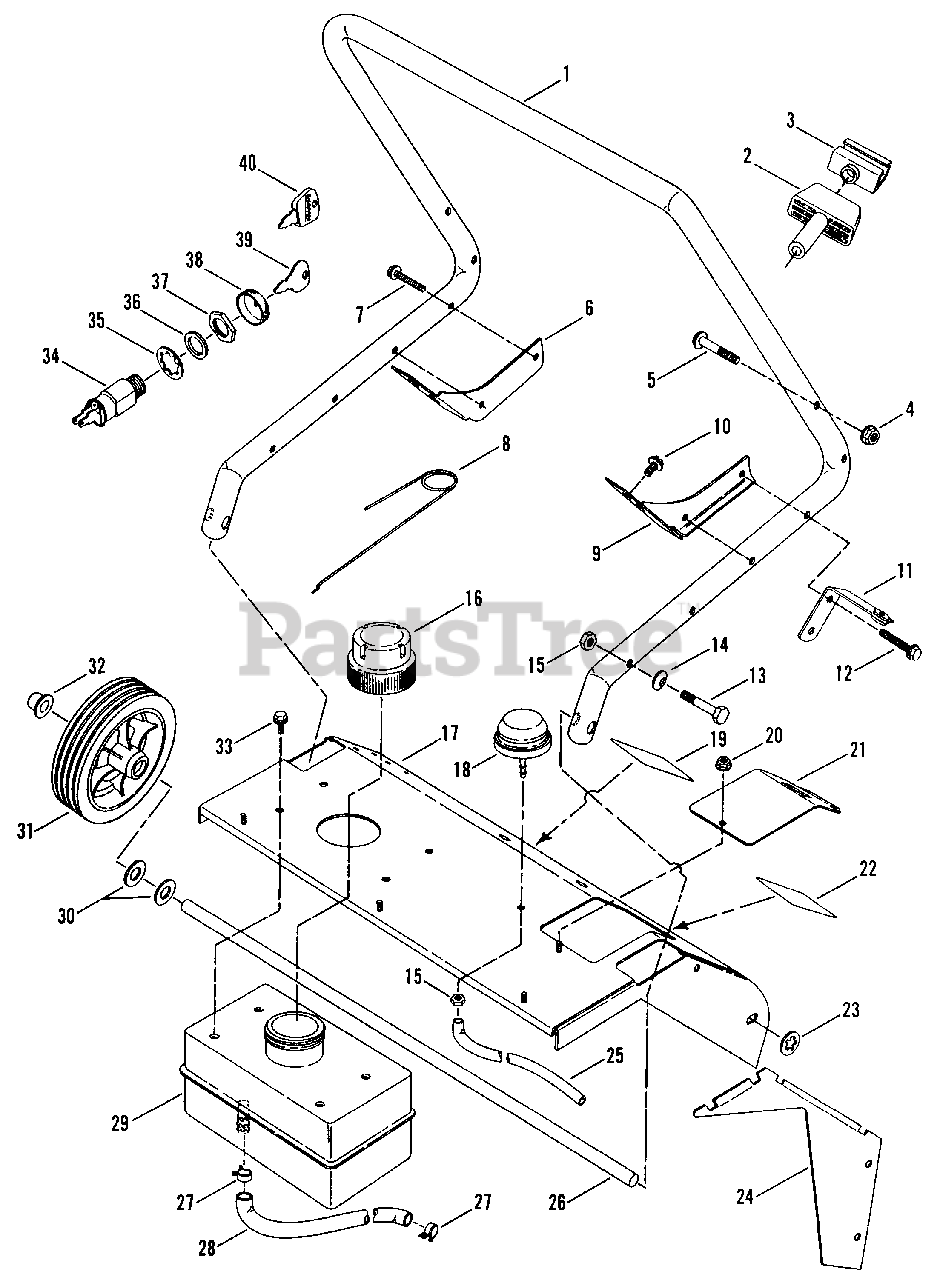

Control Panel, Lower Handle Parts Diagram

  • Title

1

Snapper 7036165

HANDLE, Lower
(Superseded to 7036165YP)

$68.99

$

Usually ships in 2-12 days

0

2

Snapper 7028201

HANDLE, Rope Starter

$

$

Not available

3

Snapper 7028202

INSERT, Rope Start Handle
(Superseded to 7028202SM)

$2.49

$

Usually ships in 2-12 days

0

4

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, Qty 6

0

5

Snapper 7090947

BOLT, 1/4-20 x 1 3/8" Square Neck Carriage, Grade 5
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 5

0

6

Snapper 7038109

BRACE, Handle (Right Hand)
(Superseded to 7038109YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 7090911

SCREW, 1/4-20 x 1-1/4" Hex Washer Self-Tap

$

$

Not available

8

Snapper 7046473

CONTROL, Choke
(Superseded to 7046473YP)

Note: Was 14918

$22.99

$

Usually ships in 2-12 days

0

9

Snapper 7038110

BRACE, Handle (Left Hand)
(Superseded to 7038110YP)

$23.99

$

Usually ships in 2-12 days

0

10

Snapper 7090981

SCREW, #10-32 x 1/4" Hex Washer Self-Tap
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

11

Snapper 7051560

ASSEMBLY, Bracket & Bushing
(Superseded to 7051560YP)

$23.99

$

Usually ships in 2-12 days

0

12

Snapper 7090896

SCREW, 1/4-20 x 1-3/8" Hex Washer Self-Tap
(Superseded to 7090896YP)

$3.49

$

In Stock, only 3 left!

0

13

Snapper 7090825

SCREW, 1/4-20 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7014645

WASHER, 1/4" Curved

$

$

Not available

15

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

Note: Was 91099

$

$

Not available

16

Snapper 7014636

CAP, Fuel Tank
(Superseded to 7014636YP)

$7.49

$

Usually ships in 2-12 days

0

17

Snapper 7049732

WELDMENT, Handle/Panel
(Superseded to 7049732YP)

$216.99

$

Usually ships in 2-12 days

0

18

Snapper 7014638

PRIMER, Fuel
(Superseded to 7014638SM)

$

$

Not available

19

Snapper 7028305

DECAL, Model
(Superseded to 7028305YP)

$7.99

$

Usually ships in 2-12 days

0

20

Snapper 7091079

NUT, #10-24 Hex Flange Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7028062

COVER, Access Hole

$

$

Not available

22

Snapper 7028308

DECAL, Control Panel

$

$

Not available

23

Snapper 7012485

RETAINER, 1/4" Bolt
(Superseded to 7012485YP)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7032943

BAFFLE, Left Hand
(Superseded to 7032943YP)

$22.99

$

Usually ships in 2-12 days

0

25

Snapper 7014639

HOSE, Primer
(Superseded to 7014639SM)

$7.99

$

Usually ships in 2-12 days

0

26

Snapper 7032366

AXLE
(Superseded to 7032366YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

28

Snapper 7032365

LINE, Fuel
(Superseded to 7032365YP)

$4.49

$

In Stock, only 1 left!

0

29

Snapper 7019736

TANK, Fuel

$

$

Not available

30

Snapper 7091149

WASHER, 3/8" Flat
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

31

Snapper 7027446

WHEEL

$

$

Currently unavailable

32

Snapper 7091135

NUT, 3/8 Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7091081

SCREW, 1/4-15X3/4, Self-Tapping, BZ
(Superseded to 7091081SM)

$4.49

$

In Stock, Qty 12

0

34

Snapper 7017817

SWITCH, Ignition (2 pole)
(Superseded to 7017817YP)

Note: Was 15211 (Includes items 35 & 37)

$31.99

$

In Stock, only 1 left!

0

35

Snapper 7091546

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, only 4 left!

0

36

Snapper 7016132

SPACER
(Superseded to 7016132SM)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 7012685

NUT, 5/8-32 Hex (Special)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

39

Snapper 7073406

KEY, Ignition
(Superseded to 1717163SM)

Note: Was 23507

$8.99

$

In Stock, Qty 20+

0

40

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0
