C 302 - Shindaiwa Brush Cutter (SN: U42229001001 - U42229999999) THROTTLE CONTROL Parts Diagram

Brush Cutter

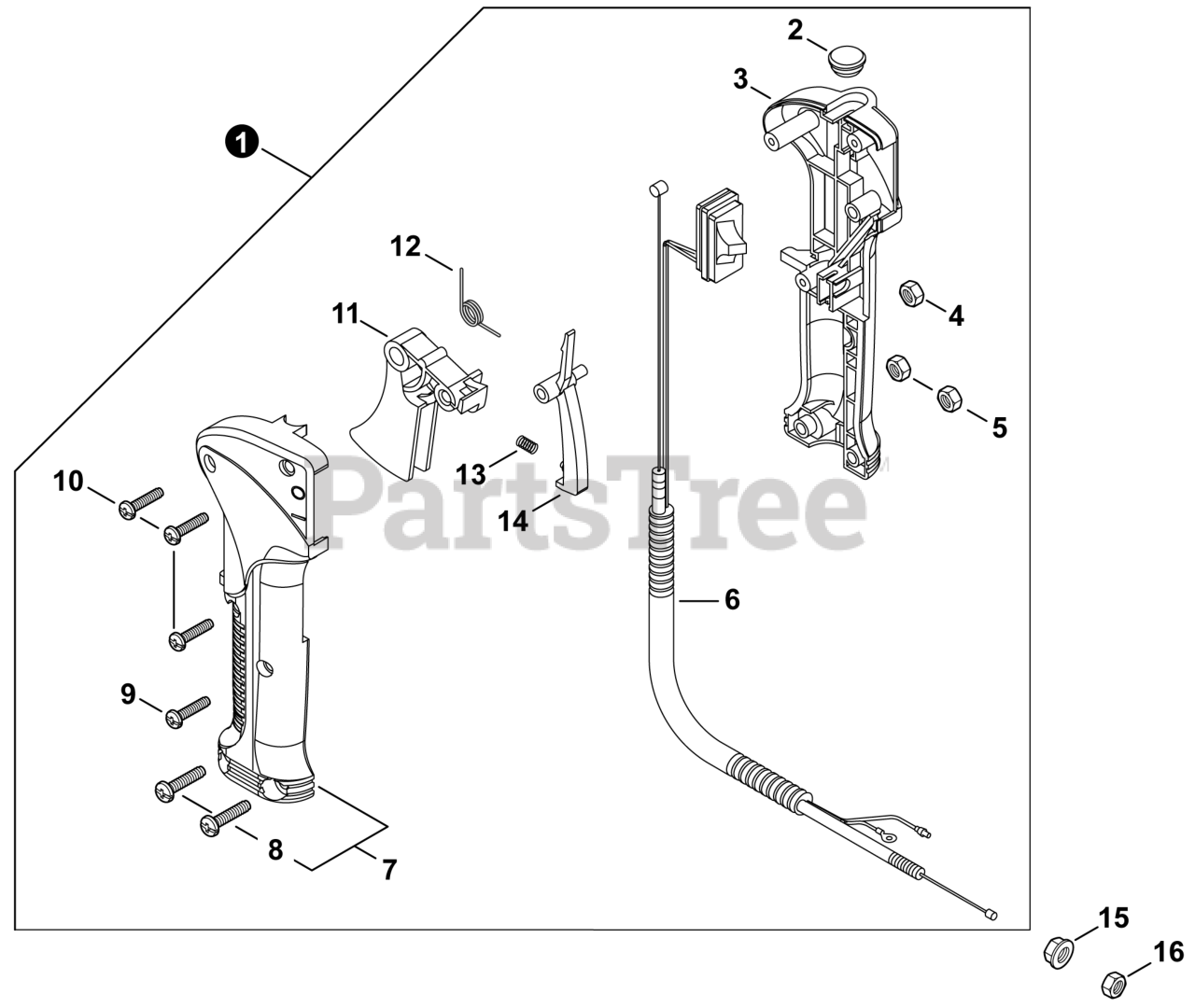

THROTTLE CONTROL Parts Diagram

  • Title

1

Echo C044001650

THROTTLE CONTROL ASSY

Note: Includes Items 2-14

$59.99

$

Usually ships in 2-4 days

0

2

Echo V162000410

PLUG, RUBBER

$2.49

$

In Stock, only 4 left!

0

3

Echo C412000430

CONTROL HANDLE - RIGHT

$19.99

$

In Stock, only 1 left!

0

4

Echo V262000100

NUT M4

$0.99

$

In Stock, Qty 20+

0

5

Echo 9201705000

NUT M5

$0.99

$

In Stock, Qty 13

0

6

Echo P022051120

CABLE ASSY, CONTROL

$34.99

$

Usually ships in 2-4 days

0

7

Echo P021044940

CONTROL HANDLE KIT

Note: Includes Item 8

$20.99

$

Usually ships in 2-4 days

0

8

Echo 9133505022

SCREW M5x22

$0.99

$

In Stock, Qty 9

0

9

Echo V252000090

SCREW M4x23

$0.99

$

In Stock, Qty 10

0

10

Echo V252000360

SCREW, TAPPING 4x16

$0.99

$

Usually ships in 2-4 days

0

11

Echo C450000581

TRIGGER, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

12

Echo V452000690

SPRING, TORSION

$0.99

$

In Stock, Qty 9

0

13

Echo V450001020

SPRING, COMPRESSION

$0.99

$

In Stock, Qty 9

0

14

Echo C460000241

LOCKOUT, THROTTLE

$1.99

$

In Stock, only 1 left!

0

15

Echo 90051800006

NUT, FLANGE M6

$1.49

$

In Stock, Qty 8

0

16

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 3 left!

0
